CHARGE Installation & Owner’s Guide | 15
After a day on the water, simply plug the CHARGE unit into a power outlet to recharge all of your boat’s batteries.
NOTE: If AC power is interrupted and restored it can take up to 2 minutes before batteries start charging
again.
• Trolling Motor Batteries:
The CHARGE will first allocate all power to recharge trolling motor batteries.
• Engine Battery:
When trolling motor batteries approach full charge, charging power will gradually shift to the engine
battery. The CHARGE™ will fully recharge the engine battery.
• Full-Charge:
After all batteries have been fully charged, all of the LED’s on the unit will become solid green. At this
point, the unit will enter into Maintenance Mode.
• Maintenance Mode:
When all batteries have been fully charged, the system will continue to drip power into the batteries to
keep them at full charge and will balance power between multiple trolling motor batteries.
• Charge Monitoring:
Charging can be monitored on any Android or iOS device using our C-Monster App.

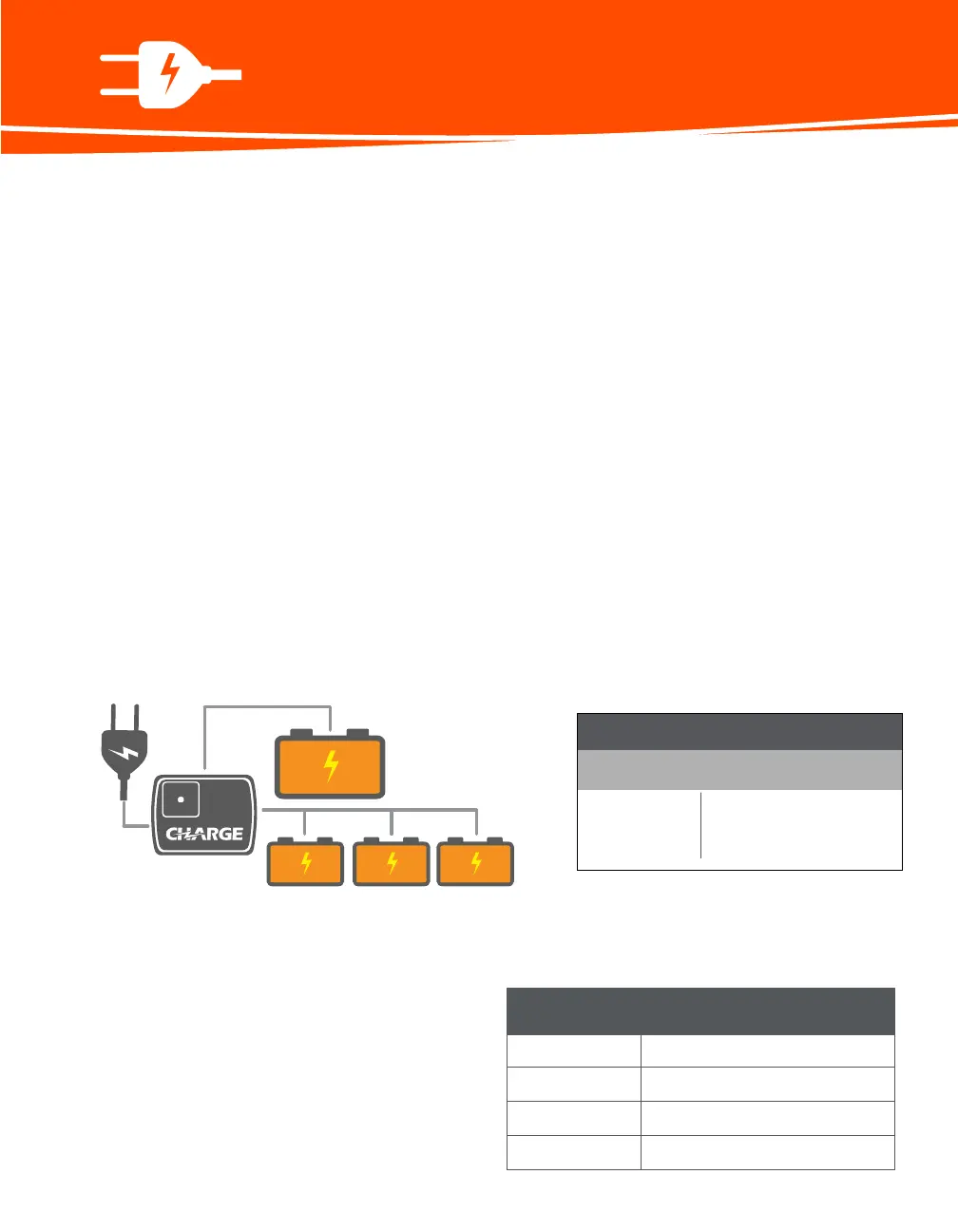

AC CHARGING
Cranking Battery
Engine Battery
Trolling Motor Batteries
12v
Up to
40 amps
24v
Up to
20 amps
36v
Up to
13.5amps
-or-
Amps Per Battery
Lead-Acid -4°F (-20°C) to 122°F (50°C)
AGM -4°F (-20°C) to 122°F (50°C)
Gel -4°F (-20°C) to 122°F (50°C)
Lithium 32°F (0°C) to 113°F (45°C)
Battery Type
Effective Temperature Range
Engine Battery
(Charges Last)
Trolling Motor Batteries
(Charge First)
AC Cable
(to power outlet)
IMPORTANT: The chart to the right shows shutoff
temperatures for different batteries
wired to CHARGE™. This applies to
all CHARGE™ functions (AC, Fishing
Mode, and Alternator Charging).
To Next Page
