Power Systems PS2030PM - Page 15

Istruzioni per l’uso e manutenzione
Cod. OQ7.5ARG114 – GB
Emiss. 19-01-11 Rev. 0 - Agg. /
15
POWER SYSTEM SRL
Via dell’Emigrante, 11/13 - 36040 Brendola (VI) Itali
a
Key:
1) Air output
2) Left side intake prefilter
3) Right side intake prefilter
4) Isolating switch
5) Control board
6) Cable entry
7) Front panel handle
8) Front panel handle
9) Electric fans

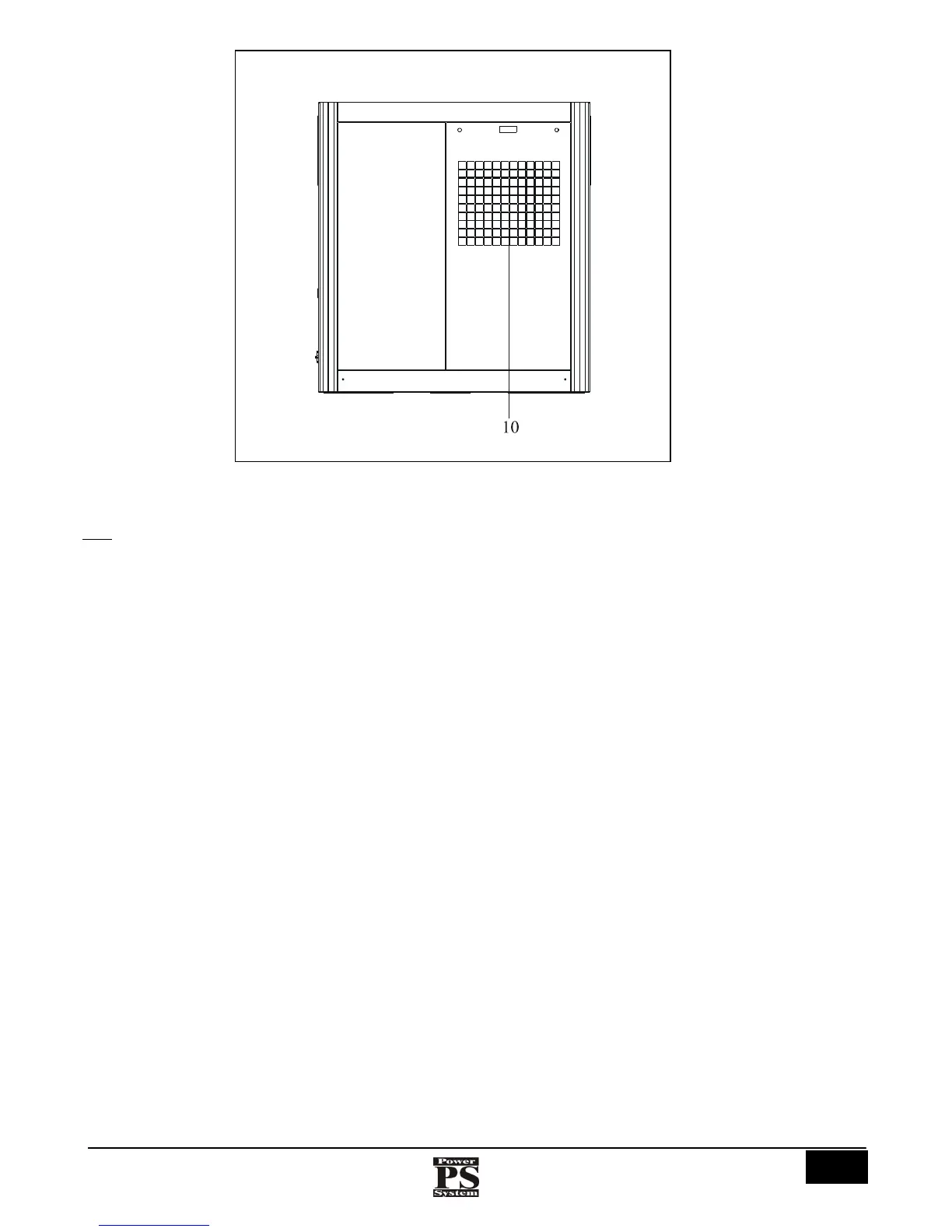

10) Dryer cooling air expulsion (if present)
Fig.3
Rear
