Istruzioni per l’uso e manutenzione
Cod. OQ7.5ARG114 – GB
Emiss. 19-01-11 Rev. 0 - Agg. /
21
POWER SYSTEM SRL
Via dell’Emigrante, 11/13 - 36040 Brendola (VI) Itali
a
10 INSTALLATION

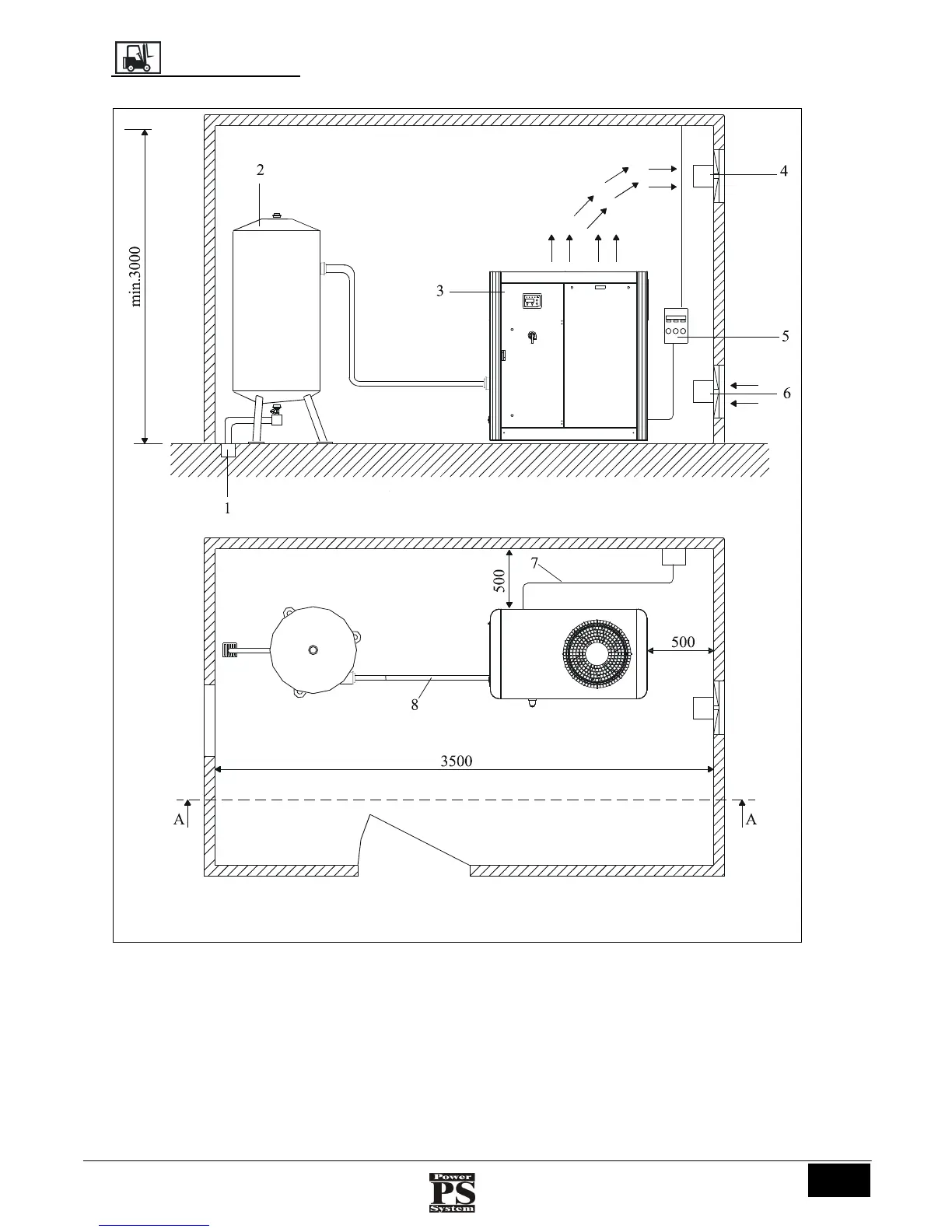

The dimensions in the figure are in mm.
Key fig. 6:
1) Auxiliary reservoir condensate drain
2) Auxiliary reservoir (customer)
3) Compressor
4) Air expulsion
5) Main electric switch
6) Air intake
7) Electric power supply duct
8) Pneumatic system connecting pipe
Fig.6
Overhead view
View A-A
