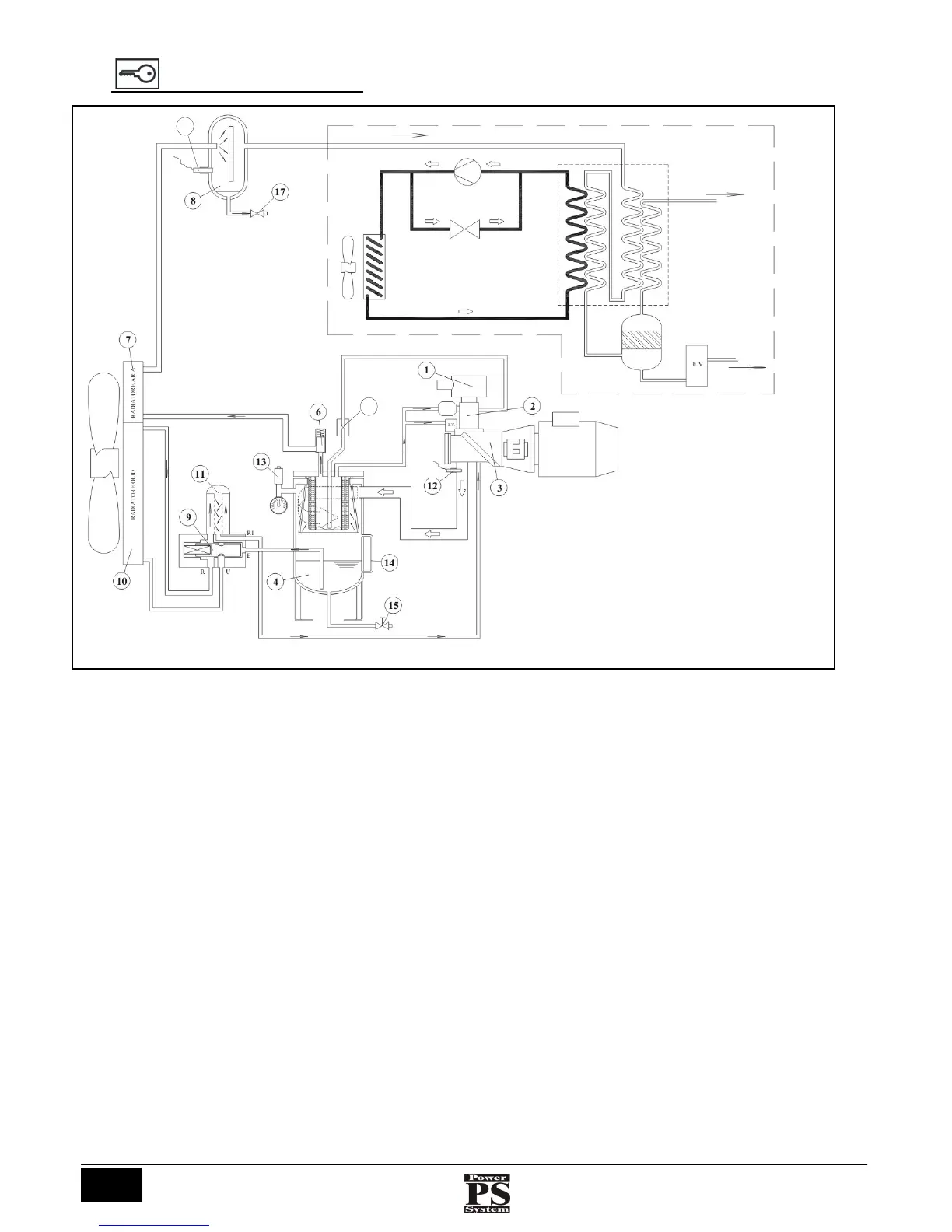

21 HYDRAULIC DIAGRAM
Ref. Fig. 10:
1- Suction air filter
2- Suction valve
3- Screw
4- Air / oil separator
5- Calibrated nozzle
6- Minimum valve
7- Air / Air exchanger
8- Condensate separator (if present)
9- Thermostatic valve
10- Air / oil radiator
11- Oil filter
12- Temperature sensor
13- Safety valve
14- Oil level indicator
15- Oil drain valve
16- Pressure transducer
17- Condensate discharge electrovalve (if present)
5
16
Fig.10
