The high-point anchor is an alternative to the cable retractor that is not provided by PowerFlex. This
simple assembly can be mounted on a wall or onto a pedestal.

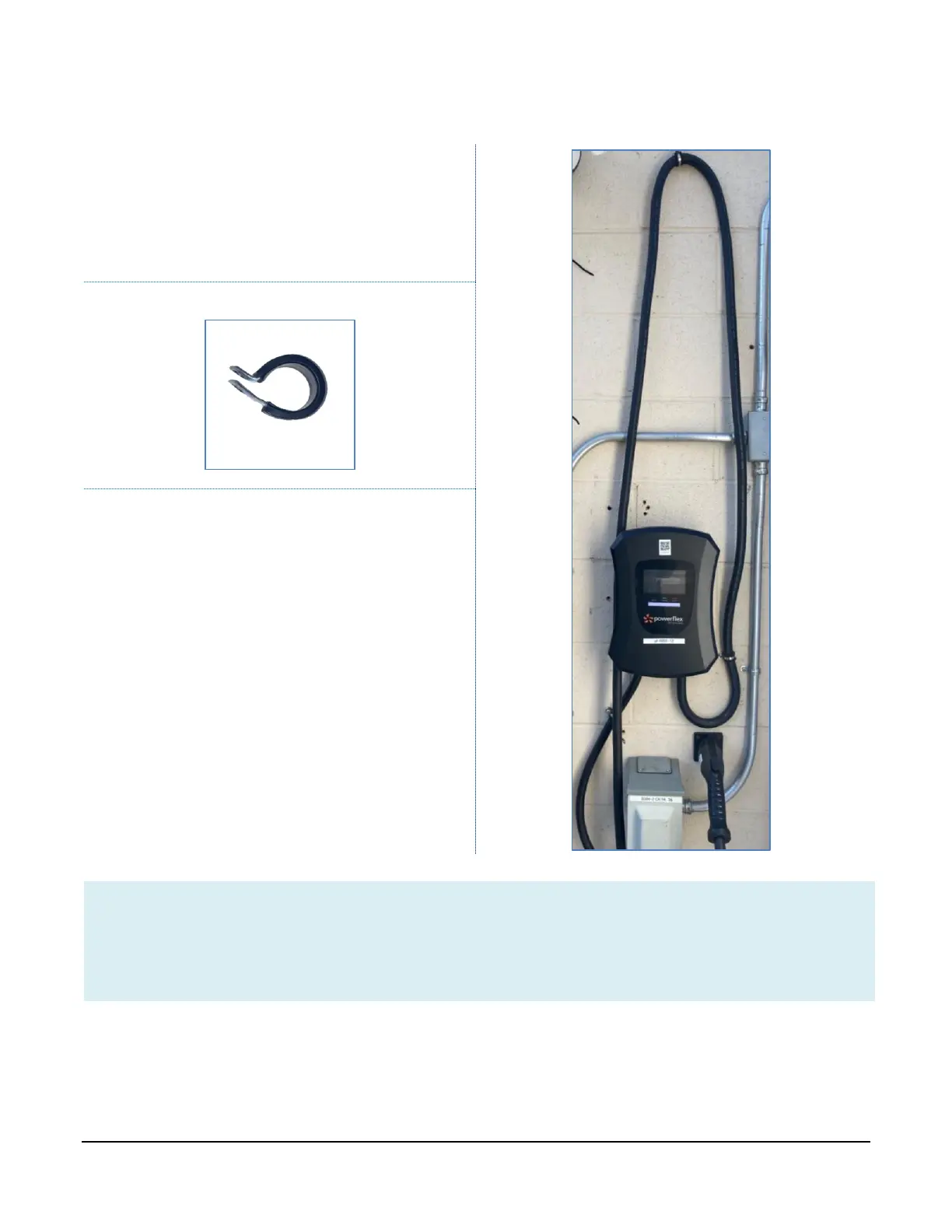

1. Using a ¾" metal cable clamp with
rubberized cushions, route the charging cable
2-3 FT above the charger. Make sure there
are no twists in the cable.
2. Install a cable clamp to hold the cable.
3. Use a ¼" diameter screw with a wall anchor
as appropriate for the wall material to secure
the cable clamp to the wall.
Before proceeding to the next step …
1. Confirm that the PF-JT48 charger is securely mounted to a wall or pedestal.
2. Perform a quick verification that all cables to the charger enclosure are fully connected.
