Installation notes:

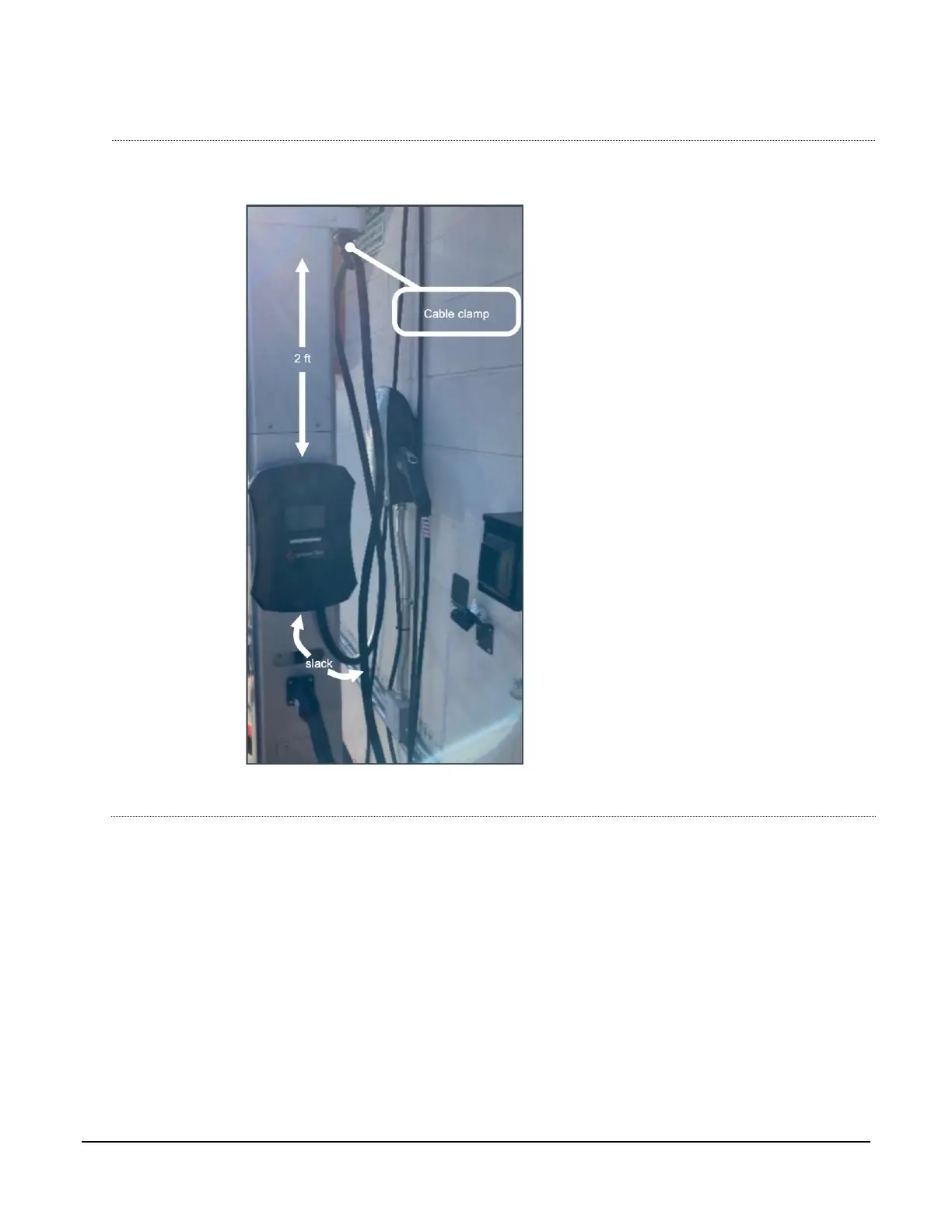

▪ Place the cable clamp along the charging cable, at least 2 feet to the top of the charger. Also,
Give the cable slack to the bottom of the charger as shown in the picture:
Ensure the cable is not twisted between the
charger and the cable clamp.
