To mount the retractor to the wall or pedestal:

1. Identify the best location for the cable retractor. We recommend 2-3 FT above the mounted

charger.

2. Place the retractor on the surface, use a level to make sure it is straight, and mark the four screw

locations on the wall or pedestal.

3. Place the retractor to the side. Using a 3/8" drill bit, drill holes at the four marked screw locations.

4. Remove the nut and washer from the wall-mounting nuts and bolts.

5. Insert each bolt with a wall anchor in the drilled holes.

6. Place the retractor and the washers on the bolts and secure by tightening the nuts with a wrench

socket.

Note: If mounting on a pedestal, use the four short bolts to secure the cable retractor.

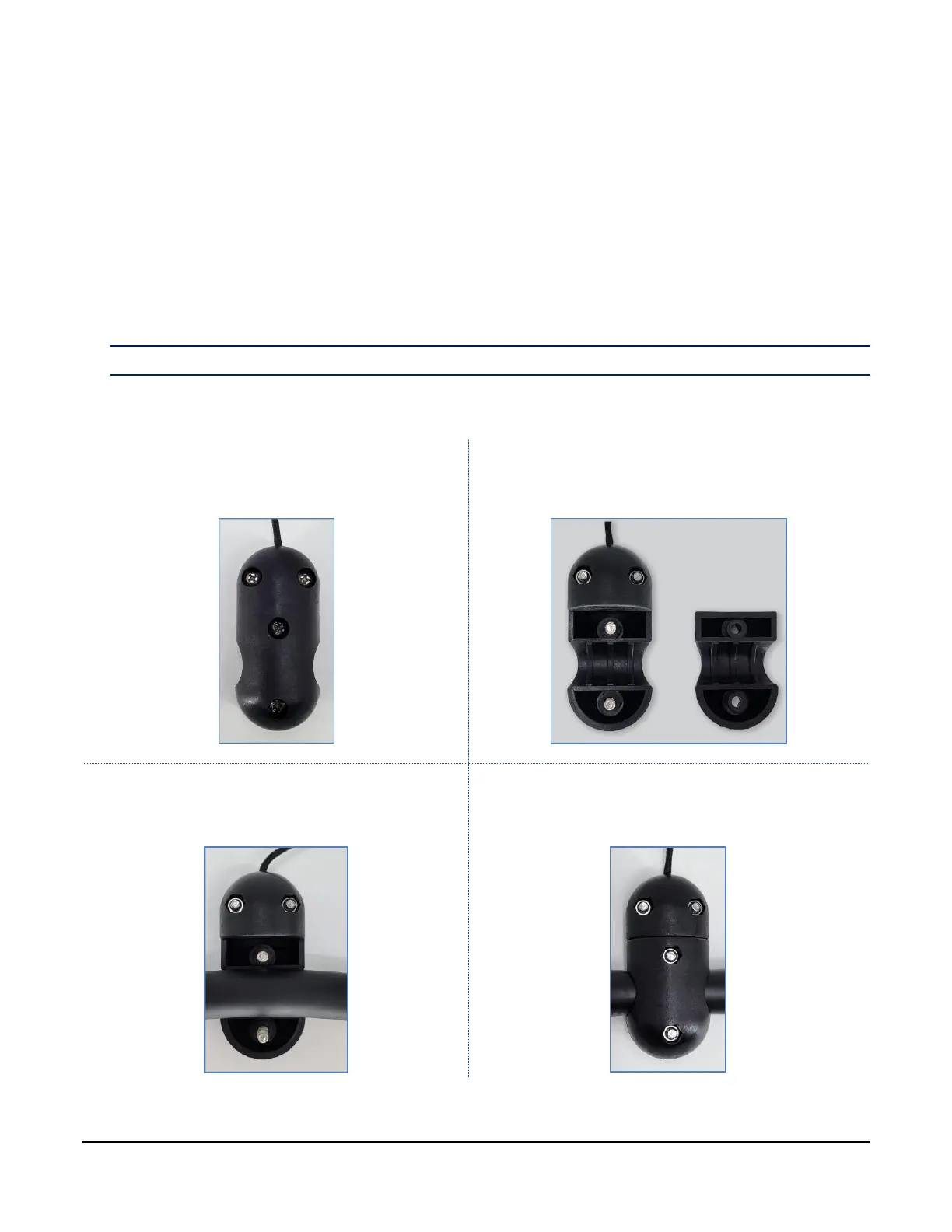

To mount the cable to the retractor:

1. Pull the cable retractor rope so that the cable

clamp touches the floor and ls firmly in

position. The cable clamp is shown below:

2. Unscrew the two screws on the retractor’s

cable clamp:

3. Insert the charging cable in the cable clamp

(both front and back view shown):

4. Put the cable clamp pieces back together and

then reinsert the nuts and bolts (back view

shown):
