PowerMate
Operation Manua
M-SERIES POWERMATE CHARGING INSTRUCTION
INSTRUCTION:
1. Provide electrical power to the Battery Charger being used.
2. De-activate the PowerMate
®
by depressing the Circuit Breaker Button located on top of the
Battery Box. The Breaker Reset Lever must pop out of the Breaker housing.
3. Insert the Charger Male Plug into the Charging Receptacle located in the Battery Box. The
charge cycle is fully automatic. The Wall Charger and the In-vehicle Electronic Charger
will indicate the charge status by LED indicators. Refer to the specific Charger documentation
4. To discontinue the charge cycle, dis-engage the Charger Male Plug from the Charging
Receptacle.
5. The PowerMate
®
can be re-activated for use by swinging the Circuit Breaker Reset Lever
back into the Circuit Breaker housing.
NOTE: The PowerMate
®
can remain on the Battery Charger at all times, ensuring a fully
charged unit when called upon. In any case, the Circuit Breaker Reset Lever should always be
in the off (extended) position when the PowerMate
®
is not in use.

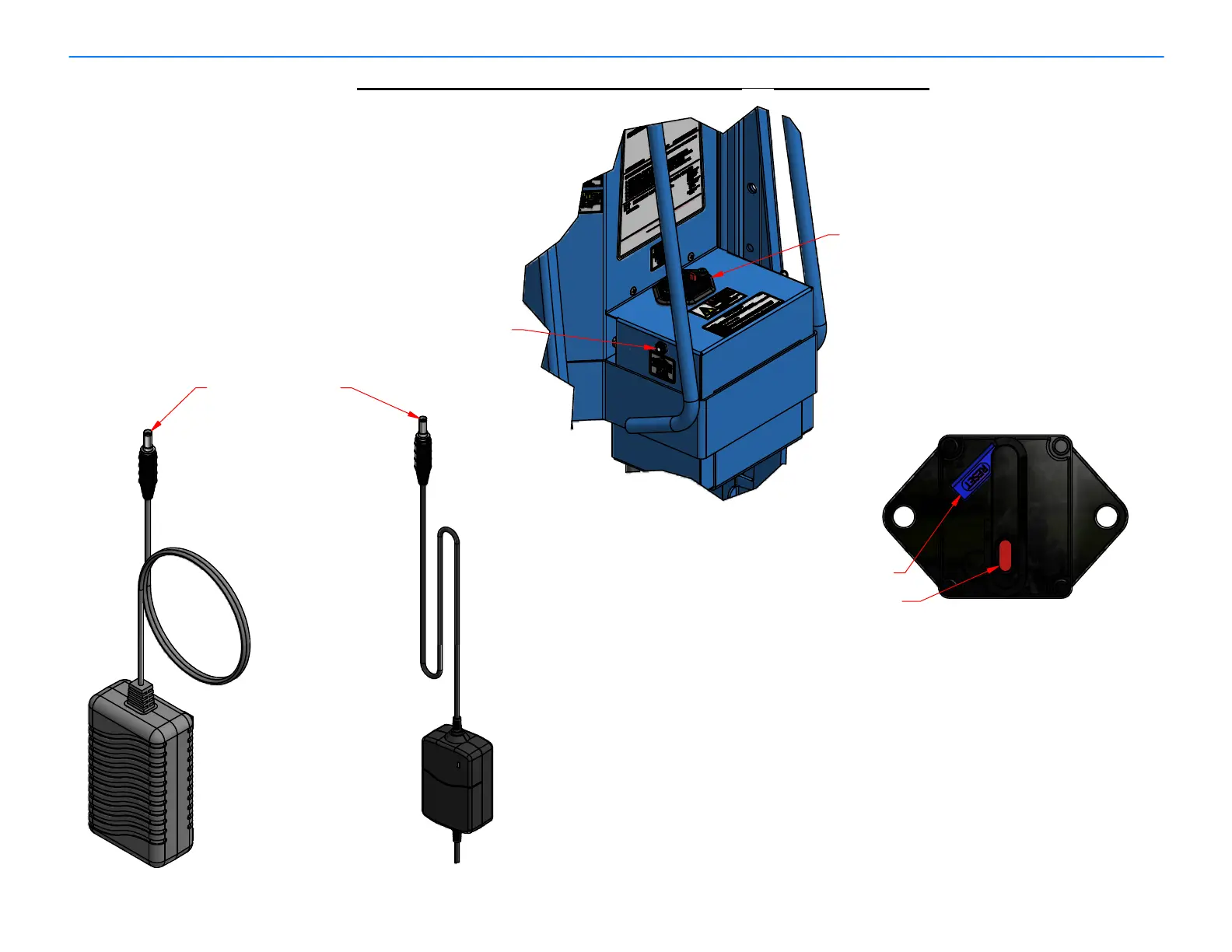

Wall Charger
400211B
In-Vehicle
Electronic
Charger
400217C/8C
CIRCUIT BREAKER
(shown in off position)
PN 010360 Rev.G
Eng. 04/ 18/ 18
Circuit Breaker Button
Breaker Reset Lever
3.01
Charger Male Plug
Charging Receptacle
Circuit Breaker
To Next Page
