POWERMATE
WHEEL BRAKE INSTALLATION
PowerMate
Operation Manua

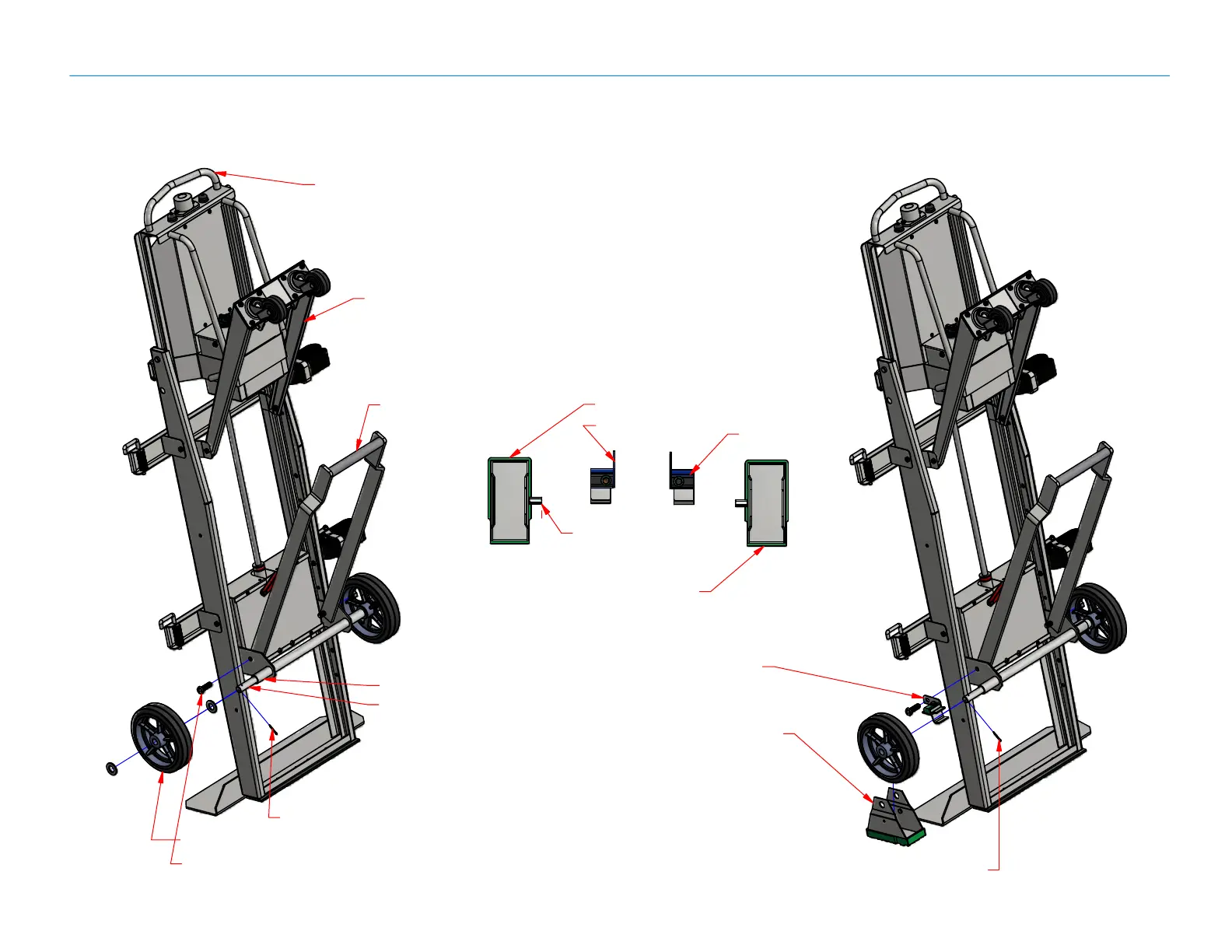

1. Extend machine approximately 24 inches.
Lean machine against a wall.
2. Raise Dolly Attachment (if
installed) up out of the way.
Hook Bar
Axle Tube
Axle
3. Remove Cotter Pin
4. Remove Wheel and two Washers.
5. Remove 1/2"Nuts and Bolts.
LH Shoe Stop
LH Shoe Brake
Rubber
Typ.
Extended Nut
Typ.
RH Shoe Brake
6. Slide Shoe Stop onto Axle Tube
and re-install 1/2"Bolt and Nut.
Tighten assembly still allowing
Hook Bar to move with friction.
7. Align Wheel into Brake and slip
onto Axle (no washers). Extended
Nut faces inwards toward machine.
8. Replace Cotter Pin.
9. Apply a little grease to the Shoe
Stop Rubber to assist the Extended
Nut on the Shoe Brake to push on
and off easily.
10. Repeat all steps for opposite side.
PN 010740 Rev.E
Assy.No. 404100
Eng. 05/ 08/ 14
7.03
