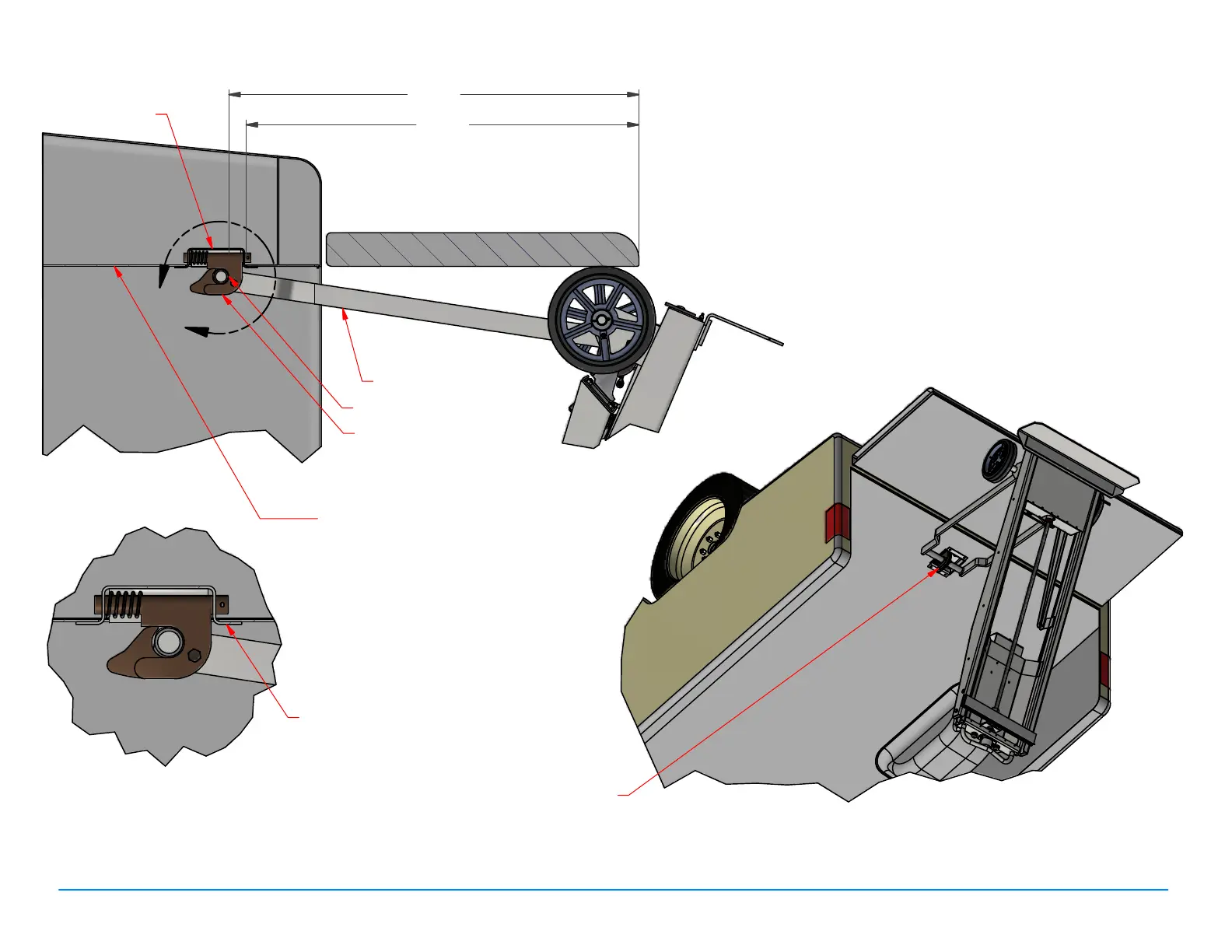

DETAIL A
HOOK BOX INSTALLATION
PowerMate
Operation Manua
1. Cut a rectangular hole in the truck floor to suit the
Hook Box. Measure back from the drop edge
(tailgate shown) 29 1/4"to the rear edge of the
cutout. Center the cutout in the vehicle floor.
2. Bolt or weld Hook Box to the vehicle floor.
Reinforce the floor underneath, if required.
The Hook should be flush with the floor
when in the down position.
POSITION IN PICK-UP TRUCK BOX
NOTE: The Hook Box is installed in a Flatbed Vehicle in the same manner. It
may also be installed in a side loading arrangement as long as the
29 1/4"dimension is maintained. Reinforce the floor as required.
A
30 1/2"
29 1/4"
Ref.
PN 400090
PN 010750 Rev.E
Assy.No. 400090
Eng. 05/ 08/ 14
Hook Box
M-Series Hook Bar
Inside face of Hook
Hook Attachment
Vehicle Floor
-reinforce underneath
as required.
SECTION VIEW
7.04
