Powermatic 54A - Cutterhead - Parts and Assembly (Model 54 A Only)

35

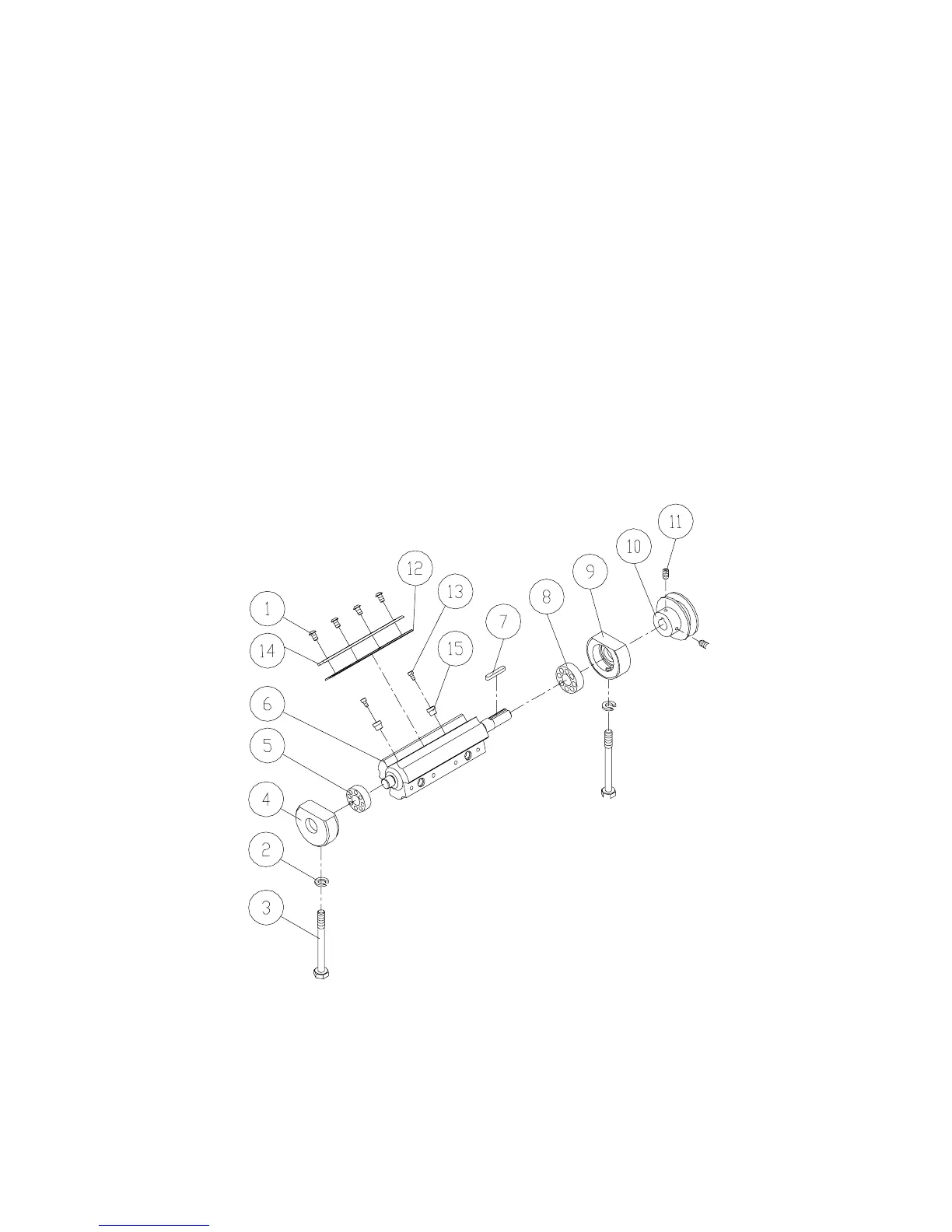

Cutterhead – Parts and Assembly (model 54A only)
Index No. Part No. Description Size Qty.
................. JJ6CSDX-CA ...........Cutterhead Assembly (Index #s 1-15) .................................................... 1
1............... JJ6CSDX-101 ..........Special Button Head Socket Screw...................................................... 12
2............... TS-0720091.............Lock Washer ......................................................3/8”............................. 2
3............... JEA-B01 ..................Bolt........................................................................................................ 2
4............... 3H-C02 ....................Bearing Housing.................................................................................... 1
5............... BB-6202ZZ ..............Ball Bearing........................................................6202ZZ....................... 1
6............... JJ6CSDX-106 ..........Cutterhead ............................................................................................ 1
7............... 5F-G108 ..................Key.....................................................................5 x 5 x 25 ................... 1
8............... BB-6203ZZ ..............Ball Bearing........................................................6203ZZ....................... 1
9............... JH-C04 ....................Bearing Housing.................................................................................... 1
10............. JH-C07 ....................Cutterhead Pulley .................................................................................. 1
11............. TS-0267041.............Socket Set Screw ...............................................1/4”-20 x 3/8”.............. 2
12............. 708801DX................Knife for JJ-6CSDX (set of 3)................................................................. 1
13............. TS-1501021.............Socket Head Cap Screw.....................................M4 x 8........................ 6
14............. JJ6CSDX-114 ..........Knife Lock Bar....................................................................................... 3
15............. JJ6CSDX-115 ..........Adjustment Nut...................................................................................... 6
