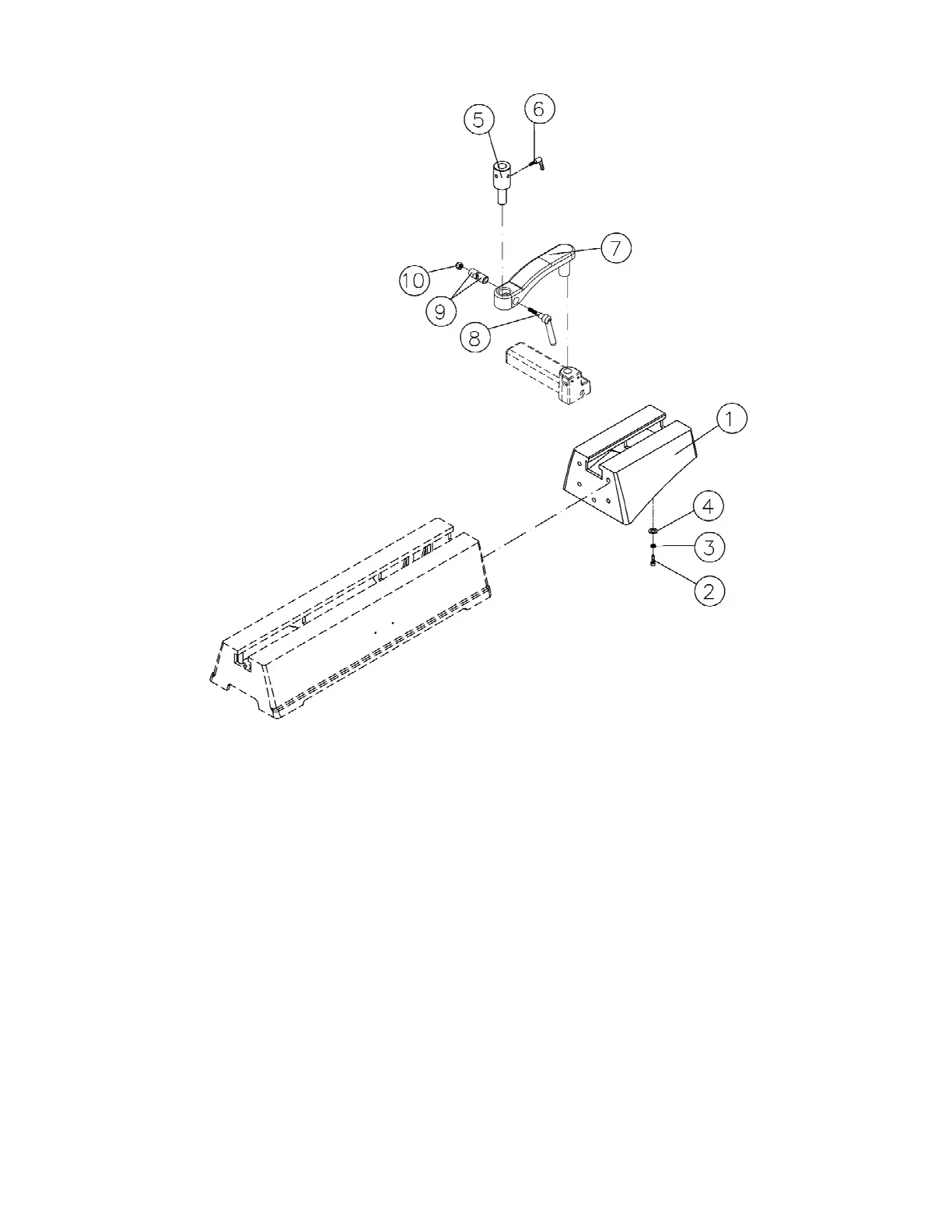

15.5.1 Optional Bed Extension Assembly – Exploded View
15.5.2 Optional Bed Extension Assembly – Parts List
Index No. Part No. Description Size Qty
.................. 6294755 .................... Bed Extension Assembly (item # 1 thru 6) .............. ...................................... 1
1 ................ PM2014-301 .............. Bed Extension ......................................................... ...................................... 1
2 ................ TS-0209071 .............. Socket Head Cap Screw ......................................... 3/8"-16x1-1/2" ............... 4
3 ................ TS-0720091 .............. Lock Washer ............................................................ 3/8" ................................ 4
4 ................ TS-0680042 .............. Flat Washer ............................................................. 3/8" ................................ 4
.................. PM2014-ERPK .......... Extension Toolrest Post Kit (item #5, 6) .................. ...................................... 1
5 ................ PM2014-305 .............. Extension Toolrest Post ........................................... ...................................... 1
6 ................ PM2014-306 .............. Locking Handle ........................................................ ...................................... 1
.................. PM2014-TEA ............. Toolrest Extension Assembly (item #7 thru 10) ....... ........................................
7 ................ PM2014-307 .............. Toolrest Extension .................................................. ...................................... 1
8 ................ JWL1440-206 ............ Handle ..................................................................... ...................................... 1
9 ................ JWL1440-207 ............ Tool Rest Lock Bushing Set .................................... ...................................... 1
10 .............. TS-0570031 .............. Hex Nut .................................................................... 3/8” ................................ 1
