5.0 Features and Terminology

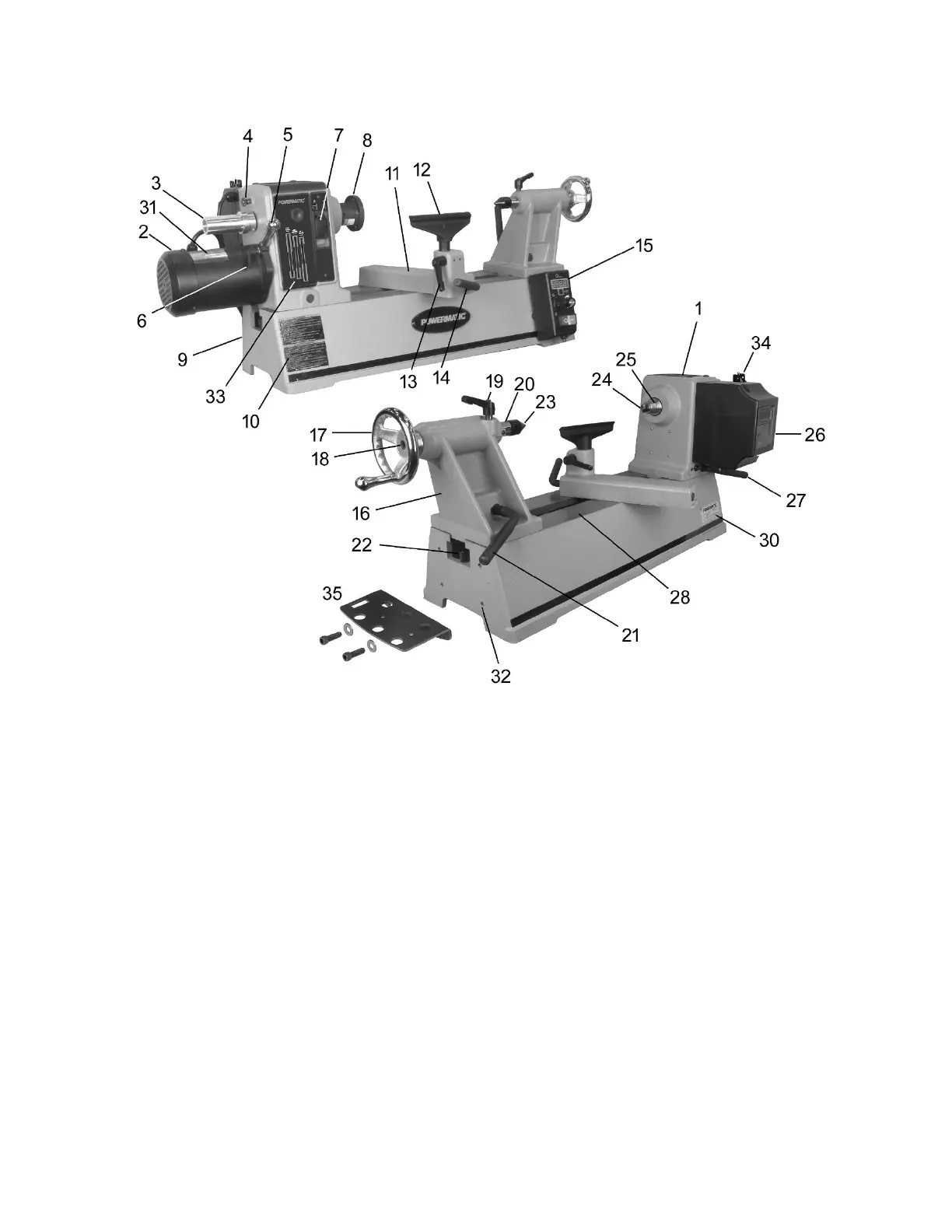

Figure 5-1: features and terminology
1. Headstock
2. Motor, 1HP
3. Handwheel
4. Indexing pin
5. Motor tension handle
6. Motor tension lock handle
7. Spindle lock
8. Face plate, 3in.
9. Bed
10. Warning label
11. Tool rest base
12. Tool rest, 8in.
13. Tool rest locking handle
14. Tool rest base locking handle
15. Remote switch box
16. Tailstock
17. Tailstock handwheel
18. Hole through tailstock spindle
19. Tailstock spindle locking handle
20. Tailstock spindle
21. Tailstock locking handle
22. Stud (x2)
23. Live cone center
24. Spur center
25. Spindle
26. Variable frequency drive (Inverter)
27. Headstock locking handle
28. Bed ways
30. ID/serial no. label
31. Motor label
32. Mounting holes for optional bed extension
33. Pulley cover (with belt change graphic)
34. Toggle switch
35. Tool caddy
