Manual#: 851-000134
Version 3.4 – 08/11/2022

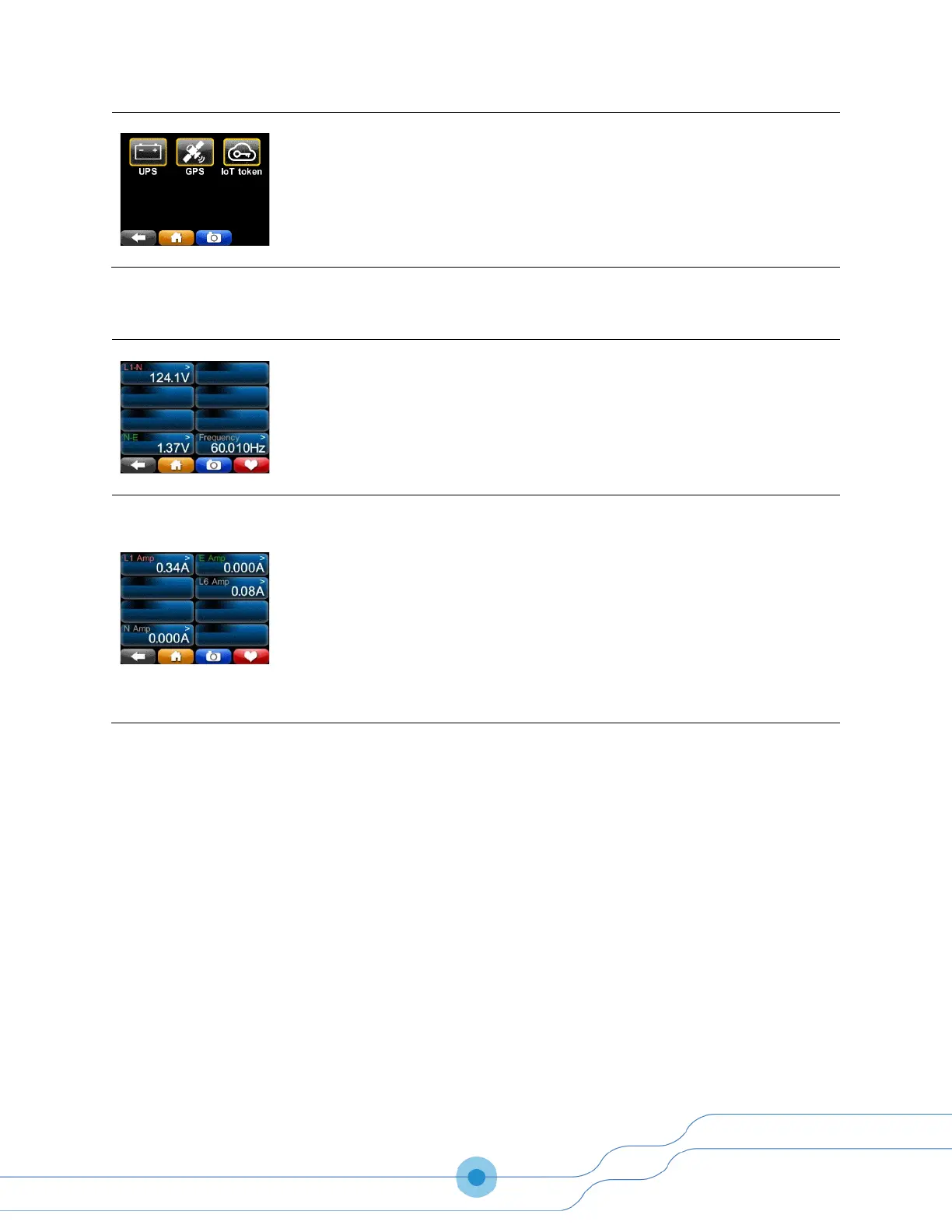

Advanced: UPS battery status, GPS synchronization status, and IOT Token
number are available here.
Voltage and Frequency: These are line-to-line, line-to-neutral, and neutral-to-
earth true-RMS voltmeters. Different meters will show on these screens,
depending on your power configuration. (For example, if the power configuration
is “delta,” there will not be any L-N meters, because there is no neutral
conductor.) If you have set a potential transformer ratio in your Setup.ini file, the
values will reflect this ratio.
Current: These meters show the true-RMS current. If you have set a current
transformer ratio in your Setup.ini file, then these meters will use that ratio, so
these meters will sometimes show their values in kilo-amps or even mega-amps.
Different meters will show on this screen, depending on your power
configuration. (For example, if the power configuration is “delta,” this screen will
not show a neutral current meter, because there is no neutral conductor in delta
power.)
Note: The PQube 3v measures voltage only and will not show any readings for
current or power.
