powersoft DIGAM series User Manual

POWERSOFT
ENGLISH - 11
Technical Notes
• DIGAM amplifiers cannot work in bridge connection
• The DIGAM amplifier has an automatic power factor correction system for a perfect main network interface. The
amplifier is a resistive load for the main network, minimizing the reactive power and the harmonic distortion on the
current. The system allows performance to be maintained even in circumstances of varying the mains voltage.
• The output stage of the amplifier is a bridge configuration with both outputs ( positive and negative ) not refered to
ground. A DC voltage is present between these outputs and the ground ( Chassis ). This voltage is variable and
depends on the model from 40VDC to 80VDC .
• The connection of the processors equipped with a “feed-back” system must be done decoupling this voltage by
capacitor.

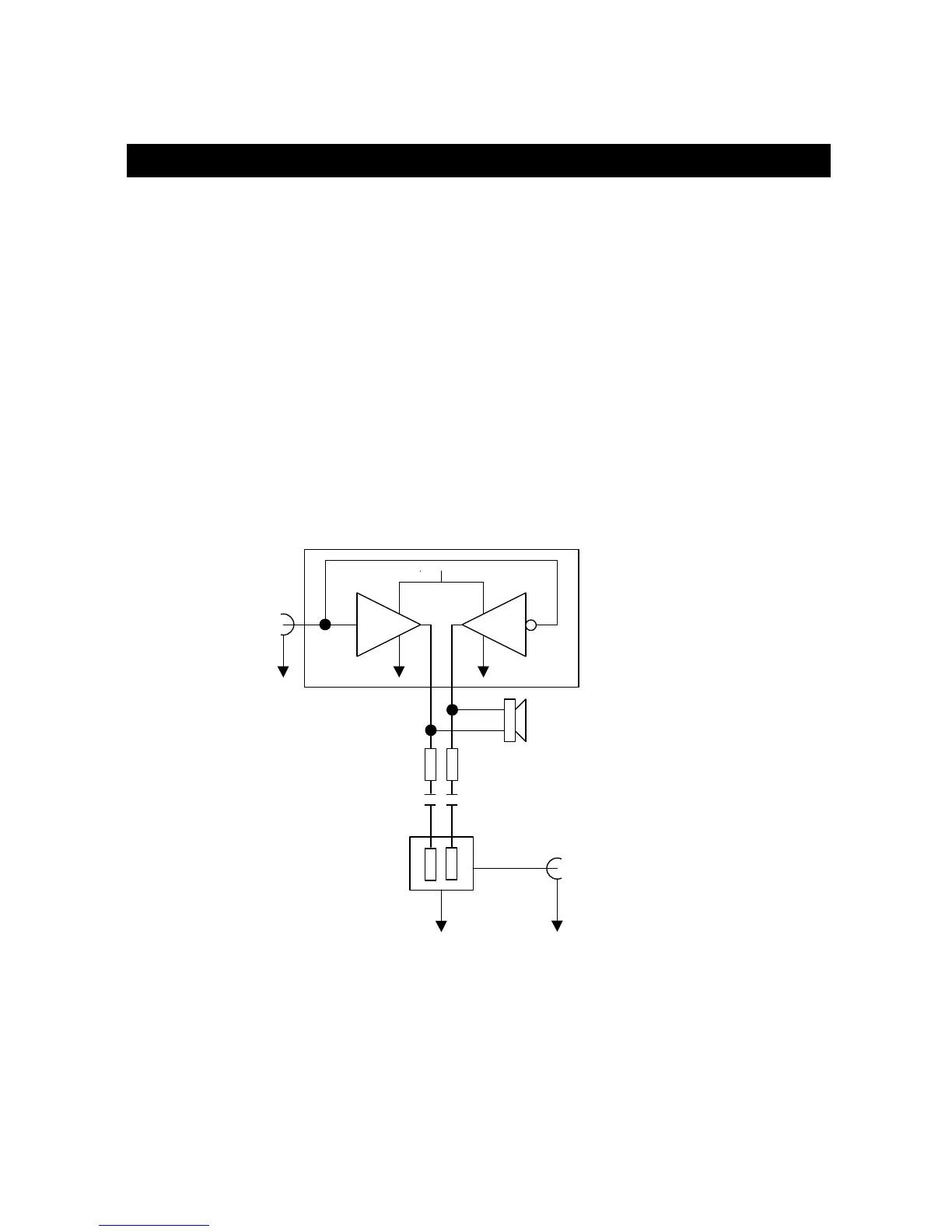

• The formula that rules the capacitor value and the schematic application are the following.
C≅ 1 / (30*Zin) where Zin is the input impedance of the processor used.
IMPORTANT : If decoupling is not performed the amplifier may go in protect mode.
+Vcc
In
One channel of DIGAM
Out
Processor
Zin
Zin
100
100
C
c
