M SERIES | SERVICE MANUAL

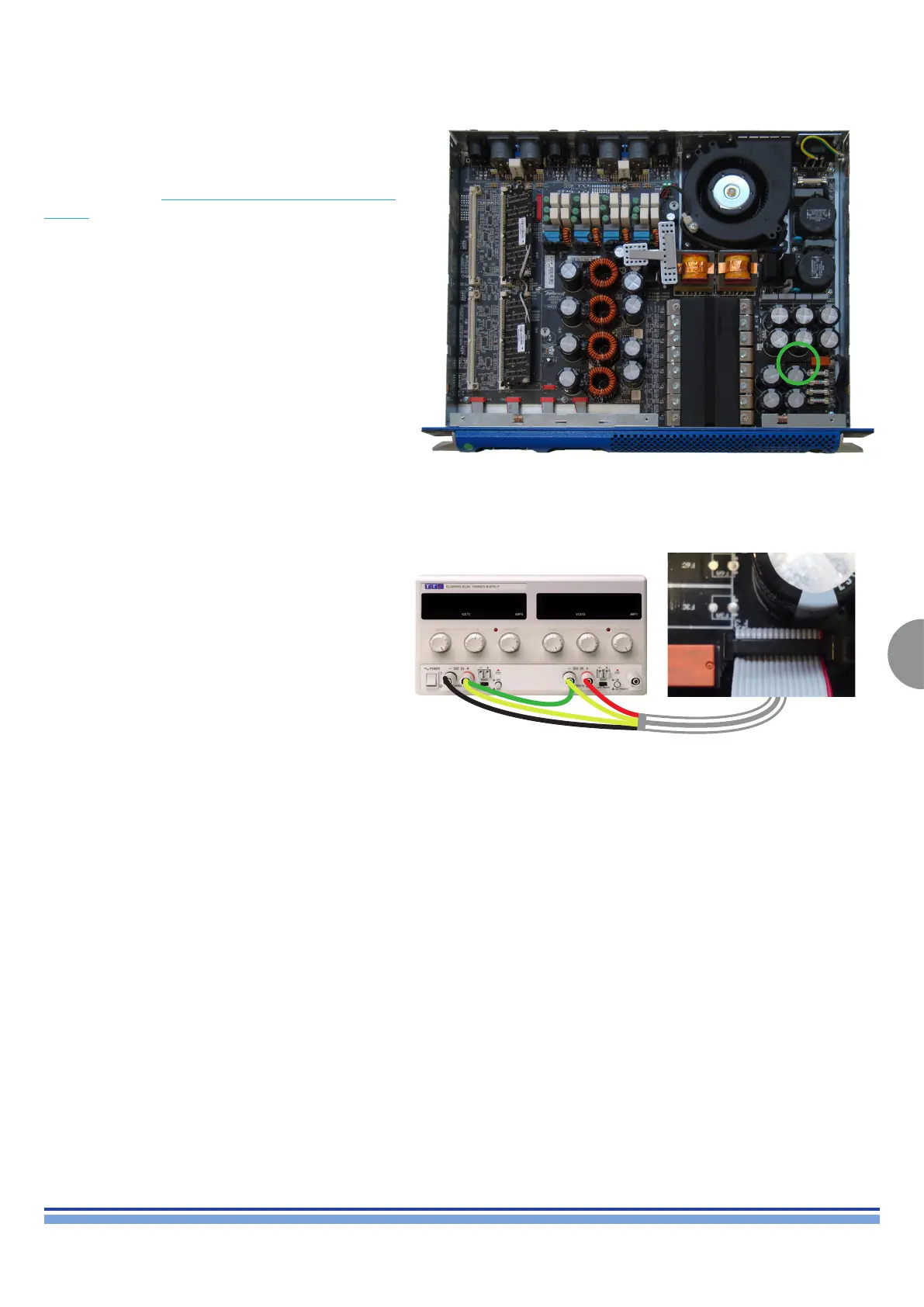

By means of the DigiMod 500 - 3000 AUX VOLTAGE
CABLE connect a DC power supply to the CN2 connector
highlighted in (Fig. 41).
18V 1.15A 18V 220mA
(Fig. 41)
(Fig. 42)
Slowly increase the voltage to 18V and check the
absorption, it should be around:
+18Vdc - 1.15A ± 10%.
-18Vdc - 220mA ± 10%.
