QUATTROCANALI | SERVICE MANUAL

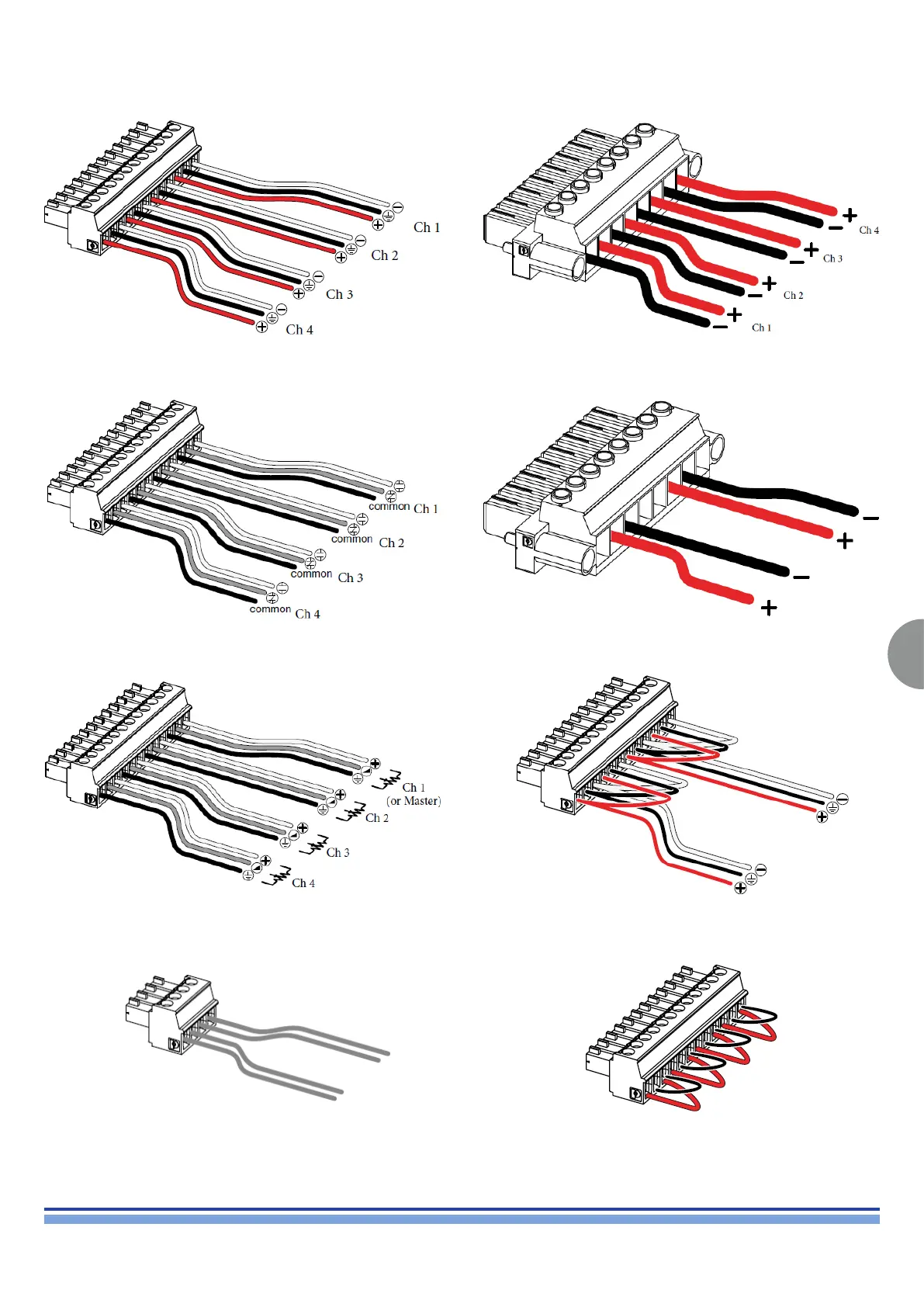

5.3 Phoenix Connectors Connection Informations
INPUT OUTPUT (Single-Ended)
OUTPUT (Bridged)
Phoenix MC 1,5/12-ST-3,81 1803675
Phoenix MC 1,5/12-ST-3,81 1803675
GPO / ALARM
Phoenix PC 5/ 8-STF1-7,62 1777891
Phoenix PC 5/ 8-STF1-7,62 1777891
REMOTE LEVEL INPUT (Link Channel Pairs)*
INPUT (Analog Inputs not in use)
Phoenix MC 1,5/12-ST-3,81 1803675
Phoenix MC 1,5/4-ST-3,81 1803594
REMOTE ON | REMOTE OFF
* Quattrocanali 4804 without DSP only
Quattrocanali 2404 without DSP only
Quattrocanali 1204 without DSP only
Phoenix MC 1,5/12-ST-3,81 1803675
