QUATTROCANALI | SERVICE MANUAL
Colour Description
DSP+D / CNTRL Board
Fan + Fan’s Duct
Main Board
Rear Board
Front Board
EPROM:
Amplier’s Model
Amplier’s Serial Number
Amplifer’s MAC Address
5.2 Internal

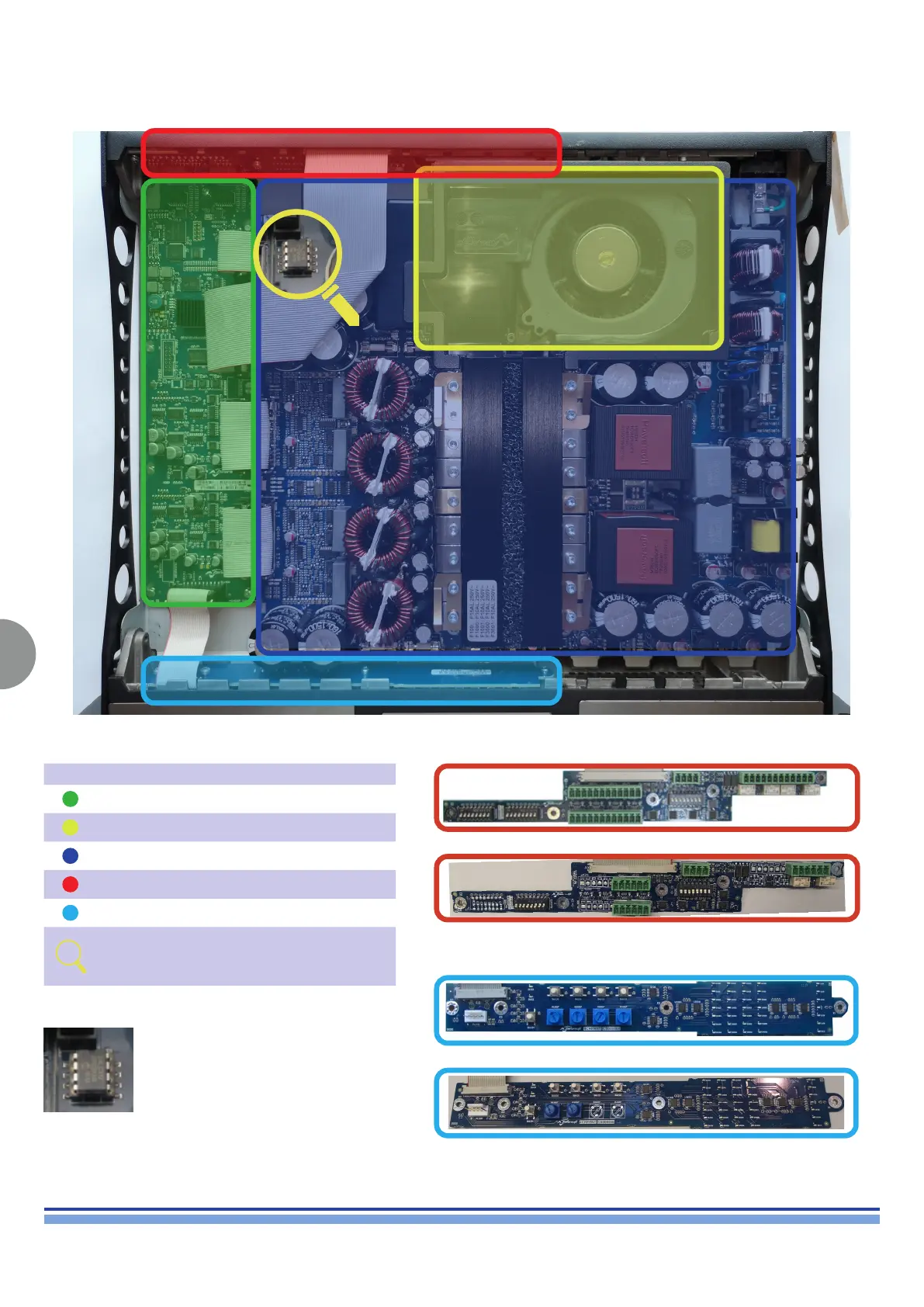

5.2.1 Main Module Locations
Layout
EPROM
NOTE: When replacing the Main Board,
remove the Eprom by gently prying on its
sides and place it in the new board.
The EPROM contains the following informations:
Model of the Amplier
Serial Number of the Amplier
MAC Address of the Amplier
Type of Rear Board
Front Panel Board
Quattrocanali (4CH)
Duecanali (2CH)
Quattrocanali (4CH)
Duecanali (2CH)
