QUATTROCANALI | SERVICE MANUAL
6. Disassembling Procedure
6.1 Removing the Amplifier’s Cover
The Quattrocanali & Duecanali feature a cleverly engineered
opening mechanism, there is no need to remove the screws
completely in order to open the amplier’s cover.

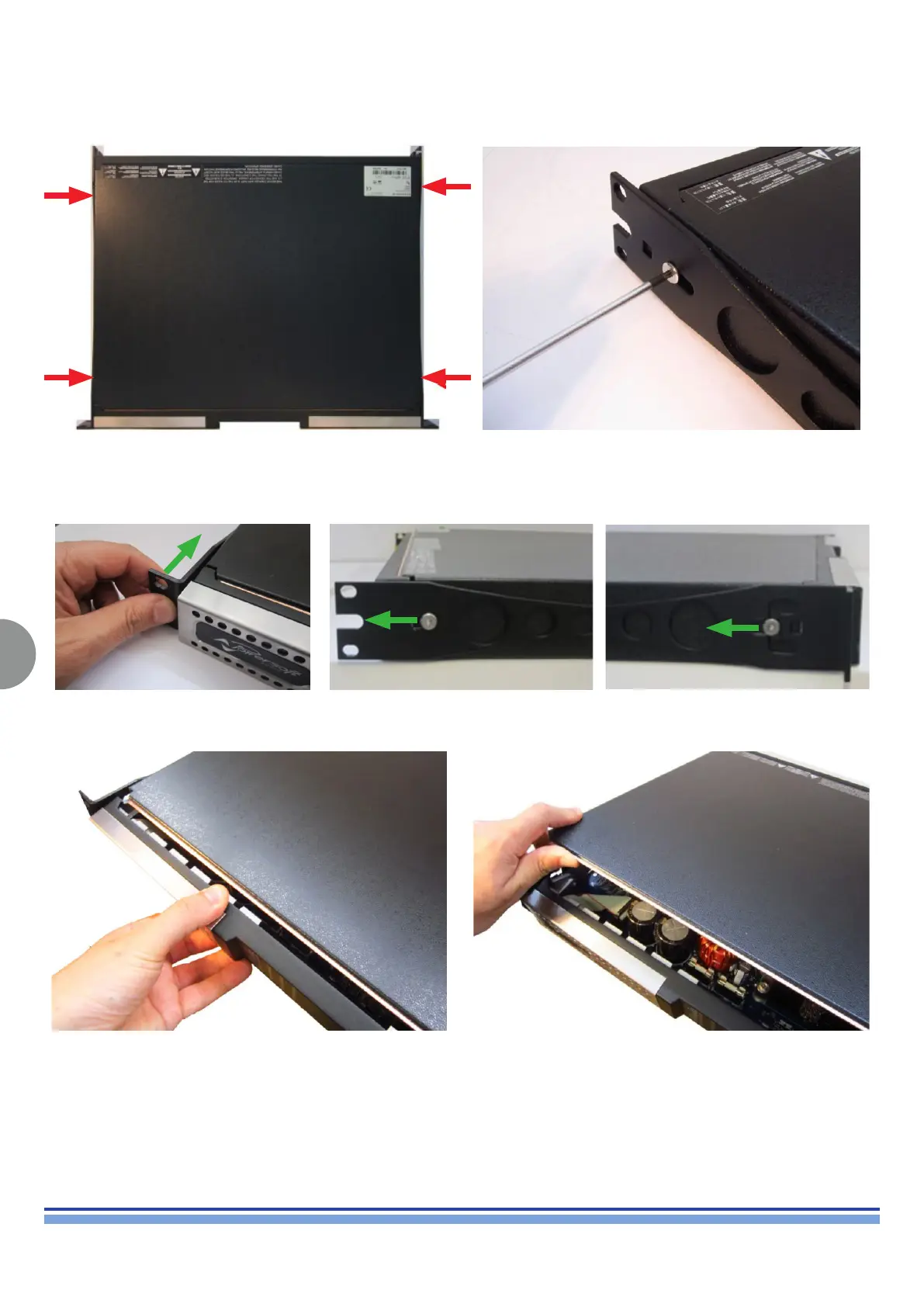

Untighten the screws by 3 complete turns, 2 on each side.
Slide the side wings towards the back, releasing them from the amplier’s chassis.
Gently pry the Front Panel slightly in order to completely expose
the top cover’s front side.
Gently remove the top cover.
