6.2 Disassembling the Fan

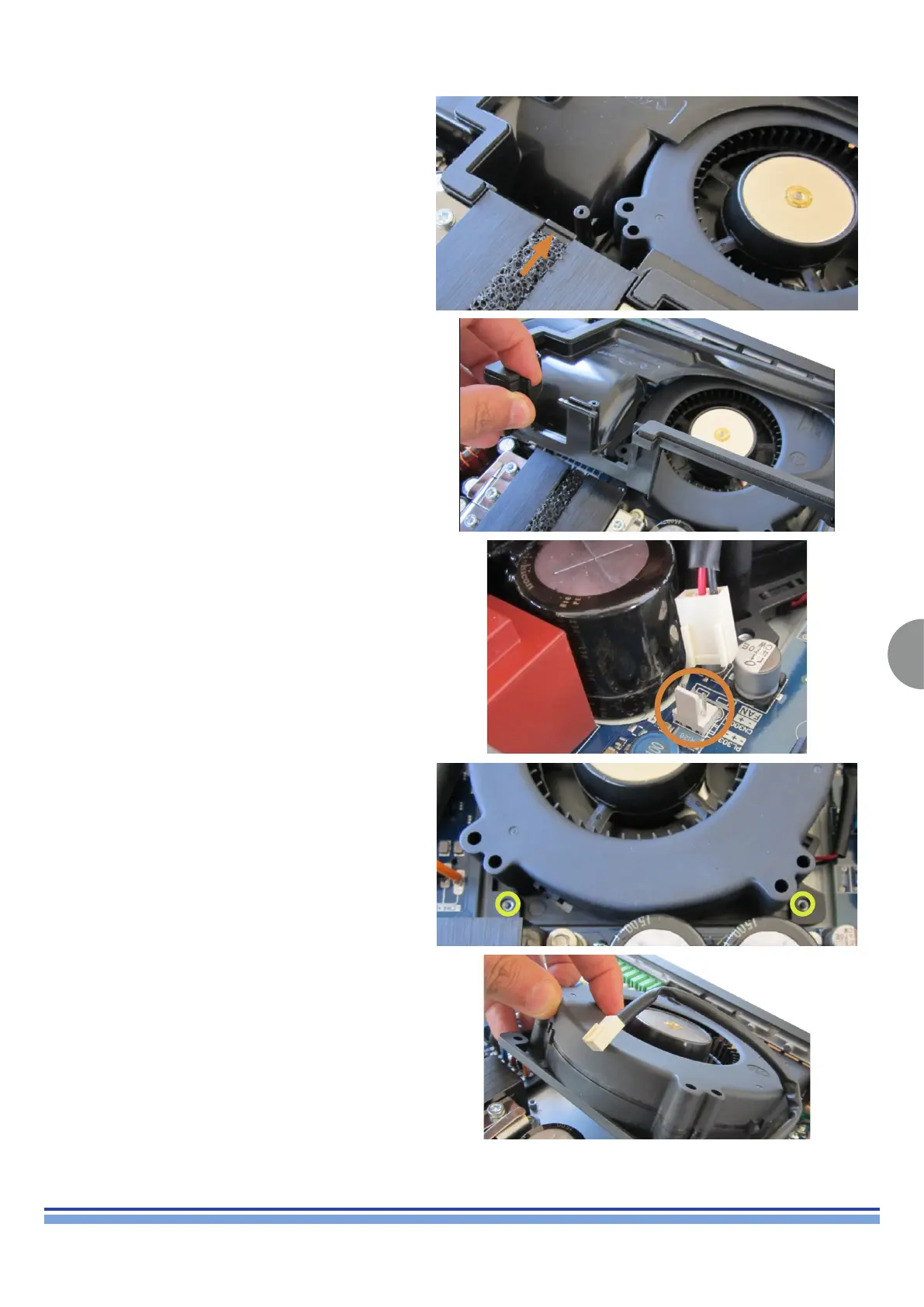

Unclip the fan’s duct by gently unclipping the retainer
indicated in the portrayed picture.
Lift and remove the fan’s duct.
Unplug the fan’s connector.
Note that the 2 screws highlighted in the following
picture (yellow) sould not be present nor inserted.
It is now possible to remove the Fan.
