QUATTROCANALI | SERVICE MANUAL

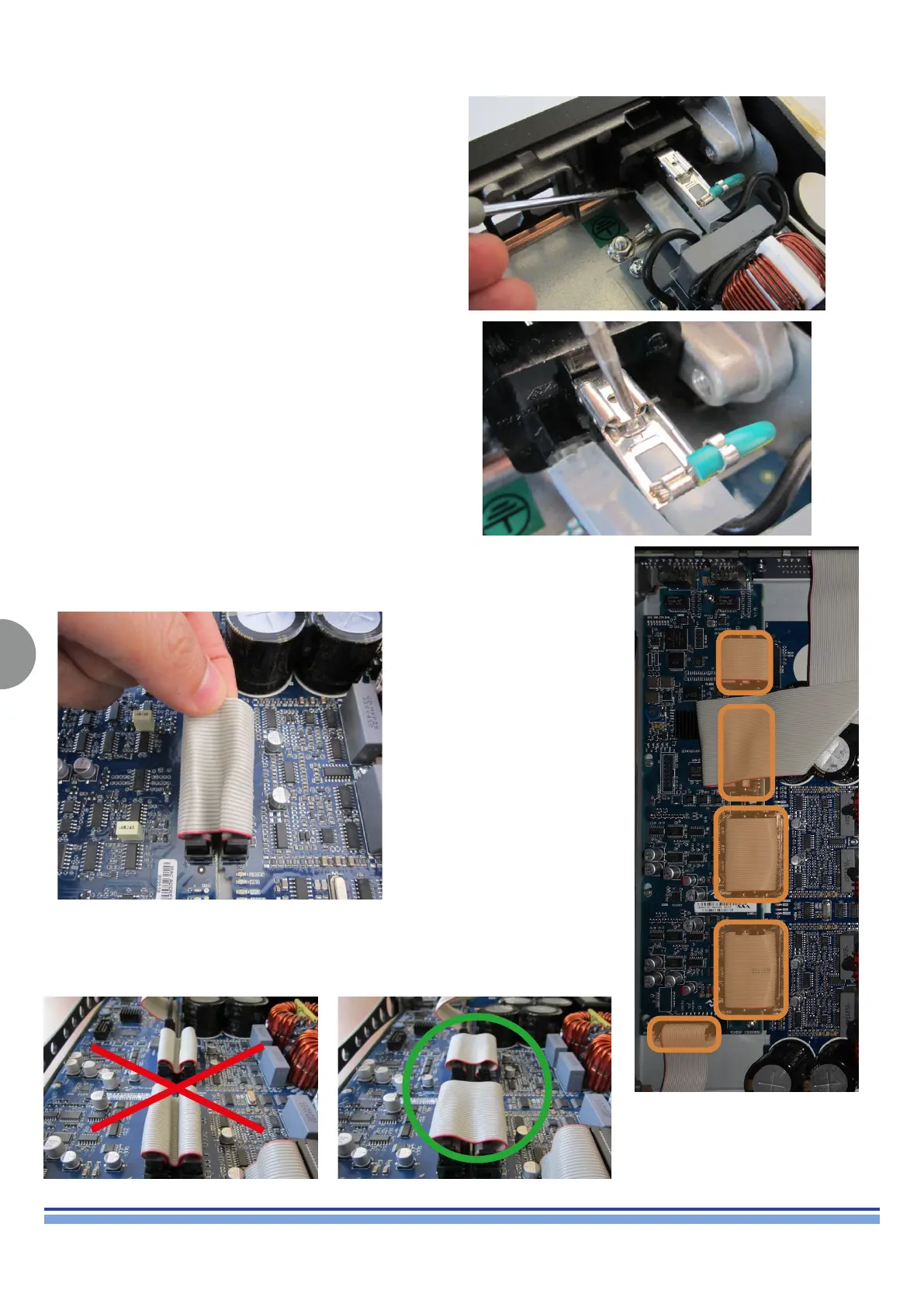

6.3 Main Board Disassembling
Unplug the mains’ Faston connectors.
Unclip the safety retainer from the ground connector
Proceed by removing all the at cables connecting the
Main Board to the DSP+D/CNTRL and Front boards.
Also from the Rear Board to the DSP+D/CNTRL Board.
Older versions of the Quattrocanali feature the at cables tucked in between the boards.
Please update this conguration as shown in the following pictures when reassembling the
amplier.
WRONG CORRECT
