QUATTROCANALI | SERVICE MANUAL
Cable Number Cable Color Cable Number Cable Color
1
Gray
5
Blue
2
Brown
6
White
3
White
7
Brown
4
Blue
8
Gray
CURRENT CONFIGURATION FORMER CONFIGURATION
2 31 5 64 7 82 31 5 64 7 8
Cable Number Cable Color Cable Number Cable Color
1
Gray
5
Yellow
2
Brown
6
Red
3
White
7
Black
4
Blue
8
Orange

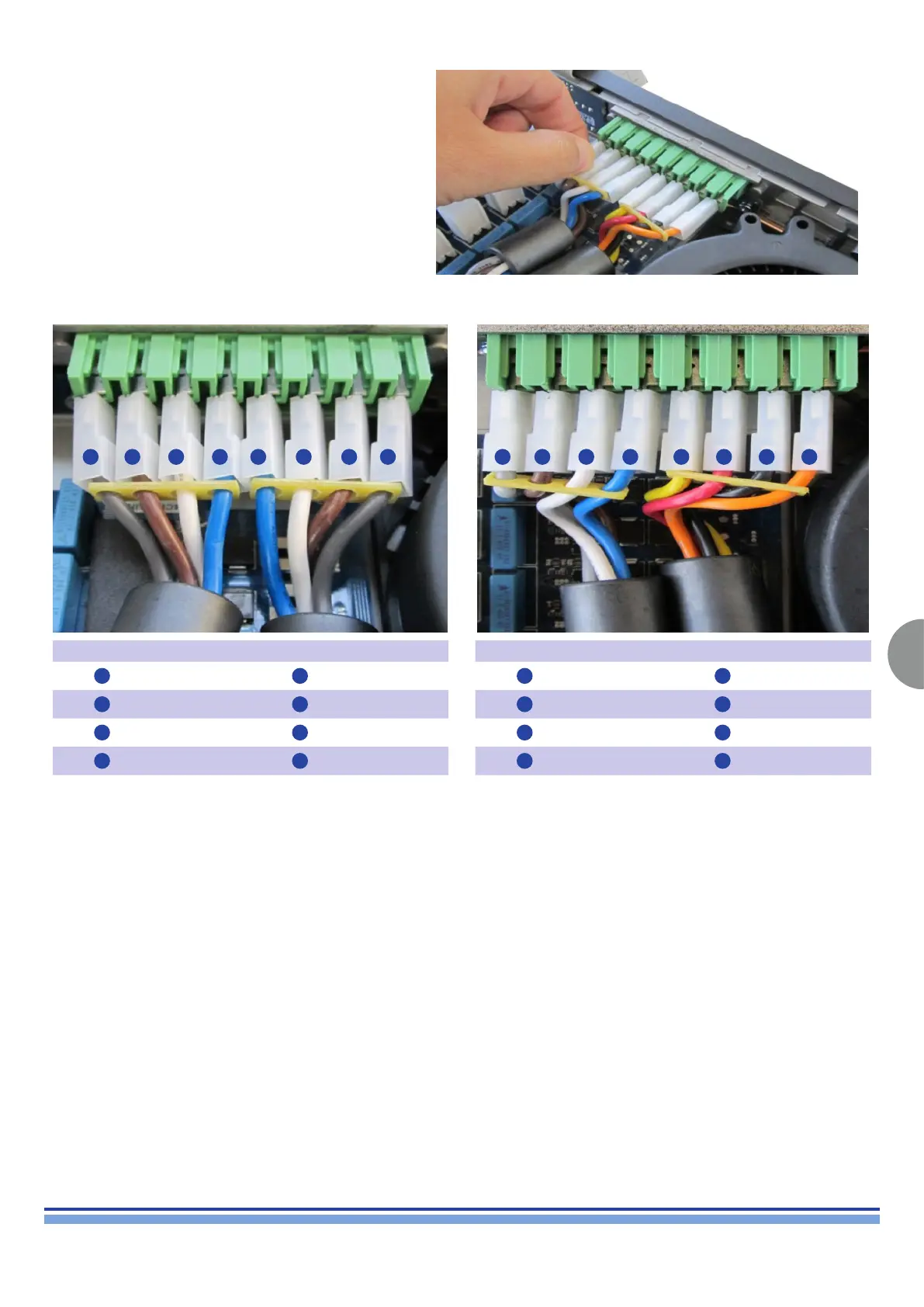

Focus your attention on the Output’s Fastons.
Note that there are currently 2 versions of the main
board’s wiring, these are easily recognizable by the color
coding of the output terminations.
Refer to the following diagrams when reassembling the
amplier.
