T-SERIES | SERVICE MANUAL

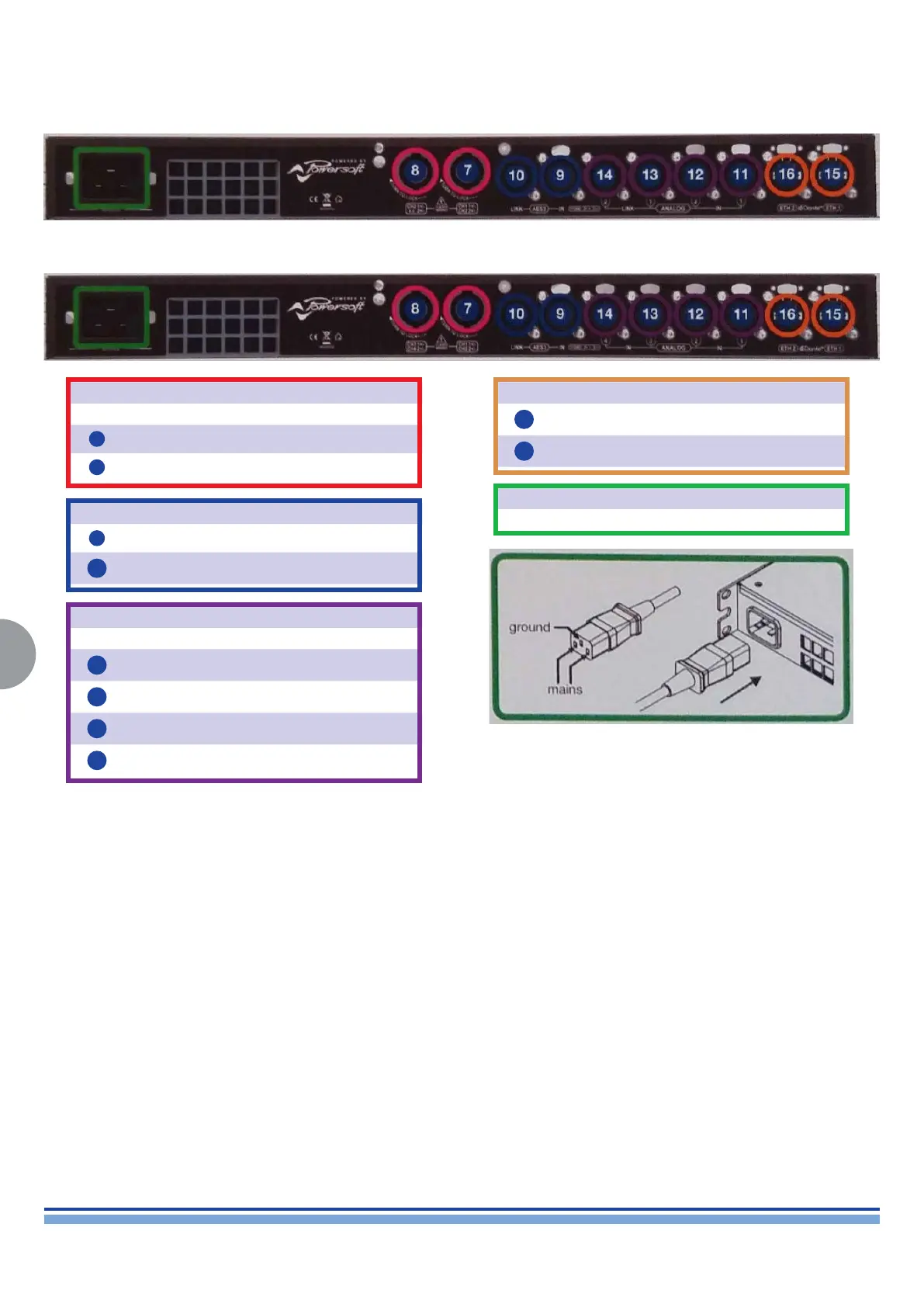

5.1.3 Rear Panel Introduction
Output Section
T302 - T602 T304 - T604
7
CH 1 (1+/-) | CH 2 (2+/-) CH 1 (1+/-) | CH 2 (2+/-)
8
CH 2 (1+/-) | n.c. (2+/-) CH 3 (1+/-) | CH 4 (2+/-)
Network Connectors
15
DANTE / ETH 1 (RJ45)
16
DANTE / ETH 2 (RJ45)
INPUT Section
T302 - T602 T304 - T604
11
Input 1 (XLR-F) Input 1 (XLR-F)
12
Input 1 (XLR-F) Input 2 (XLR-F)
13
Link 1 (XLR-M) Input 3 (XLR-F)
14
Link 2 (XLR_M) Input 4 (XLR-F)
AES3
9
AES3 IN (1GND/2+/3-)
10
AES3 OUT (1GND/2+/3-)
AC Mains Connector
IEC C19
T302 - T602
T304 - T604
