6.6 Rear Board Disassembling

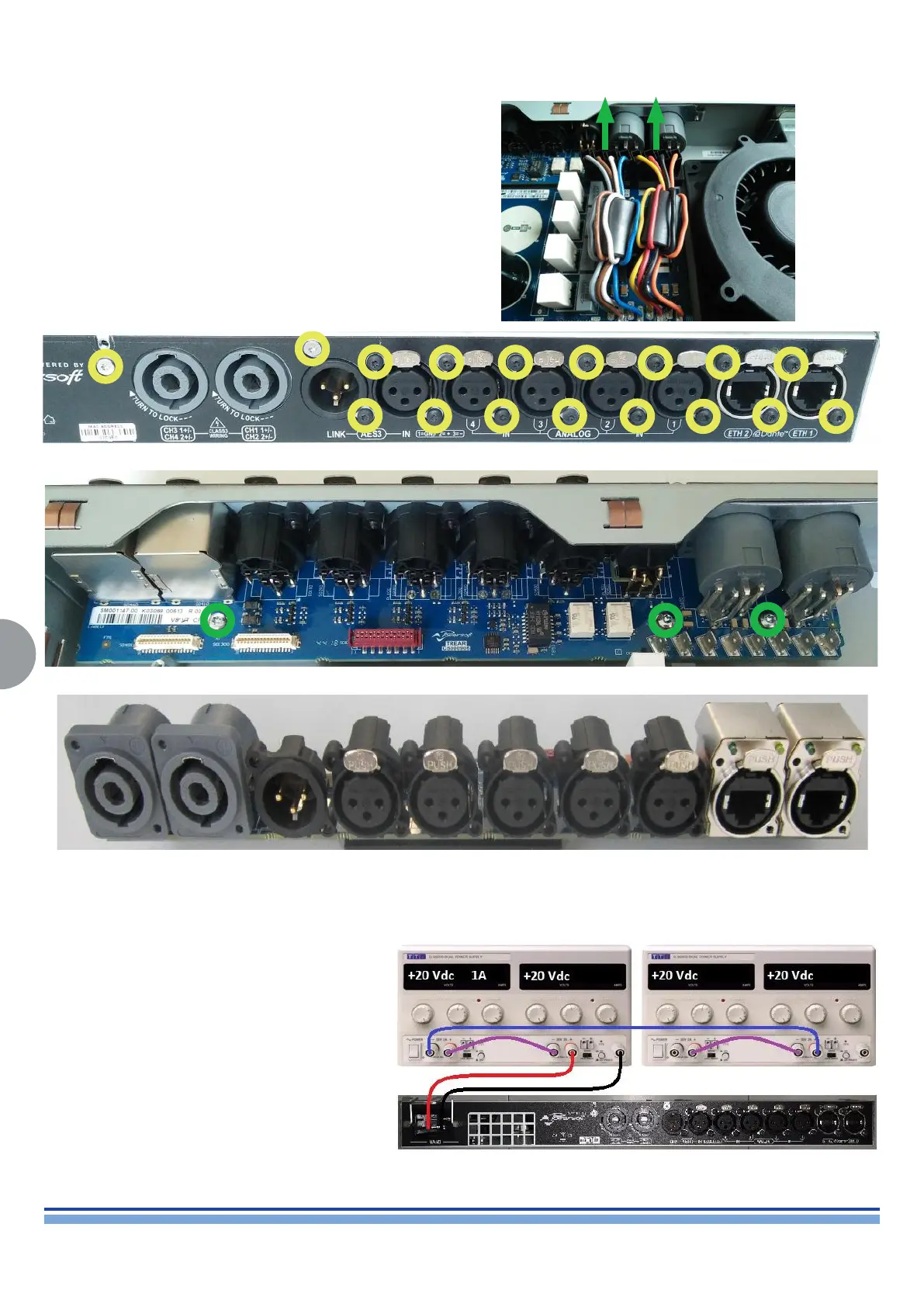

By means of a T9 Torx screwdriver, remove the 17 screwshighlighted in yellow.
After removing the DSP-D Board, unplug the Outputs’
connector Fastons upwards.
By means of a T10 Torx screwdriver, remove the 3 screws hightlighted in green.
It is now possible to remove the Rear Board from the rear panel.
7. Troubleshooting
7.1 Switching on the unit in DC
Connect the Amplier to an external DC Power Supply.
Slowly increase the voltage to 80 Vdc Max.
Check if the Absorption is within the limits
1A (±10%) @60 to 80 Vdc Max.
Check the front panel LEDs for normal operation.
T-SERIES | SERVICE MANUAL
