T-SERIES | SERVICE MANUAL

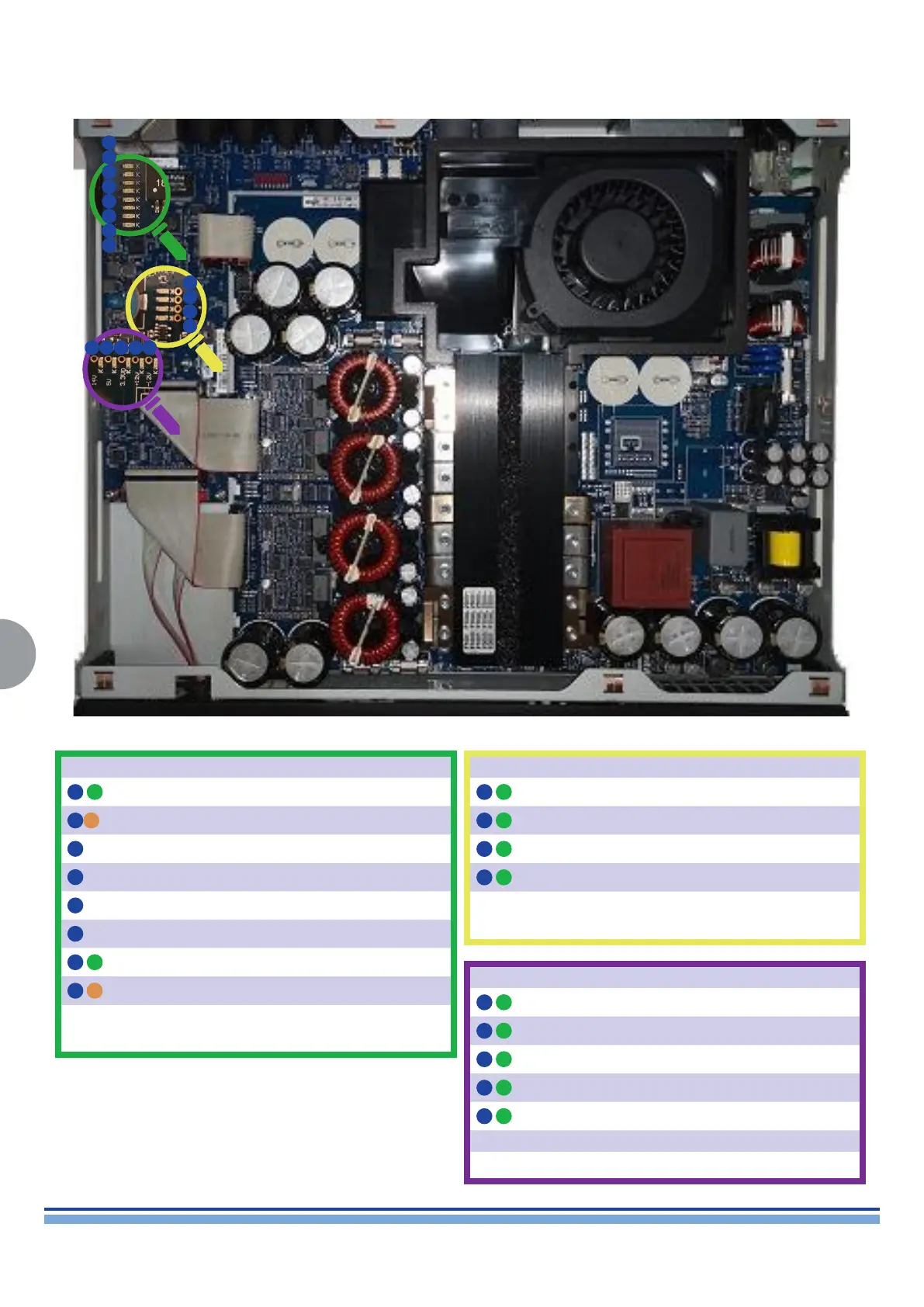

7.4 Internal LEDs Checks - DSP Board - Normal Operating Conditions
Make sure that the plug is correctly inserted in the ETH Port.
Colour Status LED Action
A
GREEN
OFF K None
B
ORANGE
ON K None
C
OFF K None
D
OFF K None
E
OFF K None
F
OFF K None
G
GREEN
ON K None
H
ORANGE
OFF K None
Colour Status LED Action
I
GREEN
BLINKING K None
J
GREEN
BLINKING K None
K
GREEN
OFF K None
L
GREEN
OFF K None
Colour Status LED Action
M
GREEN
ON 14V None
N
GREEN
ON 5V None
O
GREEN
ON 3.3VD None
P
GREEN
ON +12V None
Q
GREEN
ON -12V None
J
I
L
K
ON P QM
B
A
F
E
D
C
G
H
