PowerTec 1000 User Manual

Page
26
Model
1000
Installation and Operation Manual
6/1/2001 © copyright 1997 by Powertec

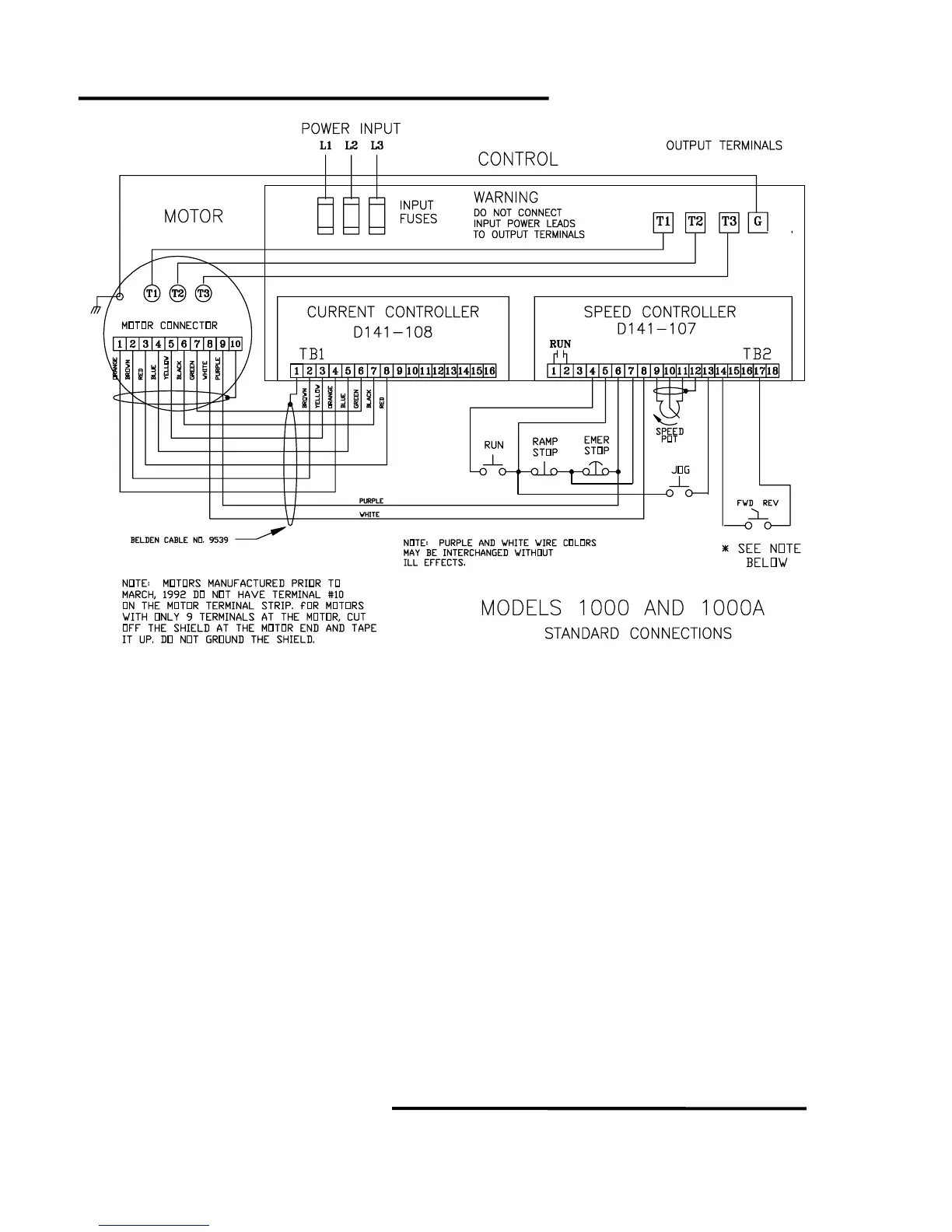

NOTICE:
ANY POWER EQUIPMENT SWITCHING HIGH VOLTAGES AT HIGH FREQUENCIES EMITS RADIO
FREQUENCY INTERFERENCE ( RFI ) AND ELECTROMAGNETIC INTERFERENCE ( EMI ). THE
MOTOR LEADS MUST BE RUN IN METALLIC CONDUIT TO PREVENT INTERFERENCE WITH
OTHER EQUIPMENT. THIS CONDUIT MUST BE ALL IN ONE PIECE, IF POSSIBLE, AND THIS
CONDUIT MUST BE SOLIDLY GROUNDED. ONLY THE MOTOR LEADS AND THE GROUND WIRE
FROM THE CONTROL TO THE MOTOR SHOULD BE IN THIS CONDUIT.
* NOTE:
THE POWER SUPPLY FOR THE FWD/REV SWITCH, WHEN USED, MUST COME FROM TB2
TERMINAL 17 ONLY. DO NOT CONNECT THE FWD/ REV SWITCH ANYWHERE IN THE CONTROL
PUSHBUTTONS CIRCUIT BETWEEN TB2 TERMINAL 4 AND TB2 TERMINAL 8.
