Page
30
Model
1000
Installation and Operation Manual
6/1/2001 © copyright 1997 by Powertec

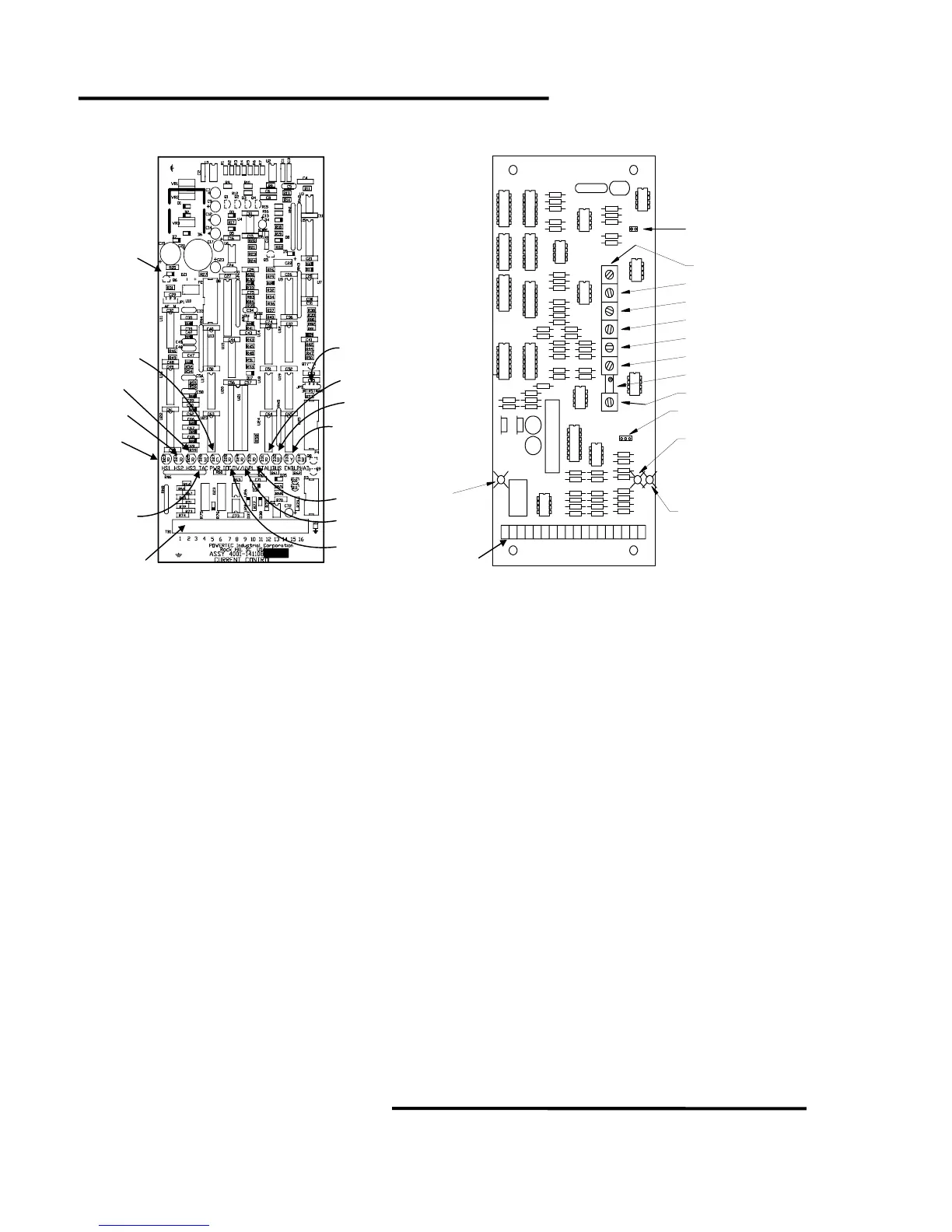

JUMPERS
CURRENT CONTROLLER BOARD 141-108
JP1
- “AF-N” Jumper - Used to decide whether or not the drive is permanently in the “DIGITAL”
mode. This selection overrides the input at TB1 terminal 10. If JP1 is in the “AF” position,
the drive is in the DIGITAL mode and TB1 terminal 10 has no effect. If JP1 is in the “N”
position, you must apply +24VDC to TB1-terminal 10 to switch to DIGITAL mode.
JP3
- “RESET” Jumper - Used to trap faults when troubleshooting. Faults are normally reset by
pressing the STOP button when the RESET jumper is in the INTERNAL (INT) position.
When the RESET jumper is moved to the MAN (Manual) position, the faults do not reset
by pushing the STOP button. The fault must be reset by moving the RESET jumper to the
middle (RESET) position and then the jumper must be moved to either INT or MAN. The
drive will not run with the jumper in the middle position.
SPEED CONTROLLER BOARD 141-107
JP1
- “COAST TO STOP” Jumper - Determines whether the drive has a RAMP STOP mode, i.e.
if the drive attempts to decelerate the motor to a stop or if the motor is allowed to coast to
a stop. When the jumper is installed, the drive changes from RUN or JOG mode to RAMP
STOP mode when the RUN or JOG mode is ended. If the jumper is removed, the drive
has no RAMP STOP mode and the drive is disabled when the RUN or JOG mode ends.
JP2
- “RAMP RATE” Jumper - Sets the range of the ACCEL and DECEL pots. If the jumper is
installed, rates are adjustable from about 2 to about 90 seconds. If the jumper is
removed, the rates are adjustable from about 50 milliseconds to about 2 seconds. Times
given are the time to change speed from zero speed to maximum speed (ACCEL), or
from maximum speed to zero speed (DECEL). Other speed change times are
proportional.
POWER
GREEN
HS3
RED
HS2
RED
HS1
RED
TAC
RED/GREEN
BUS
RED/GREEN
ENABLE
YELLOW
CURRENT CONTROLLER
BOARD
STALL
RED
PL
RED
OV/UV
RED
IOC
RED
TB1
JP1
JP3
P4
RUN
123456789101112131415161718
TB2
REMOVE
FOR
COAST
STOP
JP1
CURRENT
LIMIT
LED
ZERO
SPEED
RUN
LED
MIN SPD
MAX SPD
JOG SPD
DECEL
ACCEL
CLIM
STAB
GAIN
POWERTEC
JP2
SPEED CONTROLLER
BOARD
LED
