PowerTec 1000 - SPECIFIC FAULT TESTS; IOC AND OV;UV FAULT TESTS

Page
42
Model
1000
Installation and Operation Manual
6/1/2001 © copyright 1997 by Powertec

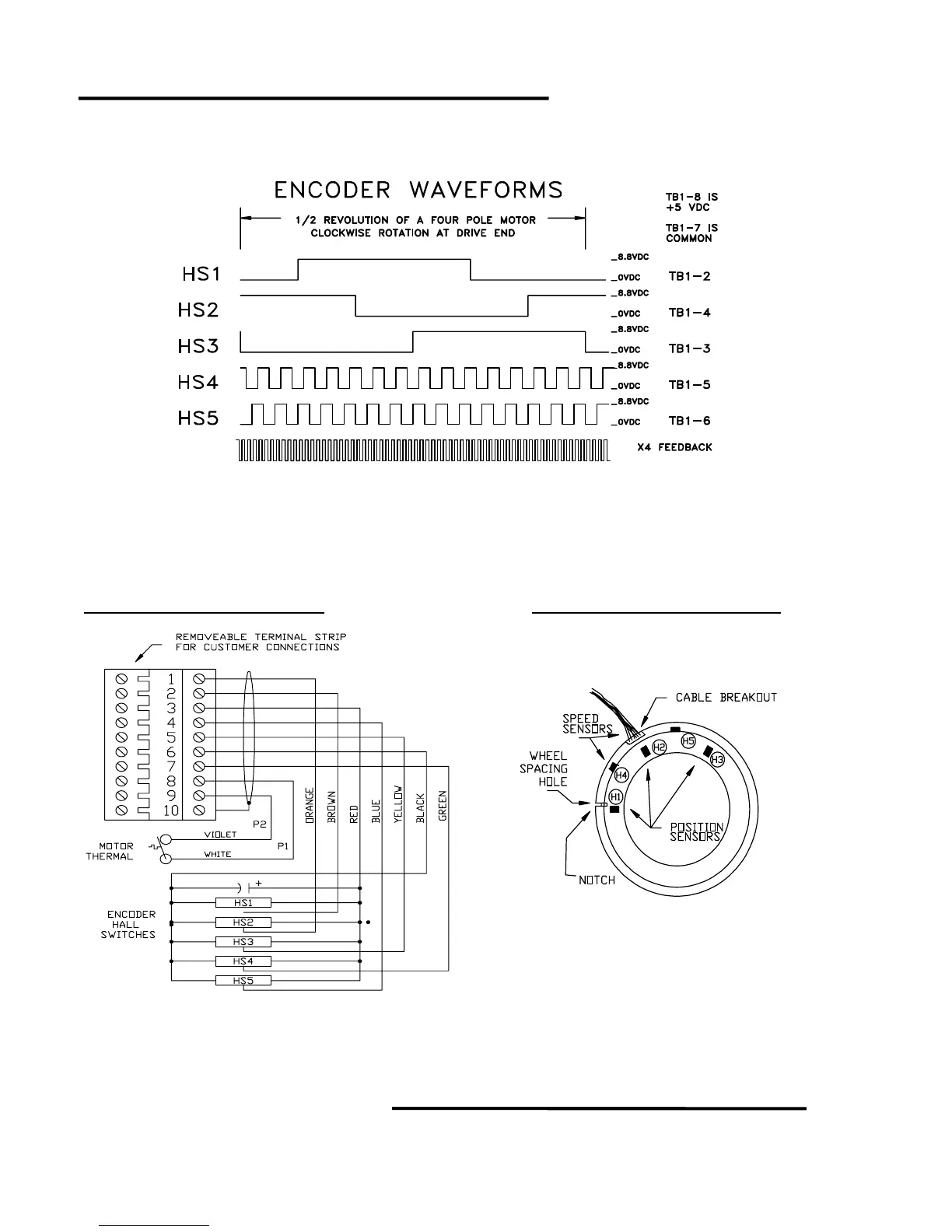

MOTOR ENCODER CONNECTIONS
IN MOTOR TERMINAL BOX MOTOR ENCODER LAYOUT
