8.3.3 System Meter Screens
Select METERS from the Main menu to display the System Meter screens.

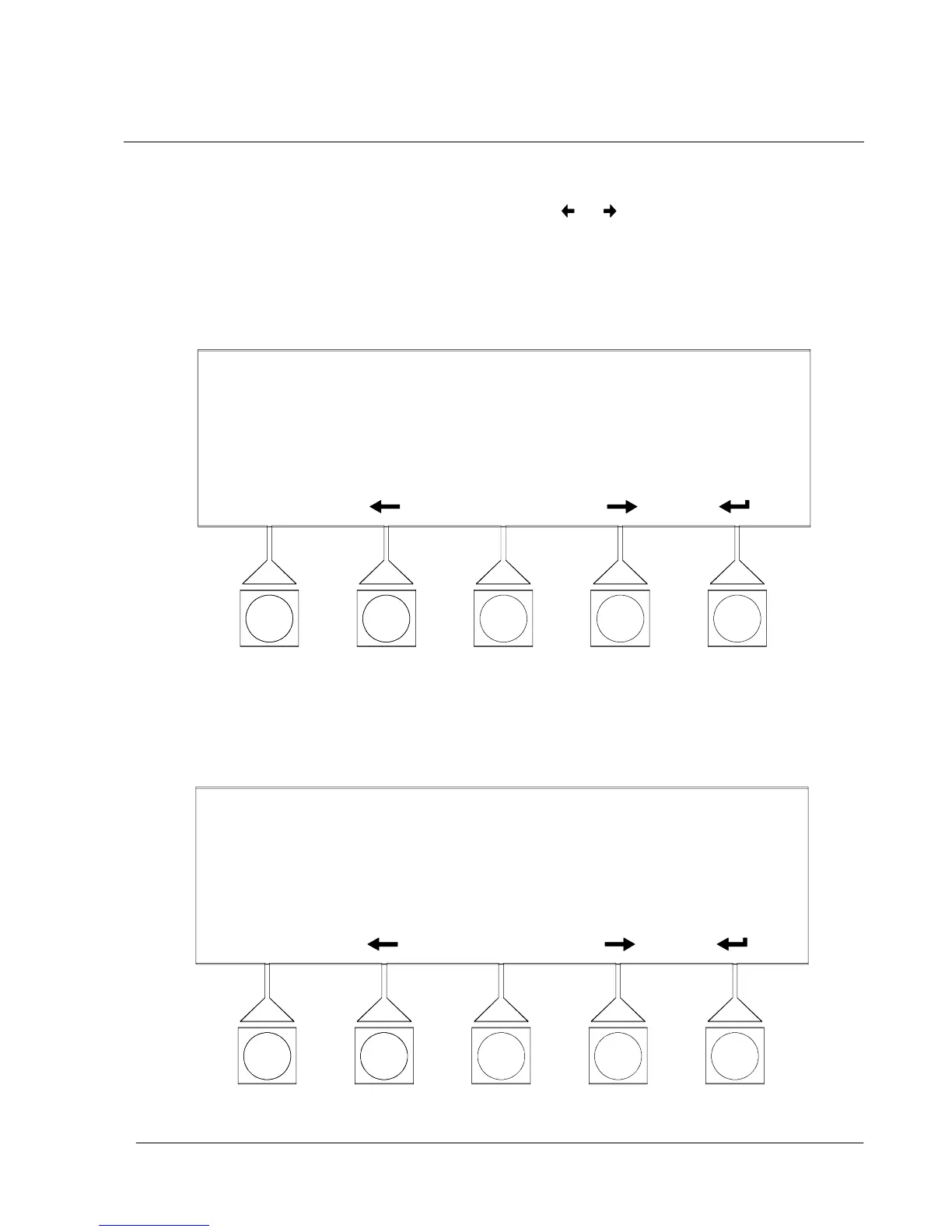

Figures 8---6 through 8---10 show the System Meter screens.
To scroll through the meter screens, select the or pushbuttons from the
display menu. The current UPS readings are displayed in the information area of
the screen.
The Input screen shows the phase-to-phase voltage, phase current, and frequency,
of the incoming utility, followed by the KVA, KW, and power factor measurements.
INPUT
VAB
VBC VCA
KVA KW PF
IA IB IC
***
*** *** ***
******
*** ******
FREQ
***
Figure 8---6. Input Meter Screen
The Output screen shows the phase-to-neutral voltage, phase current, and
frequency, being supplied by the UPS, followed by the KVA, KW, and power factor
measurements.
OUTPUT
VA
VB VC
KVA KW PF
IA IB IC
***
*** *** ***
******
*** ******
FREQ
***
Figure 8 ---7. Output Meter Screen
