POWERWINCH MOTORIZED FOLDING CAMPER WINCH
7

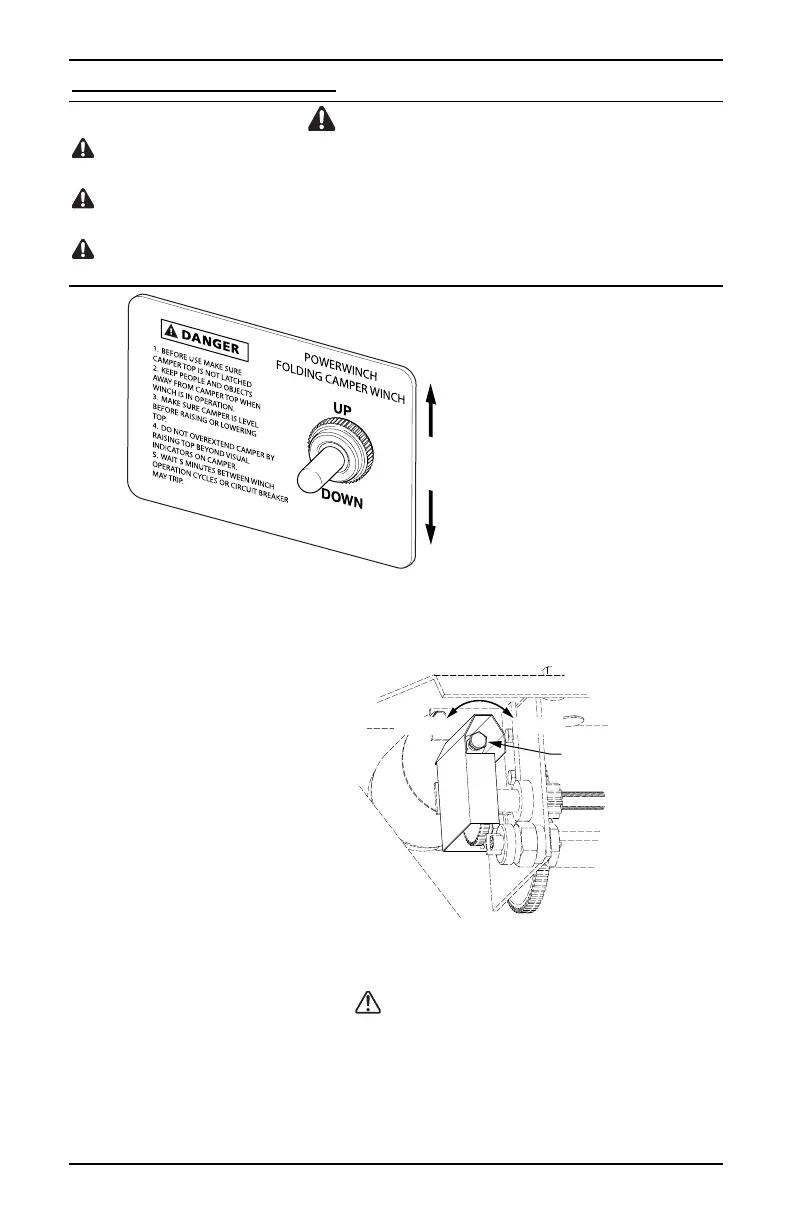

OPERATING THE WINCH
WARNINGS
The camper must be on a hard surface and leveled before raising or
lowering the top.
Make sure that the travel latches for the camper top ARE RELEASED before
operating the winch to raise the camper top.
The winch has a 5-minute duty cycle. Wait at least 5 minutes between each lifting
cycle. Running the winch continuously will damage the motor and gears.
Press Up and Hold to
RAISE the camper top
Press Down and Hold to
LOWER the camper top
pwFCW007
P30019
..
MANUAL OVERRIDE
In the case of a power failure, (battery is discharged or missing), the winch can
be operated manually to raise or lower the camper top.
1. Locate the manual drive bolt
located at the end of the
motor drive shaft inside the
gear cover.
NOTE: Remove and save
the gear grease inside the
gear cover to see the bolt.
The grease must be
replaced after completing
the operation.
2. Using a 7/16" socket, turn
the bolt clockwise to raise
the top; counterclockwise to
lower the top.
CAUTION
IF USING AN ELECTRIC DRIVER (I.E. DRILL) FOR THE SOCKET, USE CARE TO NOT
OVEREXTEND THE TOP WHEN RAISING OR OVERWIND WHEN LOWERING THE TOP
. OVER
WINDING CAN CAUSE DAMAGE TO THE WINCH MOTOR AND GEARS
.
3. After using the manual bypass, be sure to repack the grease removed to
access the bolt. Refer to the maintenance section for information on
lubrication.
Raise
Lower
Manual Drive Bolt
Use a 7/16” Socket
pwFCW008
