page no. 22 of 68
CPx Range Users, Installation & Servicing Instructions Doc Ref M201 issue 2.9 Nov 2018.

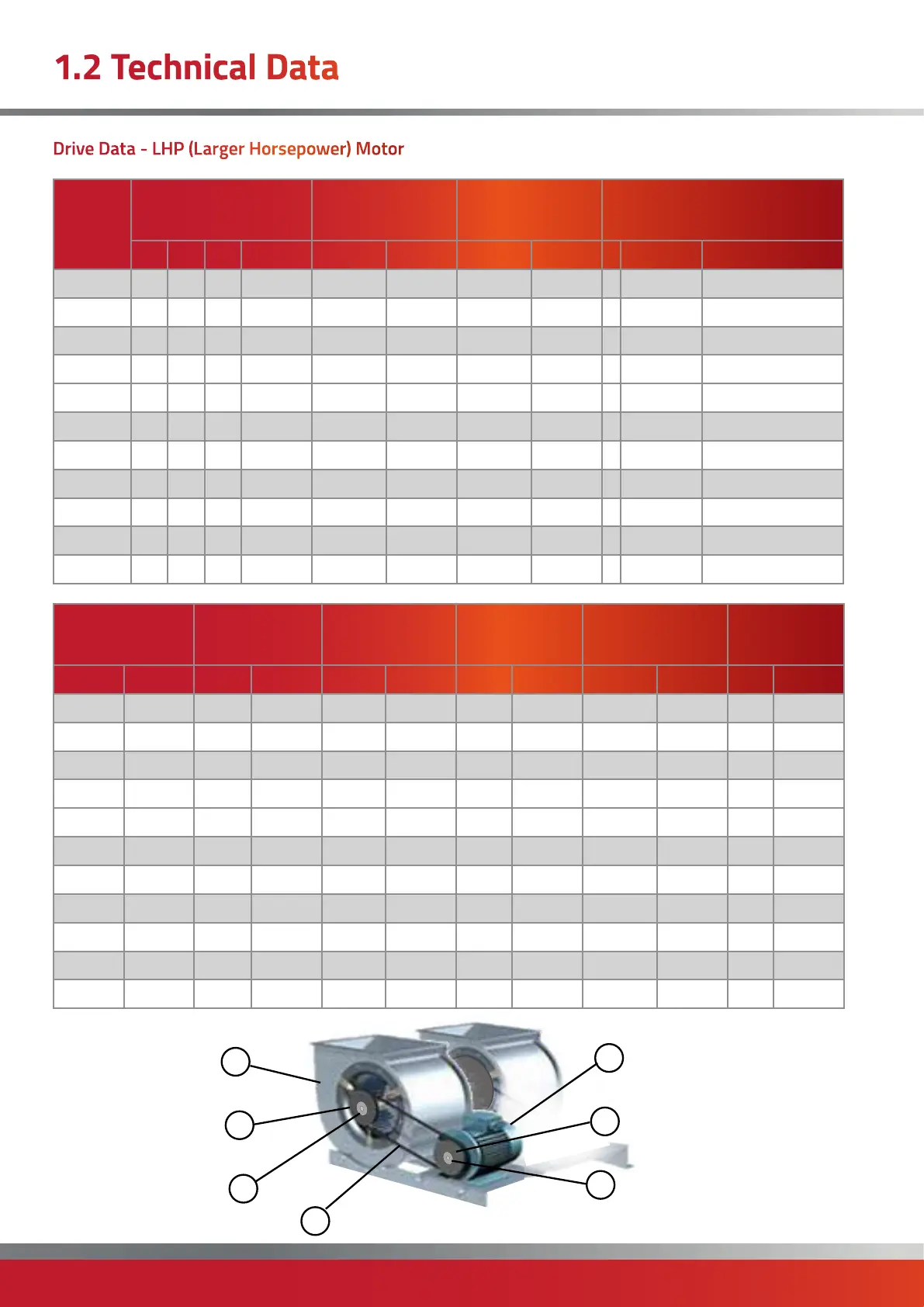

Drive Data - LHP (Larger Horsepower) Motor
MODEL
Motor (a) Motor Pulley (b)
Motor Pulley
TaperLock (c)
Centrifugal Fan (d)
kW Pha RPM Pt no. Size Pt no. Size Pt no.
type
Size Pt no.
CPx30
0.75 1 1500 140001520 95x1 SPA 142000602 1210-24 142003350 2 321 x 321 1402CFAN240/T
CPx45
0.75 1 1500 140001520 95x1 SPA 142000602 1210-24 142003350 2 321 x 321 1402CFAN240/T
CPx60
2.2 1 1500 140001998 170x1 SPA 142001689 1610-24 142003360 2 381 x 381 1402CFAN510/T
CPx90G
2.2 1 1500 140001998 180x1 SPA 142001675 1610-24 142003360 2 381 x 381 1402CFAN510/T
CPx90O
1.5 1 1500 140001908 170x1 SPA 142001689 1610-24 142003360 2 381 x 381 1402CFAN510/T
CPx120
3.0 3 1500 140002055 95x1 SPA 142000602 1210-28 142003856 2 457 x 486 1402CFAN820/T
CPx150
4.0 3 1500 140002108 100x1 SPA 142000601 1610-28 142161028 2 457 x 486 1402CFAN820/T
CPx175
5.5 3 1450 140002206 95x1 SPA 142000602 1210-28 142003856 2 457 x 486 1402CFAN820/T
CPx200
5.5 3 1450 140002206 100x1 SPA 142000601 1610-28 142003655 2 457 x 486 1402CFAN820/T
CPx250
5.5 3 1450 140002206 170x1 SPA 142001689 1610-28 142003655 3 381 x 381 x2 1402CFAN510/T/2DECK
CPx300
11.0 3 1500 140002610 140x2 SPA 142001013 2012-42 142201242 3 381 x 381 x2 1402CFAN510/T/2DECK
Fan Pulley (e)
Fan Pulley
TaperLock (f)
Belt(s) (g) Fuse
Contactor/Relay/
Soft Start
Overload
Size Pt no. Size Pt no. Size Pt no. T (A) Pt no. Type Pt no. Type Pt no.
170x1 SPA 142001689 1610-25 142003370 A1020/44 142111504 6A 140700046 JOX 143000816 n/a n/a
180x1 SPA 142001675 1610-25 142003370 A1020/44 142111504 6A 140700046 JOX 143000816 n/a n/a
280x1 SPA 142002604 2012-25 142201225 A1690/65 142116903 12A 140700042 5.5kW AC3 143000601 12-18A 143000800
280x1 SPA 142002604 2012-25 142201225 A1690/65 142116903 n/a n/a 5.5kW AC3 143000601 12-18A 143000800
280x1 SPA 142002604 2012-25 142201225 A1690/65 142116903 12A 140700042 JOX 143000816 n/a n/a
200x1 SPA 142001825 2012-25 142201225 XPA1700 142119742 n/a n/a 5.5kW AC3 143000601 5-8A 143000802
200x1 SPA 142001825 2012-25 142201225 XPA1700 142119742 n/a n/a 5.5kW AC3 143000601 7-11A 143000801
160x1 SPA 142001619 1610-25 142003370 XPA1632 142119730 n/a n/a 7.5kW MCI 143000620 9-13A 143000828
160x1 SPA 142001619 1610-25 142003370 XPA1632 142119730 n/a n/a 7.5kW MCI 143000620 9-13A 143000828
280x1 SPA 142002604 2012-25 142201225
XPA1700 142119742 n/a n/a 7.5k W MCI 143000620 9-13A 143000828
190x2 SPA 142001823 2012-25 142201225 XPA1550 142119725 n/a n/a 11.0KW MCI 143000621 17-24A 143000807
a
b
c
d
e
f
g
Fan type 3
1.2 Technical Data
