page no. 8 of 68
CPx Range Users, Installation & Servicing Instructions Doc Ref M201 issue 2.9 Nov 2018.
Notes -
• Flue tee provided as standard.
Model 30 45 60 90 120 150 175 200 250 300
A All mm 732 732 927 927 1200 1200 1399 1399 1599 1599
B All mm 669 669 744 744 904 904 904 904 1104 1104
C All mm 1767 1767 1895 1895 2149 2149 2265 2265 2265 2265
D All mm ø 125 125 150 150 150 175 175 175 200 200
E All mm 150 150 150 150 150 200 200 200 240 240
F All mm 1535 1535 1661 1661 1923 1923 2021 2021 2021 2021
G All mm 864 864 944 944 1122 1122 1122 1122 1122 1122
H
Gas mm 276 276 252 280 280 280 300 300 300 508
Oil mm 196 202 202 228 228 228 228 247 247 508
J All mm 238 286 286 340 340 340 400 442 558 558
J1 All mm n/a n/a 581 672 672 672 788 875 1007 1007
K All mm 180 234 234 287 287 287 333 381 431 431
K1 All mm n/a n/a n/a n/a 333 333 n/a n/a n/a n/a
L
Duct
Spigot
mm 632 632 824 824 1100 1100 1299 1299 1499 1499
M mm 569 569 644 644 804 804 804 804 1004 1004
Head Plan 1 1 2 2 3a 3a 3b 3b 3b 3b
B
A
H

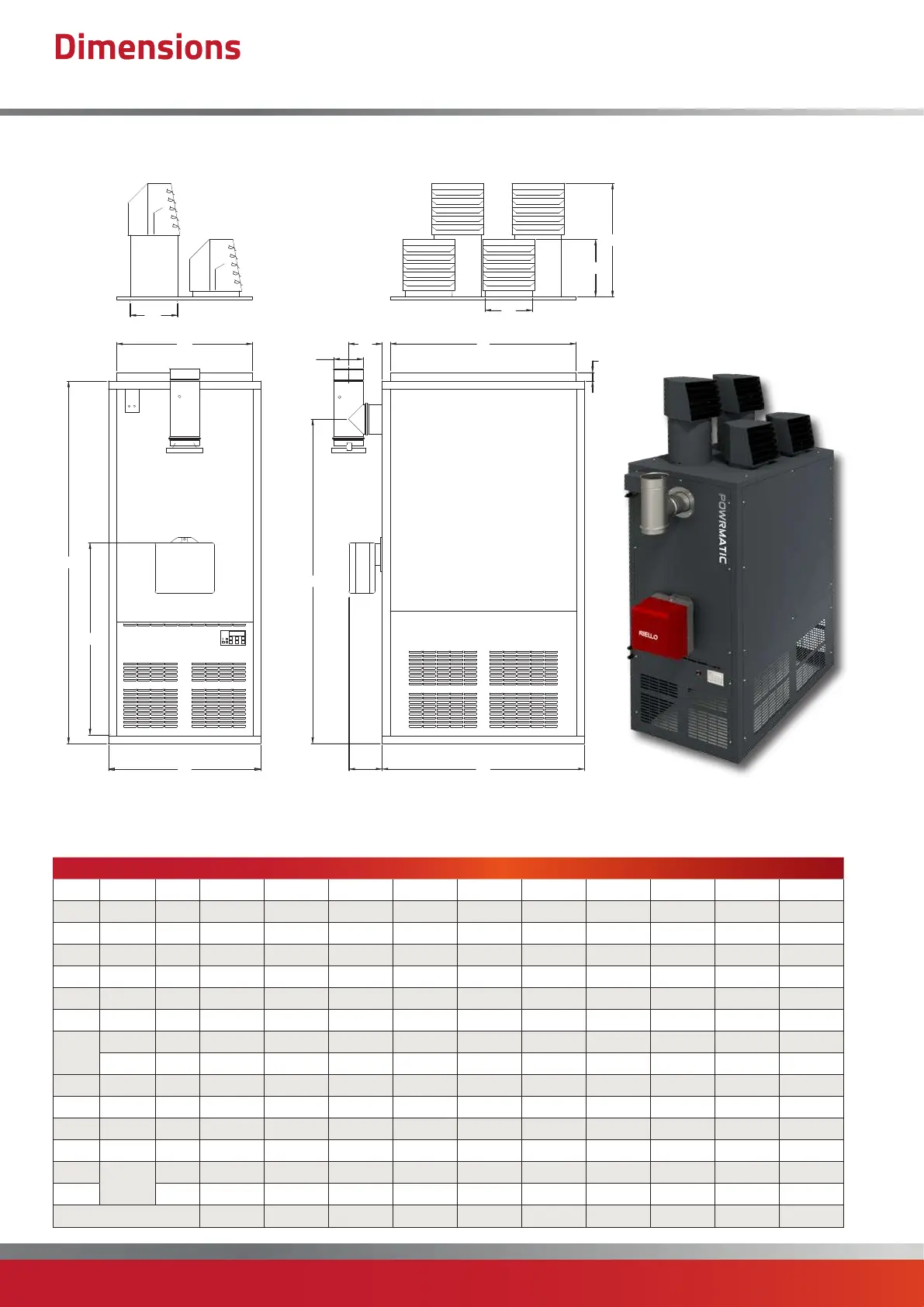

Dimensions
CPx UD/UF Upright Free Blowing Upright Ducted (30-300)
M
C
G
F
ØD
E
L
50
K
J
J1
K1
