Slide a condense length fully into the exhaust air spigot
and 250mm standard length fully into the combustion air
spigot of the heater (a smear of paraffin will ease fitting).
Place an adjustable length locking band onto each end of
the condense and 250mm standard length ensuring
the rubber gasket is the correct way round (see section
2.2.3.3). Do not tighten at this stage.
Slide an adjustable length section into each of the ends of
the condense and 250mm standard length.
Allow a suitable distance for each adjustable length to
slide backwards - to release the flue in the event that the
flue needs to be separated in future.
Extra lengths of standard flue can now be added between
the adjustable length and the terminal adaptor (ski boot) if
required. Clamp all extra lengths with locking bands.
Prior to connection to the terminal adaptor, place an
adjustable length locking band onto the end of the exhaust
flue pipe only.
Ensure that the exhaust air connects to the internal tube
of the terminal adaptor (heal of the ski boot) and the fresh
air inlet connects to the outer flue of the terminal adaptor
(toe of the ski boot).
Clamp the adjustable length locking band onto the exhaust
flue connection of the terminal adaptor (ski boot).
Once all flue components are correctly in place, lock the
adjustable length locking bands back at the adjustable
length sections.
NOTE: Refer to the following typical
breakdown sketch to aid with the above
procedures.

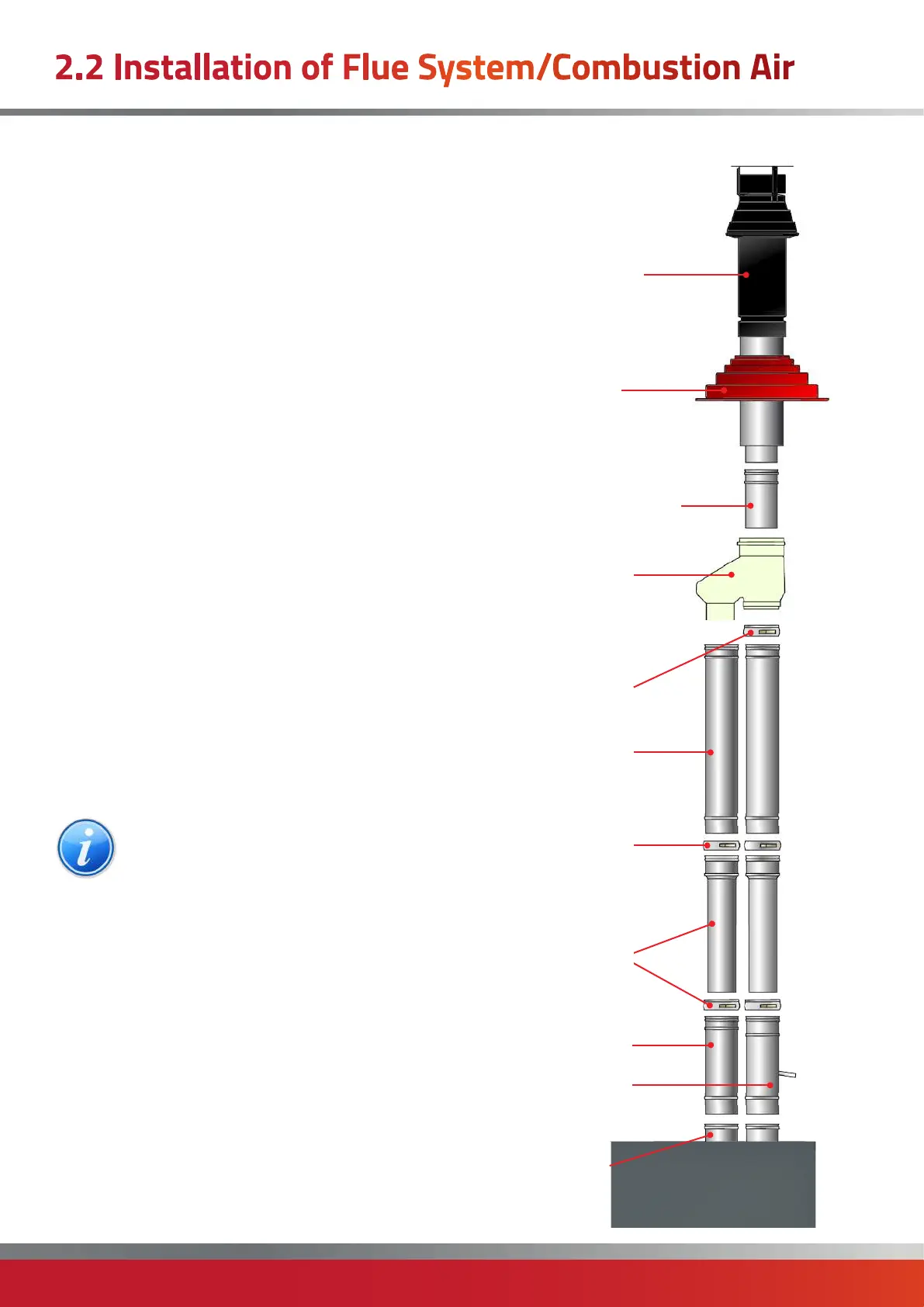

Vertical Roof Terminal
Silicone Flashing
Connection Length
Adapter (Ski Boot)
Adjustable Length
Locking Band
Additional Flue
Lengths (as required)
250mm Length
Heater
Condensate Length
Adjustable Lengths
c/w Locking Bands
Heater Spigots
Extra Locking Bands
(as required)
Typical Vertical Balanced Flue
type C32 - exploded view
