Powtran PI500-S Series User Manual

10
第
十
章
Chapter 3
Chapter 3 Keyboard
3-1.Keyboard description

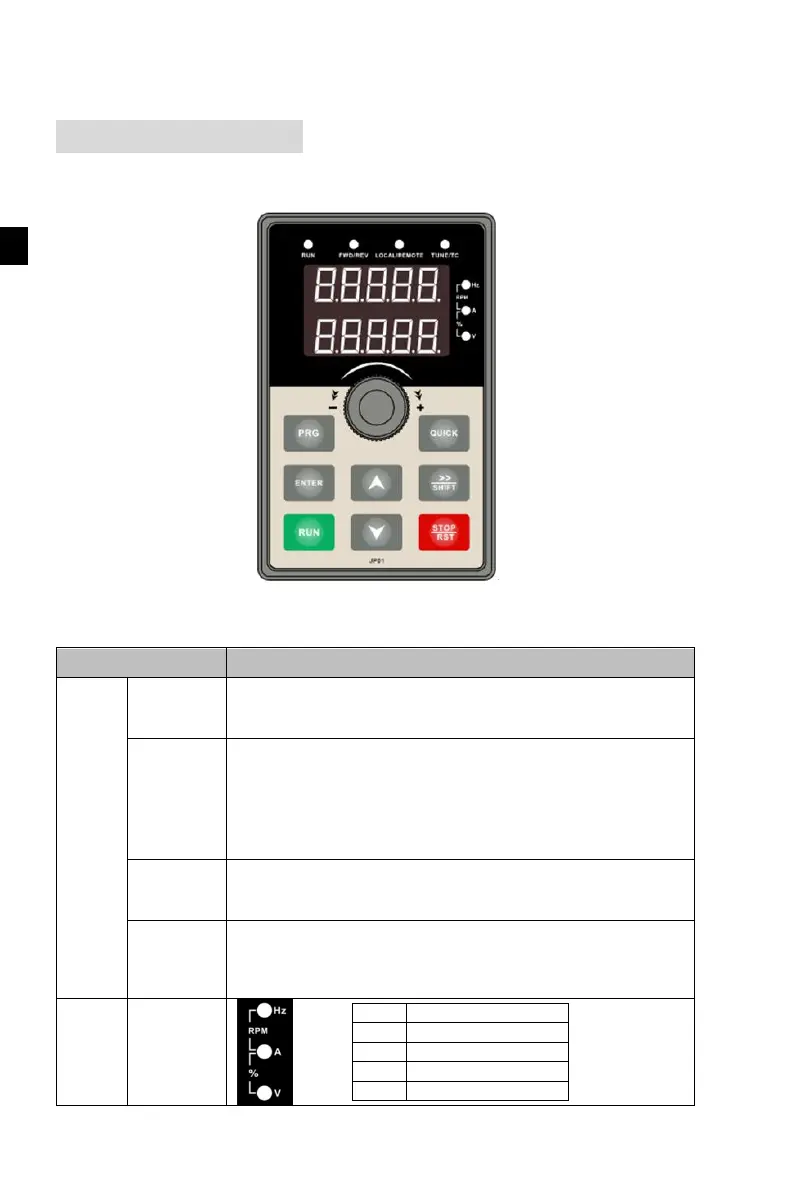

Figure 3- 1 Operation panel display
3-2.Keyboard indicators
Indicator flag
Name
Status lamp
RUN
Running indicator light
* ON: the inverter is working
* OFF: the inverter stops
LOCAL/R
EMOTE
Command indicator light
That is the indicator for keyboard operation, terminal operation and
remote operation (communication control)
* ON: terminal control working status
* OFF: keyboard control working status
* Flashing: remote control working status
FWD/REV
Forward/reverse running light
* ON: in forward status
* OFF: in reversal status
TUNE/TC
Motor self-learning/Torque control/Fault indicator
* ON: in torque control mode
* Slow flashing: in the motor tuning status
* Quick flashing: in the fault status
Units
combinatio
n indicator
HzAV
Hz
frequency unit
A
current unit
V
voltage unit
RPM
speed unit
%
percentage
