PPI HumiTherm-c Series User Manual

45
DESCRIPTIONS

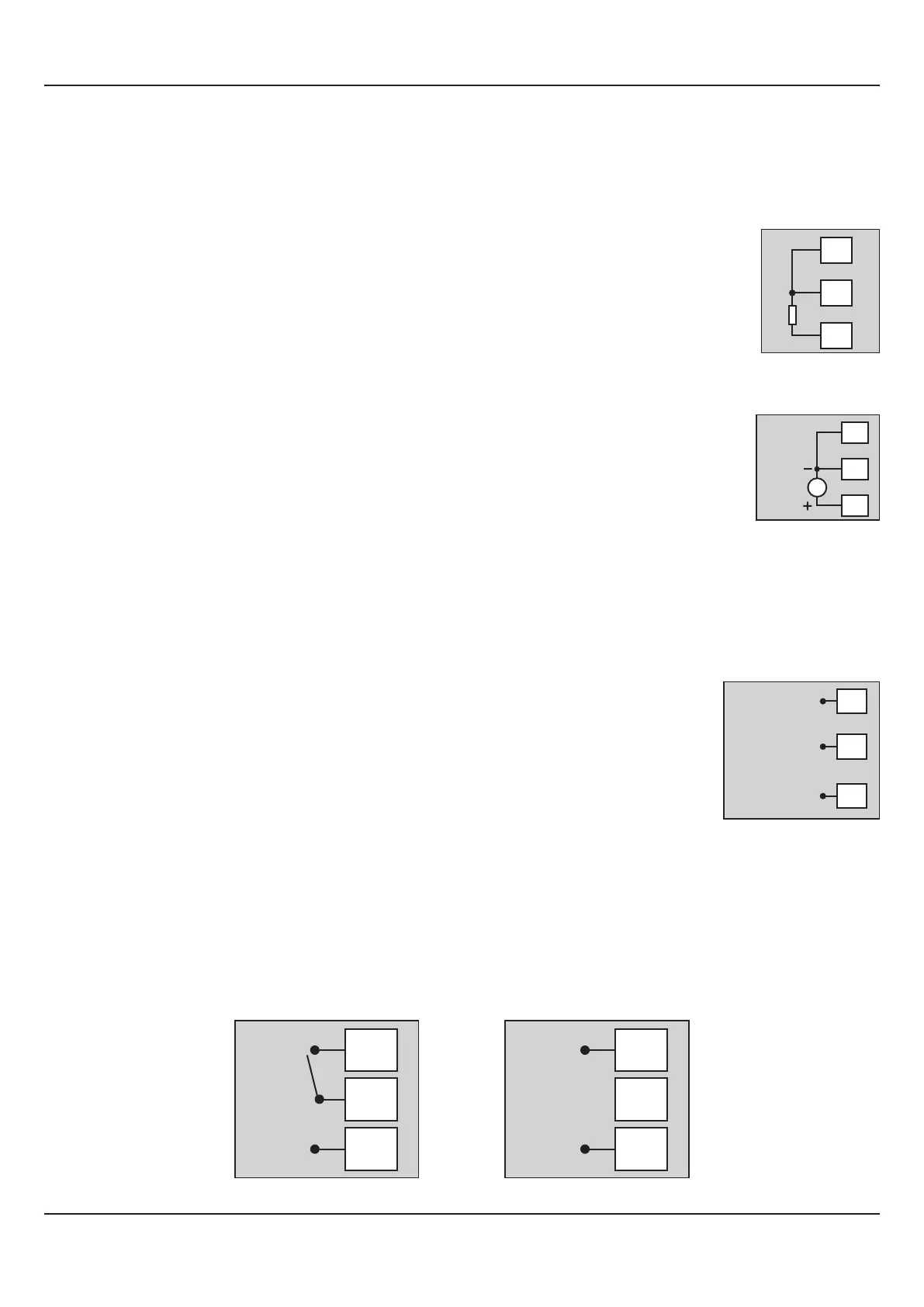

INPUT-1 : RTD Pt100, 3-Wire (Terminals 1, 2 and 3)
The controller accepts 3-wire RTD Pt100 as input for measuring Dry Bulb Temperature Value.
Connect single leaded end of RTD bulb to terminal 1 and the double leaded ends to terminal 2 and 3
(interchangeable) as shown in Figure 12.2 (a). Use copper conductor leads of very low resistance
for RTD connections. Ensure that all 3 leads are of the same gauge and length. Use single run
cables avoiding any intermediate joints.
Figure 12.2 (a)
3
2
1
OUTPUT-1 (HEATING) & OUTPUT-2 (HUMIDIFICATION)
The Output-1 and Output-2 are configured for DC Voltage capable of switching the external SSR (Solid State Relay) or Relay.
Use Zero-Crossover, 3 to 30 VDC operated SSR, rated approximately 1.5 times the actual load rating. In case of relay, use
Relay with coil rated for 5VDC. The terminals for output-1 & output-2 are as shown in Figure 12.3.
HEATING (Terminals 4 & 6)
Connect terminals 6 & 4 to SSR (+) & (-) respectively OR to the relay coil.
HUMIDIFICATION (Terminals 5 & 6)
Connect terminals 6 & 5 to SSR (+) & (-) respectively OR to the relay coil.
Figure 12.3
6
5
4
5VDC Voltage for
SSR / Relay coils
Open Collector (OC2)
for SSR-2/Relay-2
(Humidification)
Open Collector (OC1)
for SSR-1/Relay-1
(Heating)
OUTPUT- 3 (Terminals 7,8 and 9)
The Output-3 module (if fitted) can be configured as either Relay or SSR Drive for Alarm or Compressor Control output. The
configuration is through hardware jumper settings on the module as described in Section 8: Hardware Assembly And
Configurations.
The terminals for Relay, DC Voltage pulses output for SSR output are shown in Figure 12.4 (a) & 12.4 (b), respectively.
Figure 12.4 (a)
9
8
7
N/O
C
N/C
Figure 12.4 (b)
9
8
7
+
_
INPUT-2 : DC Linear Voltage (Terminals 16,17 & 18)
Connect Positive (+) of DC Linear from RH Sensor to terminal 16 and Negative (-) to terminals 17 as
shown in the Figure 12.2 (b). Terminal 18 provides +5VDC @ 20mA excitation supply for the
transmitter. Use copper conductor leads of very low resistance for connections. Use single run
cables avoiding any intermediate joints.
Figure 12.2 (b)
18
17
16
DC Linear
from RH
Sensor
+5VDC
Exicitation
