8
OPERATION
FUEL VALVE
Fuel filling
The capacity of the fuel tank is 6.0L. Unscrew the gas cap by turning it counter clockwise and
carefully fill the tank with unleaded gasoline through the opening. DO NOT MIX GAS AND OIL
TOGETHER, THIS IS A 4-STROKE ENGINE. Replace the gas cap by carefully aligning the threads
on the cap and the tank and turning the cap clock wise. Wipe any spilled fuel from the dirt bike
using a cloth and dispose of the cloth properly. DO NOT SMOKE OR REFUEL THE VEHICLE NEAR
OPEN FLAMES OR NEAR HEATING UNITS.
ONLY REFUEL THE VEHICLE IN OPEN AREAS TO REDUCE THE LIKELIHOOD OF THE BUILD UP OF
GASOLINE FUMES.

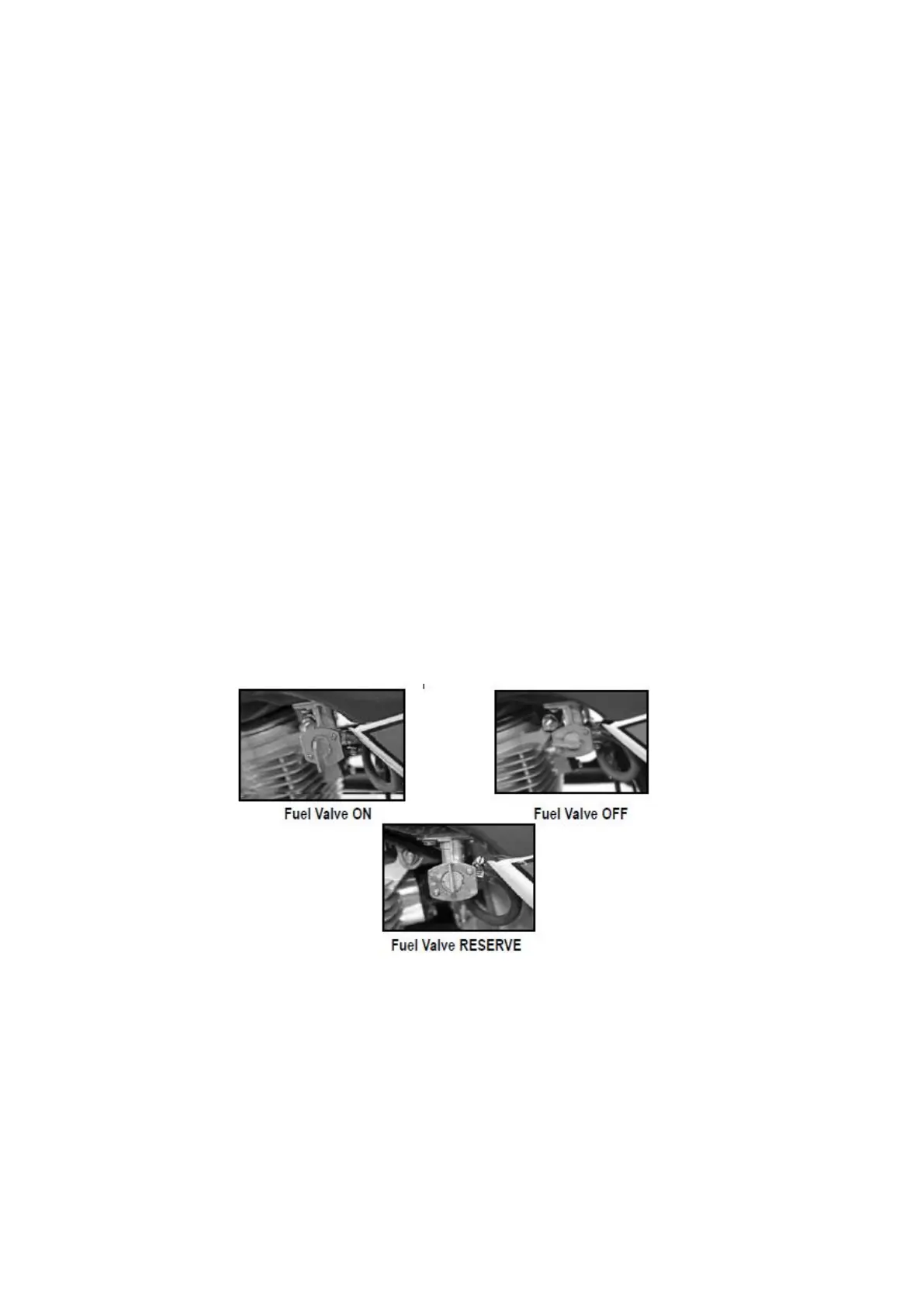

Operation of the fuel valve (the valve under the fuel tank)
ON: With the handle of the fuel valve at “ON” position, the fuel supply will flow to the carburetor.
OFF: With the handle of the fuel valve at “OFF” position, the fuel supply will not flow to the
carburetor.
RES: If fuel level in the fuel tank becomes too low for engine to stay running while fuel valve is at
“ON” position, turn fuel valve to “RESERVE”. Turning fuel valve to “RESERVE” will allow engine to
begin using reserve fuel supply.
You will need to re-fuel as soon as possible. There is approximately 1L of fuel left in tank when
fuel valve is placed at “RESERVE”. Once re-fueled, turn fuel valve back to the “ON “ Position
