11

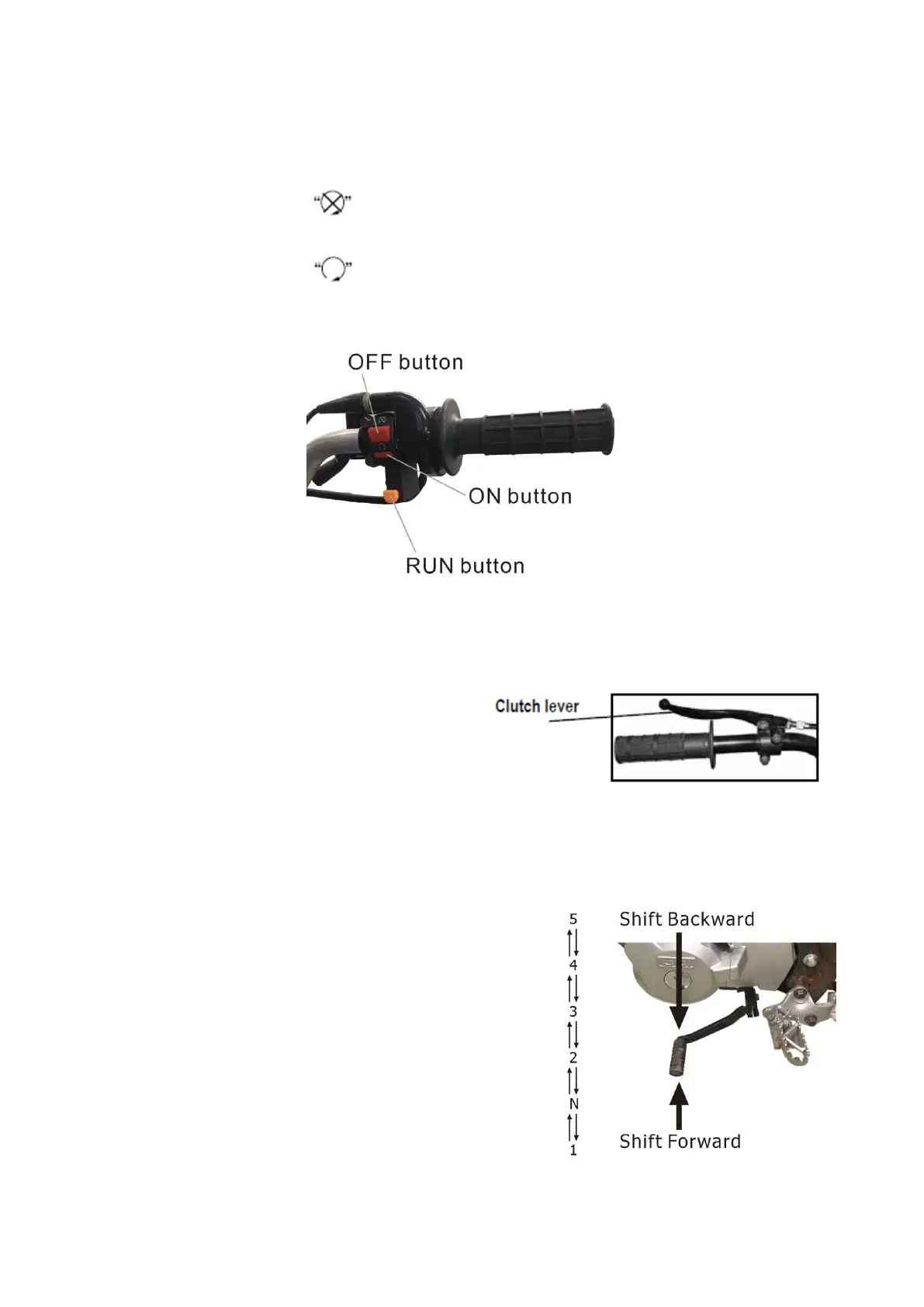

SWITCHES ON RIGHT HANDLEBAR
Ignition switch
The ignition switch is Located on the right handlebar.
When the switch is turned to (off) position, the engine will not start. If the engine is
running and the Off button is pushed the engine will turn off.
When the switch is turned to (on) position, the engine can start by using
the kick start lever.
GEAR SHIFTING
Reduce throttle before shifting. Never increase the
throttle while shifting gears.
Pull in the clutch lever, located on the left hand
grip.
Depress the Shift lever to place the gear in 1st, lift up the lever to shift to 2nd, 3rd, 4th and 5th.
Do not place your foot on the gear-shifting pedal while operating the dirt bike to avoid clutch
damage caused by accidental gear shifting.
Shifting sequence
(1) 1st gear
(N) Neutral
(2) 2nd gear
(3) 3rd gear
(4) 4th gear
(5) 5th gear
