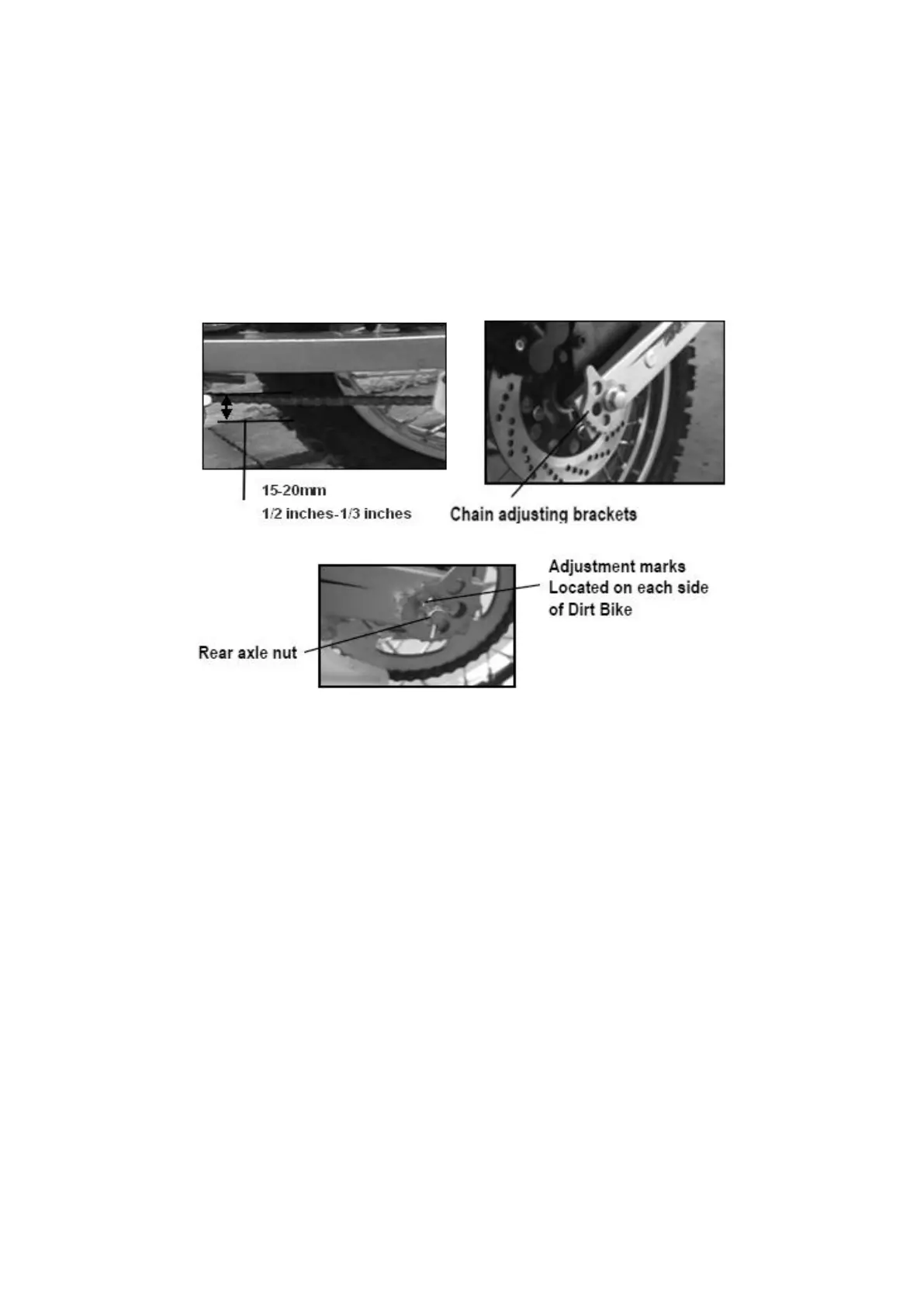

ADJUSTMENT OF CHAIN

1. When chain adjustment is needed, loosen rear axle nut .

2. Turn the chain adjusting brackets on the left and right sides to adjust the tension of the chain

and to align the marking of the chain adjuster with the engraved lines in the similar position on

both sides.

3. Tighten rear axle nut by a torque of 50-60Nm (37-44 ft.lb.).

4. Repetitively check the tension of the chain.

GREASING PROCEDURES TO THE DRIVING CHAIN

1. Shut off the engine

2. Add light amounts of machine oil or chain grease to the driving chain.

(Too much machine oil or chain grease may cause splattering to occur.)

Attention:

The chain should be replaced when the adjusting limit has reached it’s maximum.
