PR electronics 2261 Product Manual

2261V103-UK 9

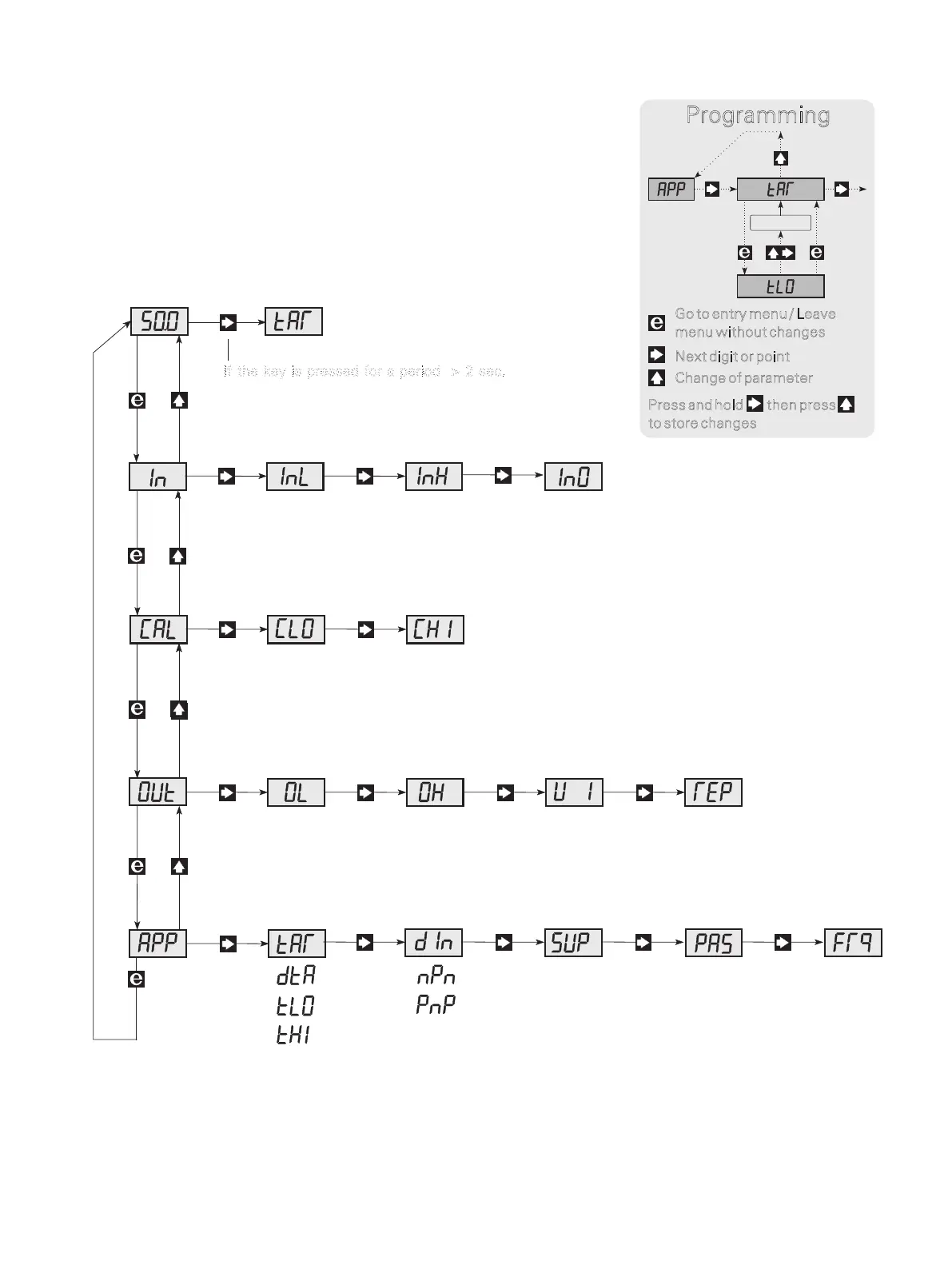

Routing diagram
0 . 0
5 . 0
5 . 1
5 . 5
4 . 0
4 . 1
5 . 2
5 . 3
1 . 0
1 . 3
3 . 0
3 . 1
3 . 2
1 . 1
1 . 2
4 . 2
4 . 3 4 . 4
5 . 4
0 … 9 9 9
Taring
If no buttons are pressed for a period of 2 minutes,
display returns to stage 0.0
040 = enable change in all stages
- - - = disable change
Routing diagram
Taring
Select
application
Frequency
suppression
50 Hz
60 Hz
Analog
output Output 0%
Transducer supply
0.06...999 s
Response
time
Password code
Input
High cal. % Calibration
Overrange
Digital input
type
Current or
Voltage
001 = 0...10 mA
002 = 0...20 mA
003 = 0...500 mV
004 = 0...1000 mV
005 = 0...5 V
006 = 0...10 V
Output 100%
Program
access
5.0...13 VDC
If the key is pressed for a period > 2 sec.
Input 0%
0...20.0 mA
0...10.0 VDC
0...20.0 mA
0...10.0 VDC
Low cal. %
0...999% of span
0...100%
0...100%
Input 100%
-40...100 mV -40...100 mV
5.1
5.0
Memory
Programming
Press and hold , then press
to store changes
Change of parameter
Next digit or point
Go to entry menu / Leave
menu without changes
