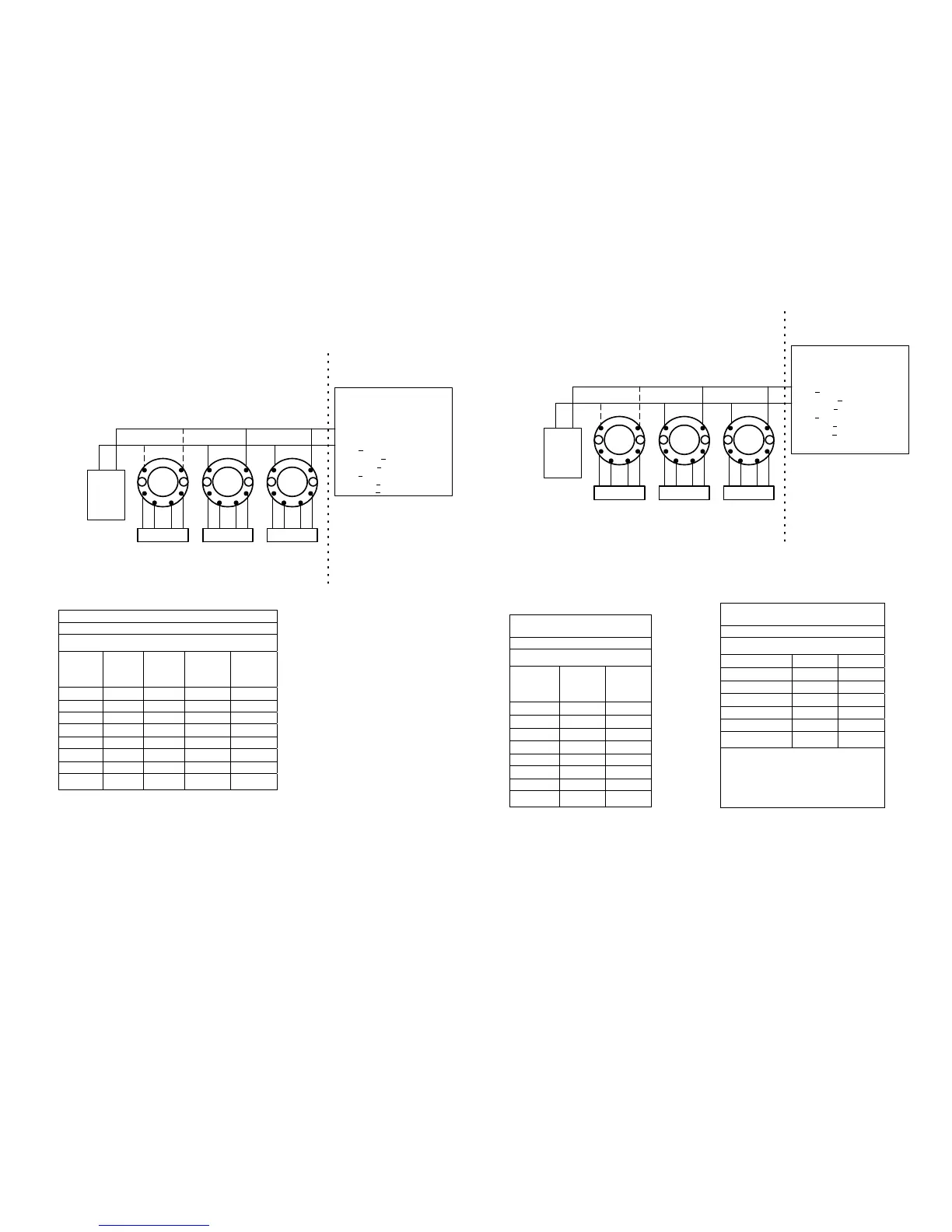

Installation Drawing 5350QE01.
See Installation notes.
Terminal 1,2
Class I, Zone 0, Ex ia IIC, Entity / FISCO
IS, Class I, Division 1, Group A, B, C, D
Entity / FISCO
Barrier
type:
Linear
barrier
Trapezoid
barrier
Suitable for
FISCO
systems
Suitable for
FISCO
systems
T1..T4:
Ta  +85CTa +75CTa +85CTa +85C
T5:
Ta  +70CTa +65CTa +60CTa +60C
T6:
Ta  +60CTa +45CTa +45CTa +45C
Vmax or Ui 30 V 30 V 17.5 V 15 V
Imax or Ii 120 mA 300 mA 250 mA 900 mA
Pi 0.84 W 1.3 W 2.0 W 5.32W
Ci 2.0 nF 2.0 nF 2.0 nF 2.0 nF
Li
1

H1

H1

H1

H
Unclassified Location
Hazardous (Classified) Location
Class I, Division1, Groups, A,B,C,D
OR
Class I, Zone 0, IIC
Associated Apparatus
Barrier or
FISCO Supply
with
entity Parameters:
Approved
Termi-
nation
SENSOR
5350B
1
2
3
45
6
SENSOR
5350B
1
2
3
45
6
SENSOR
5350B
1
2
3
45
6
Terminal 3, 4, 5, 6
Vt or Uo : 5.71 V
It or Io : 8.4 mA
Pt or Po : 12 mW
or Co : 40 uF
La or Lo : 200 mH
UM <
250V
Voc or Uo < Vmax or Ui
Isc or Io < Imax or Ii
Po < Pi
Ca or Co > Ci + Ccable
La or Lo > Li + Lcable
This device must not be
connected to any
associated apparatus
which uses or generates
more than 250 VRMS
Ca
5350QE01.doc 2005-03-16 Rev. AC 2/7
Unclassified Location
Hazardous (Classified) Location
Class I, Division2, Groups, A,B,C,D
OR
Class I, Zone 1, IIC
Associated Apparatus
Barrier with
entity Parameters:
Approved
Termi-
nation
SENSOR
5350B
1
2
3
45
6
SENSOR
5350B
1
2
3
45
6
SENSOR
5350B
1
2
3
45
6
Terminal 3, 4, 5, 6
Vt or Uo : 5.71 V
It or Io : 8.4 mA
Pt or Po : 12 mW
Ca or Co : 40 uF
La or Lo : 200 mH
UM < 250V
Voc or Uo < Vmax or Ui
Isc or Io < Imax or Ii
Po < Pi
Ca or Co > Ci + Ccable
La or Lo > Li + Lcable
or
FISCO Supply
This device must not be
connected to any
associated apparatus
which uses or generates
more than 250 VRMS
Nonincendive Field Wiring
parameters
Terminal 1, 2
NI, Class I, Division 2, Group A, B, C, D
NIFW/ FNICO
T1..T4:
Ta  +85CTa +85C
T5:
Ta  +75CTa +75C
T6:
Ta  +60CTa +60C
Vmax / Ui 30 V 17.5 V
Pi 5.32 W any
Ci 2.0 nF 2.0 nF
Li
1

H1

H
For a current-controlled circuit the
parameter Imax is not required and
need not be aligned with the parameter
Isc or It of the barrier or associated
nonincendive field wiring apparatus.
Entity
Parameters
Terminal 1, 2
Class I, Zone 1, Ex ib IIC
Entity / FISCO
Barrier type: Rectangular
barrier
FISCO
Segment
coupler
T1..T4:
Ta  +85CTa +85C
T5:
Ta  +75CTa +75C
T6:
Ta  +60CTa +60C
Vmax / Ui 30 V 17.5 V
Imax or Ii 250 mA any
Pi 5.32 W any
Ci 2.0 nF 2.0 nF
Li
1

H1

H
See Installation notes.
