PROGRAMMABLE LED INDICATOR
PREVIEW 5714
• 4-digit 14 segment LED indicator
• Input for mA, V, Pt100, TC and potentiometer
• 2 relays and analogue output
• Universal voltage supply
• Front key programmable
Application:
• Display for digital readout of current, voltage, temperature or potentiometer
signals.
• Process control with 2 pairs of potential-free relays and / or analogue output.
• For local readout in extremely wet atmospheres with a specially designed
splash-proof cover.
Technical characteristics:
• 4-digit LED indicator with 13.8 mm 14 segment characters. Max. display read-
out -1999...9999 with programmable decimal point, relay ON / OFF indication.
• All operational parameters can be adjusted to any application by use of the
front keys.
• PReview 5714 is available fully-configured acc. to specifications ready for pro-
cess control and visualisation.
• In versions with relay outputs the user can minimise the installation test time
by activating / deactivating each relay independently of the input signal.
Mounting:
• To be mounted in front panel. The included rubber packing must be mounted
between the panel cutout hole and the display front to obtain IP65 (NEMA 4)
tightness. For extra protection in extreme environments, PReview 5714 can
be delivered with a speially designed splash-proof cover as accessory.
27
FRONT AND BACK LAYOUT

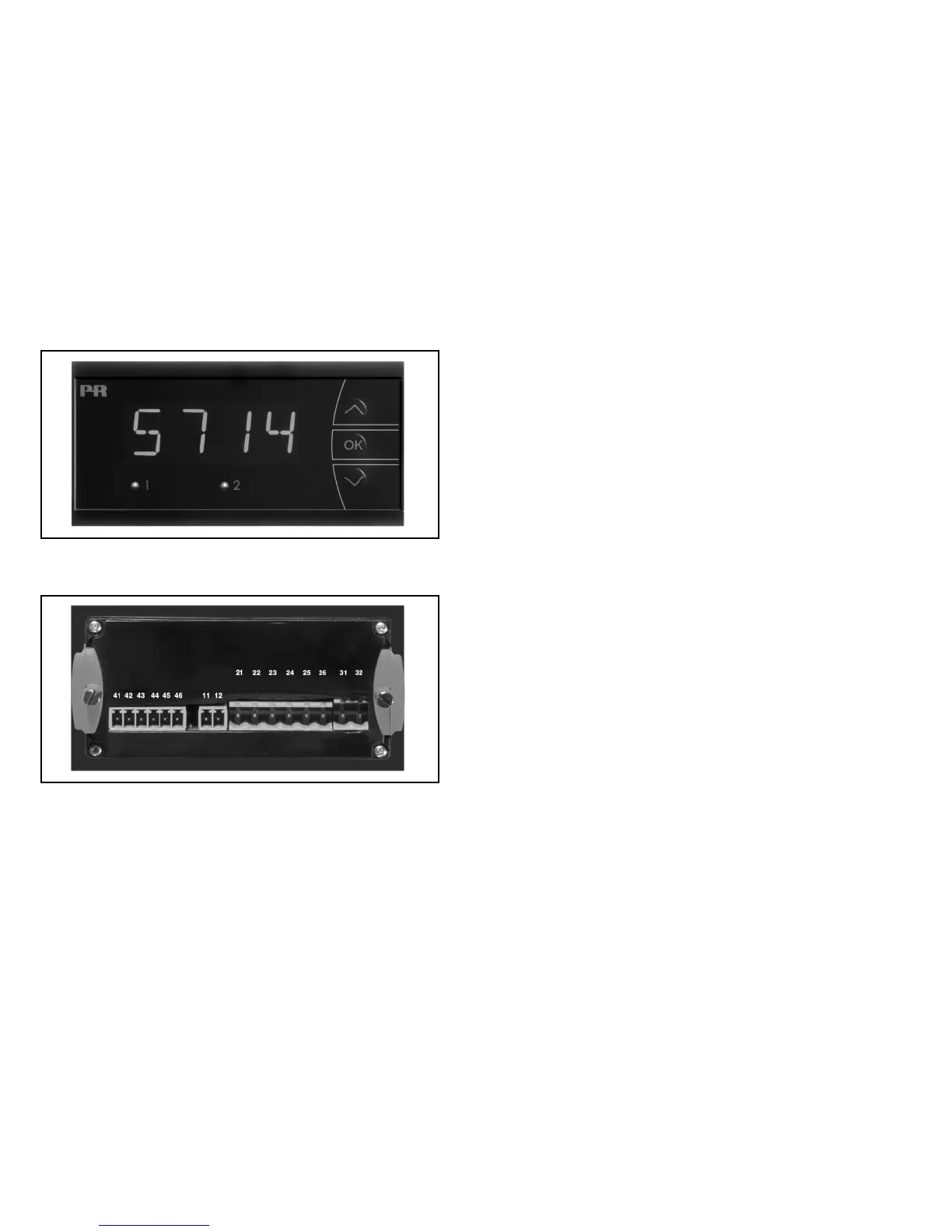

Picture 1: Front of PReview 5714.
Picture 2: Back of PReview 5714.
