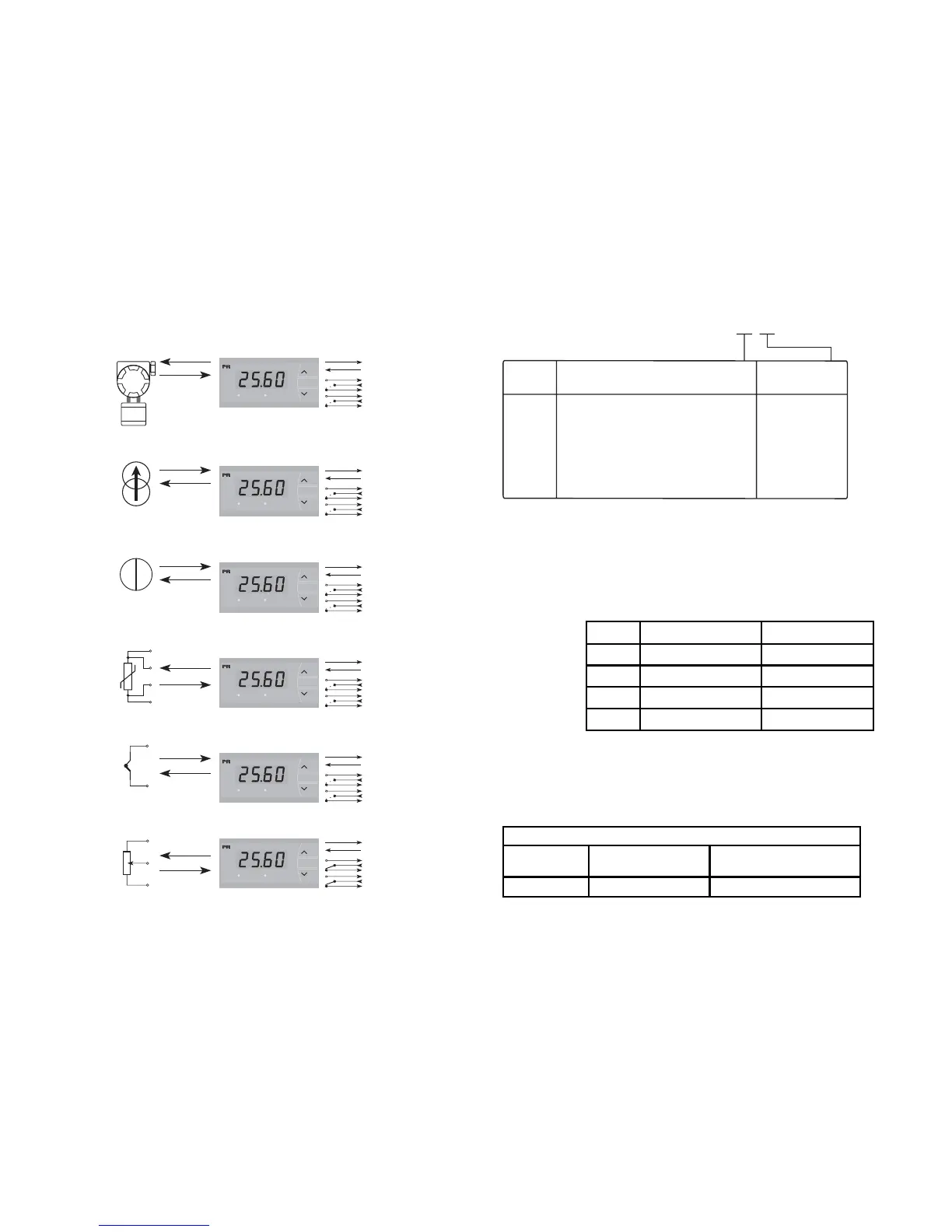

PR electronics 5714 User Manual

NB! Please order the splash-proof cover seperately. Order No. 8335.
Electrical specifications:
Specifications range:
-20°C to +60°C
Common specifications:
Supply voltage, universal ............................ 21.6...253 VAC
50...60 Hz
19.2...300 VDC
Consumption
Isolation voltage, test / operation .............. 2.3 kVAC / 250 VAC
Signal- / noise ratio .................................... Min. 60 dB (0...100 kHz)
Response time (0...90 %, 100...10 %):
Temperature input ................................. < 1 s
Current / voltage input ......................... < 400 ms
Calibration temperature ............................. 20...28°C
Accuracy, the greater of general and basic values:
2928
5714
Type
Order: 5714
Version
Standard : A
2 Relays : B
Analogue output : C
Analogue output and 2 relays : D
Language
English : UK
Dansk : DK
Français : FR
Deutsch : DE
Svenska : SE
Italiano : IT
Español : ES
4...20 mA
4...20 mA
4...20 mA
4...20 mA
+
-
4...20 mA
4...20 mA
1
2
OK
OK
1
2
OK
OK
1
2
OK
OK
1
2
OK
OK
1
2
OK
OK
1
2
OK
OK
Relay 1
Relay 2
TC sensor
Pt100 sensor
Relay 1
Relay 2
Relay 1
Relay 2
Voltage
Relay 1
Relay 2
Current, mA
Relay 1
Relay 2
Relay 1
Relay 2
2-wire transmitter
OutputInput
Potentiometer
General values
Input type
Absolute
accuracy
Temperature
coefficient
All ≤ ±0.1% of reading ≤ ±0.01% of reading / °C
Type Internal consumption Max. consumption
5714A 2.2 W 2.5 W
5714B 2.7 W 3.0 W
5714C 2.7 W 3.0 W
5714D 3.2 W 3.5W
