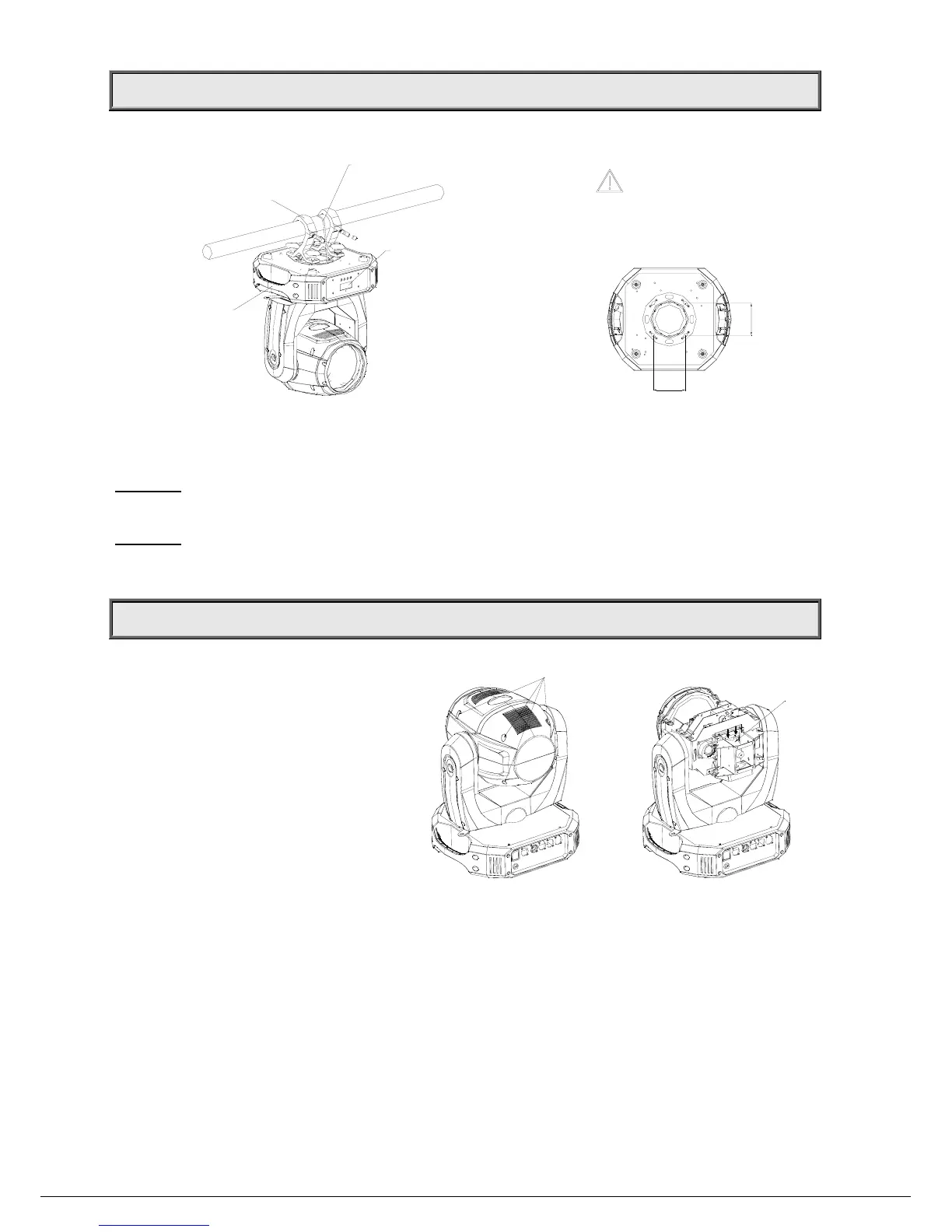

INSTALL THE PROJECTOR
Take 2 clamps and 1 safety cords out from the package and mount 2 clamps on the underside of fixture with 4 retainers
attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the
WARNING
on the underside of the base as shown above) Always ensure that the projector is firmly anchored to avoid
vibration and slipping whilst functioning. Always ensure that the structure that you are going to mount the projector is
secure and is strong enough to support the weight of the fixture.
WARNING
1. The projector MUST be lifted or carried by the HANDLES instead of clamps.
2. For safety the safety cord should support 10 times of the unit’s weight.
FITTING THE LAMP
Unplug the projector from power before lamp
installation or replacement and wait for it to
cool.
Lock the yoke before fitting/replacing the lamp.
Loosen 8 fast-fit screws and remove the back
cover,
you can see the structure as shown in the figure
2..
After unplug the power wires, hold the end of
the lamp and push it as directed by the arrow
resulting in the other end of the lamp
unblocked ,then pull the lamp out. Before
installing new lamp, plug the power wires for the
lamp tightly. Installation of the lamp is an reverse
sequence to the pull-out.
Fit new lamp and close the back cover by fastening 8 fast-fit screws. Note: don’t touch the bulb of the new lamp with
bare hand so as not to influence the beam output; Do not harm the sticking out point of the lamp during its installation.
WARNING: Care should always be taken when handling these lamps. Always read the manufacturers
"Instructions for use" enclosed with the lamp.
CONTROL
PANEL
CLAMP
HANDLE
SAFETY CORD
106
106
WARNING
To pass 1 SAFETY CORD
through 2 holes for safety
FAST-FIT SCREWS
LAMP
A
B
