●TROUBLESHOOTING
PROBLEM
ACTION
The projector doesn’t switch on
 Check the fuse on the power socket.
 Check the lamp.
The lamp is on but the projector doesn’t respond
to the controller
 Make sure that the fixture’s start address is right
 Replace or repair the XLR signal cable.
The projector functions intermittently
 Make sure the fan is working well or fans and their shields are not blocked
Beam appears dim, Low in brightness
 Make sure the lamp is within its lifespan
 Remove dust or grease from the lenses.
The project image appears to have a halo
 Carefully clean the lamp, optical lenses and other components.
Heavily Defective Beam
 Check if lens are in good condition(not cracked)
 Clean dust or grease on the lens.
3. APPEARANCE
4. INSTALLATION
A projector can be placed on the stage floor directly or mounted on a truss at any direction without impacting its performance. Please
use a safety cord, which can support 10 times the weight of the projector, while mounting it on the truss. The safety cord should be
used with magazine with a lock. Just as the figures below, please run the safety cord through the holes at the bottom of the base and
around the truss.
● RIGGING
1. Use M12 bolt to fix the clamp(1) into the omega holder (3), run the bolt through the holder’s holes
2. Push 2 quick-lock fasteners(4) into holes at the bottom of the base, fix them and tighten them clockwise
3.Run safety cord(2) through holes at the bottom of the base and around the truss(6)

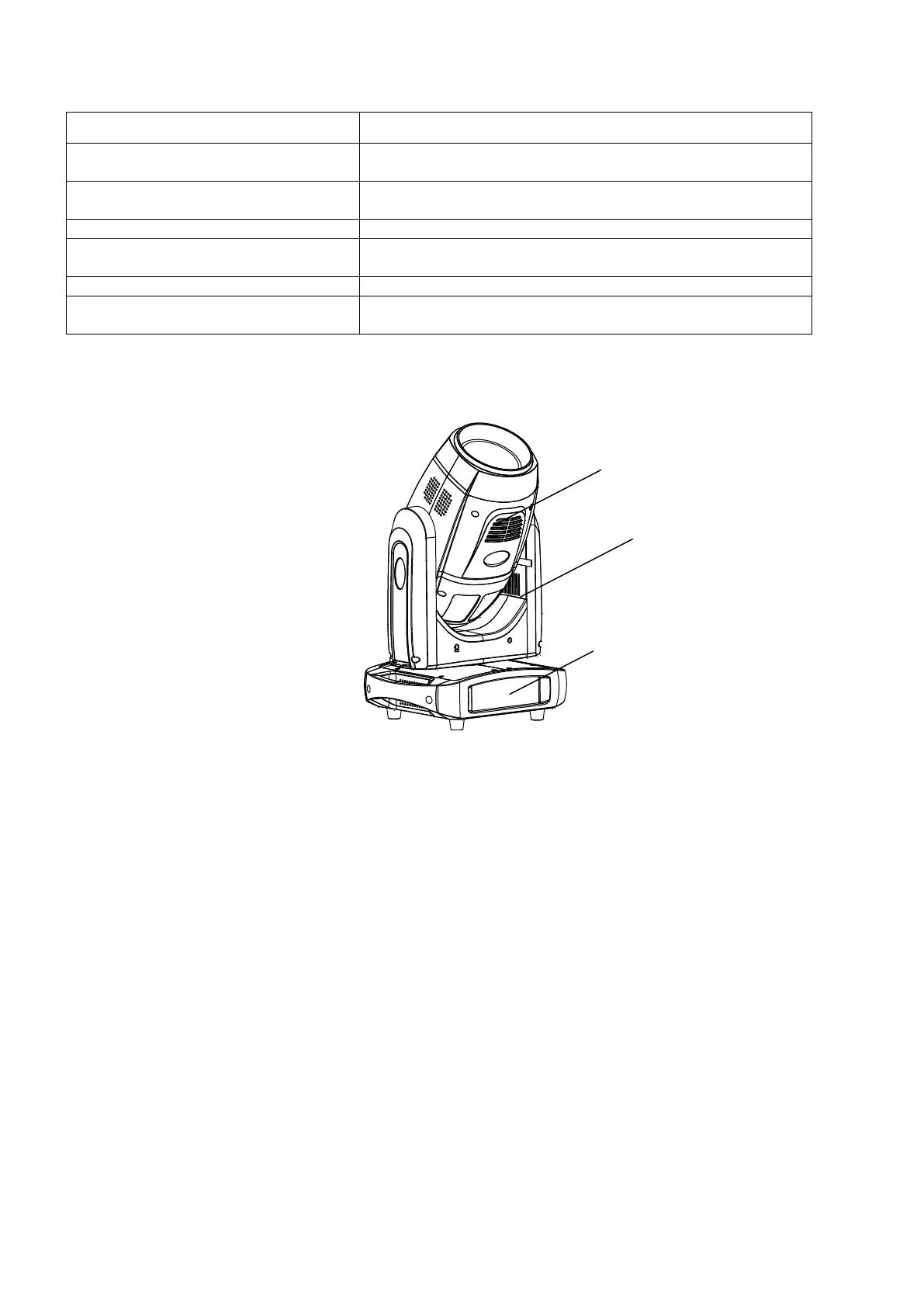

Head
Arm
Base

PR Lighting XR 380 BWS Specifications

General

Brand	PR Lighting
Model	XR 380 BWS
Category	Lighting Equipment
Language	English
