Precision matthews PM-1440GT User Manual

32
Copyright © 2020 Quality Machine Tools, LLCPM-1440GT v9 2020-10

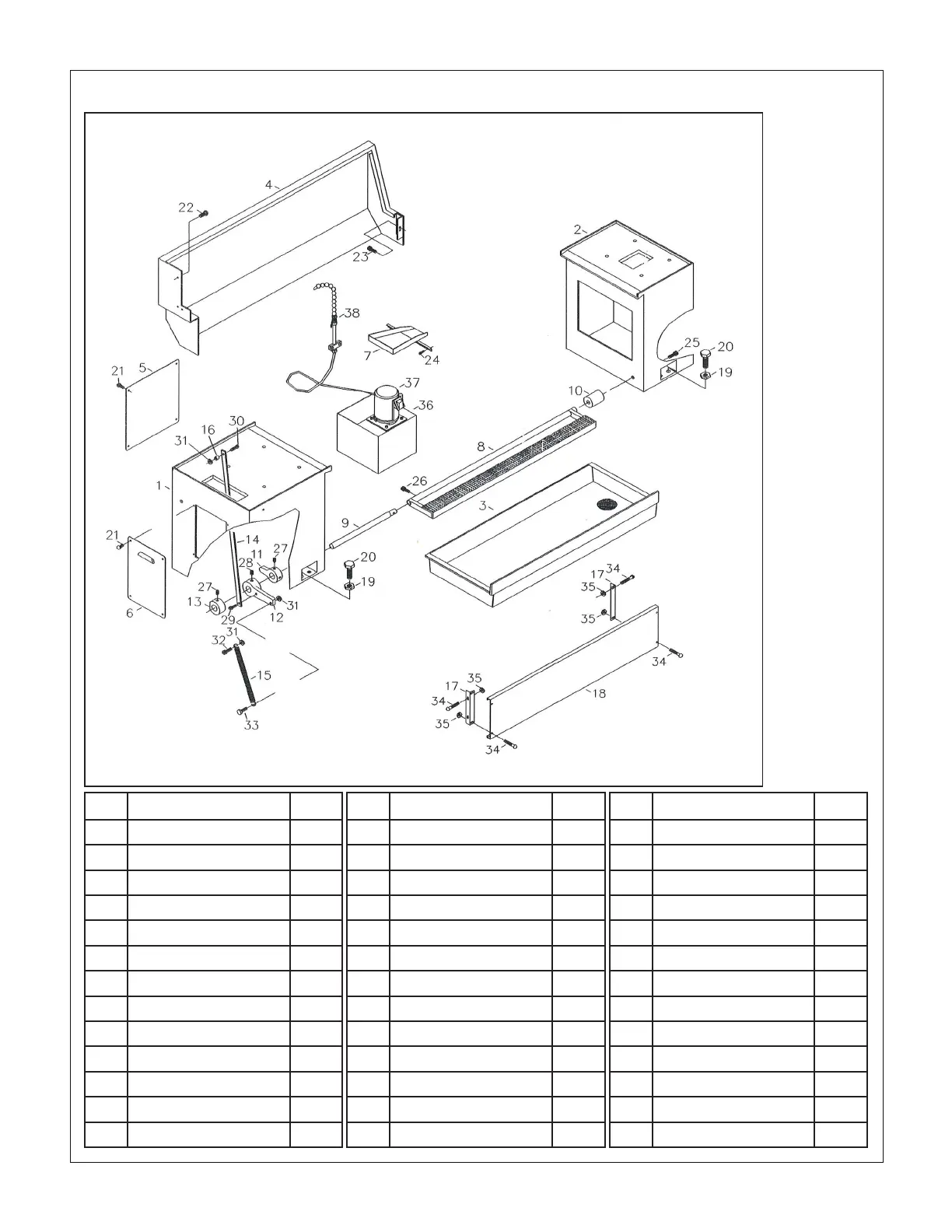

CABINETS, PANELS & COOLANT SYSTEM Fig 1
Dimensions in millimeters
Ref Description Part
1 Left cabinet Z4737
2 Right cabinet Z4738
3 Chip tray Z4739
4 Splash guard Z4740
5 Rear cover plate Z4741
6 End cover plate Z4742
7 Coolant chute Z4743
8 Footbrake treadle Z4744
9 Footbrake connect shaft Z4745
10 Bushing Z4746
11 Lever Z4747
12 Lever Z4748
13 Collar Z4749
Ref Description Part
27 Set screw M I0 x 20 Z4763
28 Set screw M I0 x 40 Z4764
29 Cap screw M8 x 10 Z4765
30 Screw M8 x 10 Z4766
31 Nut Z4767
32 Cap screw M8 x 25 Z4768
33 Screw M8 x 30 Z4769
34 Screw M6 x 16 Z4770
35 Nut Z4771
36 Coolant tank Z4772
37 Coolant pump, 1/8 HP Z4773
38 Coolant hose assembly Z4774
13 Set screw M6 Z4534
Ref Description Part
14 Brake pull bar Z4750
15 Expansion spring Z4751
16 Washer Z4752
17 Support bracket Z4753
18 Front panel Z4754
19 Nut Z4755
20 Screw 1/2" x 2" Z4756
21 Screw M6 x 12 Z4757
22 Cap screw M6 x 12 Z4758
23 Cap screw M8 x 20 Z4759
24 Cap screw M6 x 16 Z4760
25 Cap screw M8 x 20 Z4761
26 Cap screw M8 x 20 Z4762
There may be detail dierences
between this representative drawing
and the machine as supplied
