33
Copyright © 2020 Quality Machine Tools, LLCPM-1440GT v9 2020-10

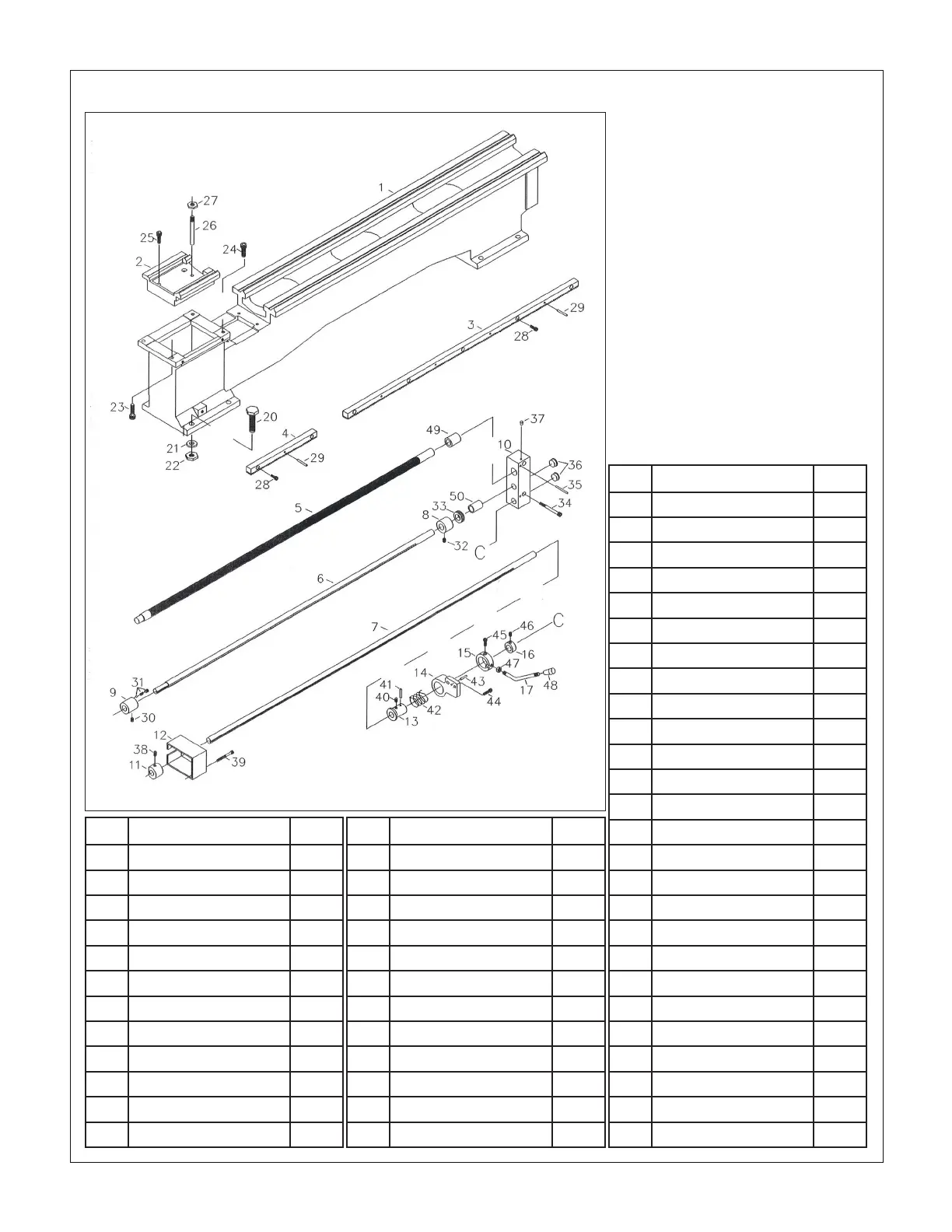

LATHE BED COMPONENTS Fig 2
Dimensions in millimeters
Ref Description Part
1 Bed Z4775
2 Gap ller Z4776
3 Rack, long Z4777
4 Rack, short Z4778
5 4 TPI leadscrew Z4779
6 Feed shaft Z4780
7 Motor control shaft Z4781
8 Bushing Z4782
9 Bushing Z4783
10 End block Z4784
11 Collar Z4785
12 Switch box Z4786
Ref Description Part
13 Collar Z4787
14 Motor control bracket Z4788
15 Collar Z4789
16 Collar Z4790
17 Motor control lever Z4791
20 Cap screw 1/2-13 x 2" Z4792
21 Washer Z4793
22 Nut Z4794
23 Cap screw M10 x 40 Z4795
24 Cap screw M10 x 35 Z4796
11 Lever Z4747
12 Lever Z4748
Ref Description Part
25 Cap screw M10 x 35 Z4797
26 Taper pin Z4798
27 Nut Z4799
28 Cap screw M6 x 20 Z4800
29 Pin 5 x 28 mm Z4801
30 Set screw M8 x 12 Z4802
31 Steel ball & spring pair Z4803
32 Set screw M8 x 10 Z4804
33 Thrust bearing 51104 Z4805
34 Screw M8 x 60 Z4806
35 Pin 5 x 50 mm Z4807
36 Plug Z4808
37 Plug Z4809
38 Set screw M8 x 10 Z4810
39 Cap screw M6 x 16 Z4811
40 Set screw M6 x 16 Z4812
41 Pin 5 x 28 mm Z4813
42 Spring Z4814
43 Pin 5 x 28 mm Z4815
44 Cap screw M6 x 20 Z4816
45 Cap screw M6 x 10 Z4817
46 Set screw 8×8 Z4818
47 Nut Z4819
48 Knob Z4820
49 Bushing Z4821
50 Screw M6×16 Z4822
There may be detail dierences
between this representative drawing
and the machine as supplied
