34
Copyright © 2020 Quality Machine Tools, LLCPM-1440GT v9 2020-10

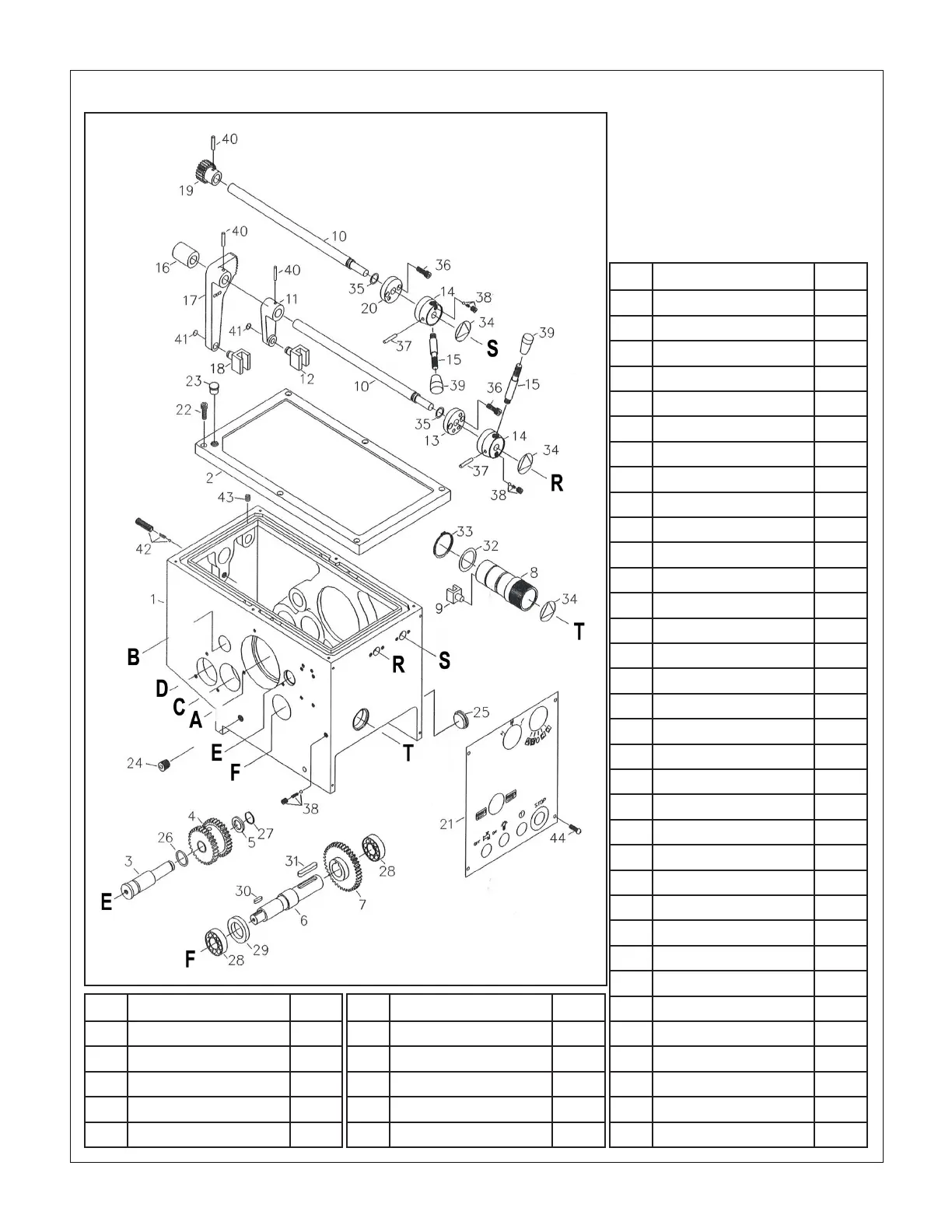

HEADSTOCK BODY & CONTROLS Fig 3
Dimensions in millimeters
Ref Description Part
1 Headstock casting Z4823
2 Headstock cover Z4824
3 E Shaft Z4825
4 Gear M2: 42T+42T, Z4826
5 Washer Z4827
Ref Description Part
6 F Shaft Z4828
7 Gear M2: 42T Z4829
8 Feed dir'n control T Z4830
9 Shift fork Z4831
10 Shaft Z4832
Ref Description Part
11 L-M-H shift arm Z4833
12 Shift fork Z4834
13 Flange Z4835
14 Hub Z4836
15 Lever Z4837
16 Bushing Z4838
17 1-2-3-4 shift arm Z4839
18 Shift fork Z4840
19 Gear M1.5: 22T Z4841
20 Flange Z4842
21 Front panel Z4843
22 Cap screw M6 x 25 Z4844
23 Filler plug Z4845
24 Drain plug Z4846
25 Sight glass Z4847
26 O-ring Z4848
27 Retaining ring Z4849
28 Ball bearing 6005 Z4850
29 Oil seal 30 x 47 x 8 Z4851
30 Key 5 x 18 mm Z4852
31 Key 8 x 45 mm Z4853
32 O-ring Z4854
33 Retaining ring Z4855
34 Indicator disk Z4856
35 O-ring Z4857
36 Cap screw M6 x 16 Z4858
37 Roll pin 5 x 40 mm Z4859
38 Ball-spring-screw Z4860
39 Knob Z4861
40 Roll pin 5 x 25 mm Z4862
41 Retaining ring Z4863
42 Ball-spring-screw Z4864
43 Set screw M6 x 8 Z4865
44 Screw Z4866
There may be detail dierences
between this representative drawing
and the machine as supplied
