PM-833TV SPECIFICATIONS
Dimensions
Weight, including stand 880 lb net,1030 lb shipping
Floor space required W 72 in. x D 35 in
Headroom required Normal operations 75 in. (max height 86 in)
Stand footprint W 17-3/4 in. x D 29-3/4 in.
Tray W 24-1/2 in. x D 30 in.
Electrical
Power requirement 220 Vac, 60 Hz, 1Ø
Full load current 9A, spindle motor only
Motors
Main (spindle) Cap-start induction: 2 HP (1.5 kW), 1720 rpm
X-axis power traverse (option) Gear motor: 110 Vac 1A
Z-axis power elevation (option) Gear motor: 110 Vac 1A
Headstock
Vertical travel* 17-1/2 in.
Left-right tilt 90 degrees clockwise/counter-clockwise
Spindle
Speeds (rpm) 50 to 3200
Internal taper R8
Top end 6 splines, 28 mm OD
Quill travel 4 in.
Quill diameter 3 in.
Spindle nose to table 19-1/2 in. max
Spindle centerline to column 11-3/4 in.
Drawbar 7/16 - 20
Table
Size W 33 in. x D 8-1/4 in.
Surface height over oor, on stand Approx 39-3/4 in.
Maximum load 400 lb, table-centered, less if overhanging
Acme, inch pitch, 10 tpi
Left-right table traverse (X-axis)* 22 in.
Front-back cross travel (Y-axis)* 10-3/4 in.
T-slots (3) 16 mm wide (5/8 in. nominal), pitch 2.22 in.
* DRO installation may limit these numbers. Ceiling height may limit the max
elevation of the headstock, also max distance from spindle nose to table
(overall height of mill at 14" elevation of headstock is approximately 86".

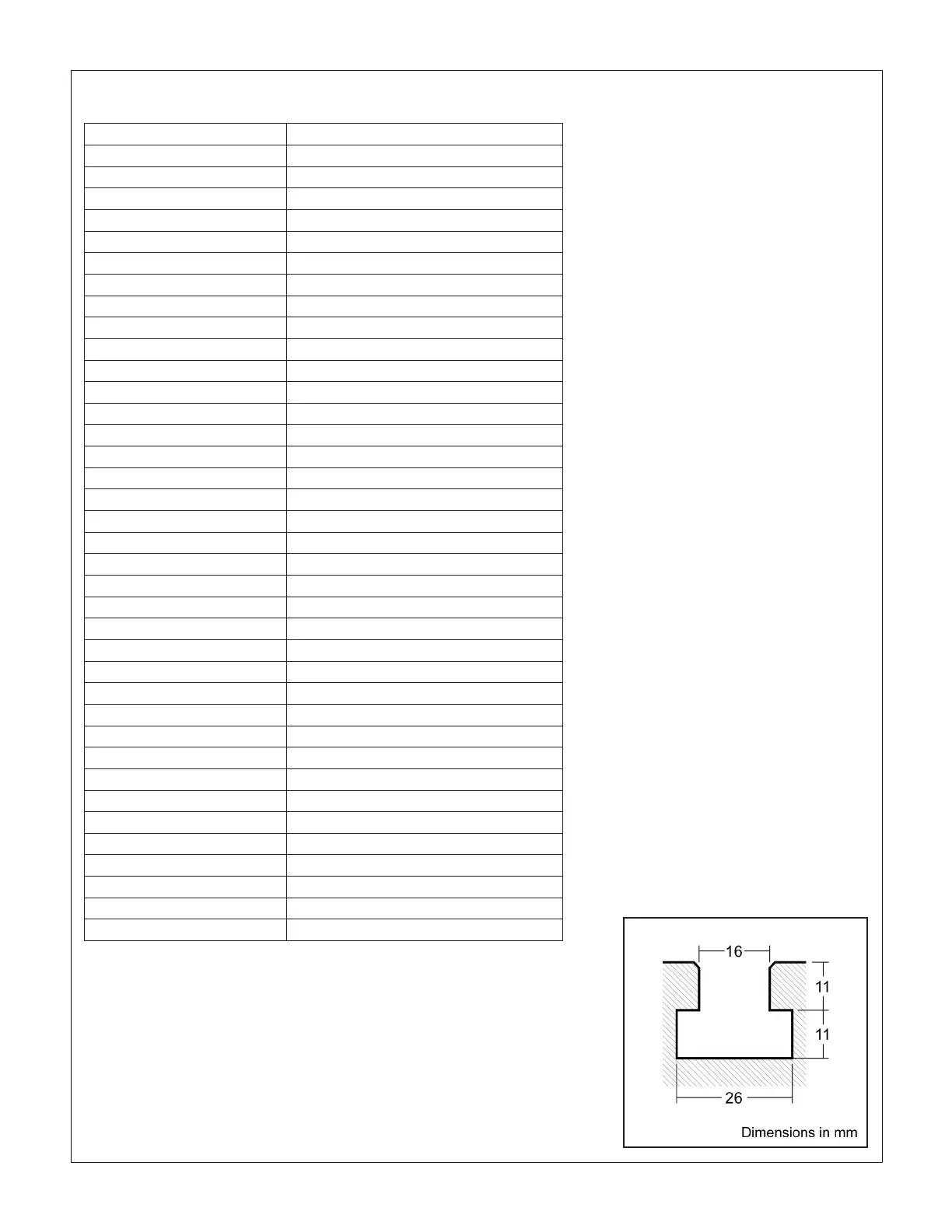

T-slot dimensions
