Section 5 PARTS
This drawing and the components list
on the following page are representa-
tional only. There may be dierences be-
tween this information and your machine,
especially if the X-axis and Z-axis power
options are installed.

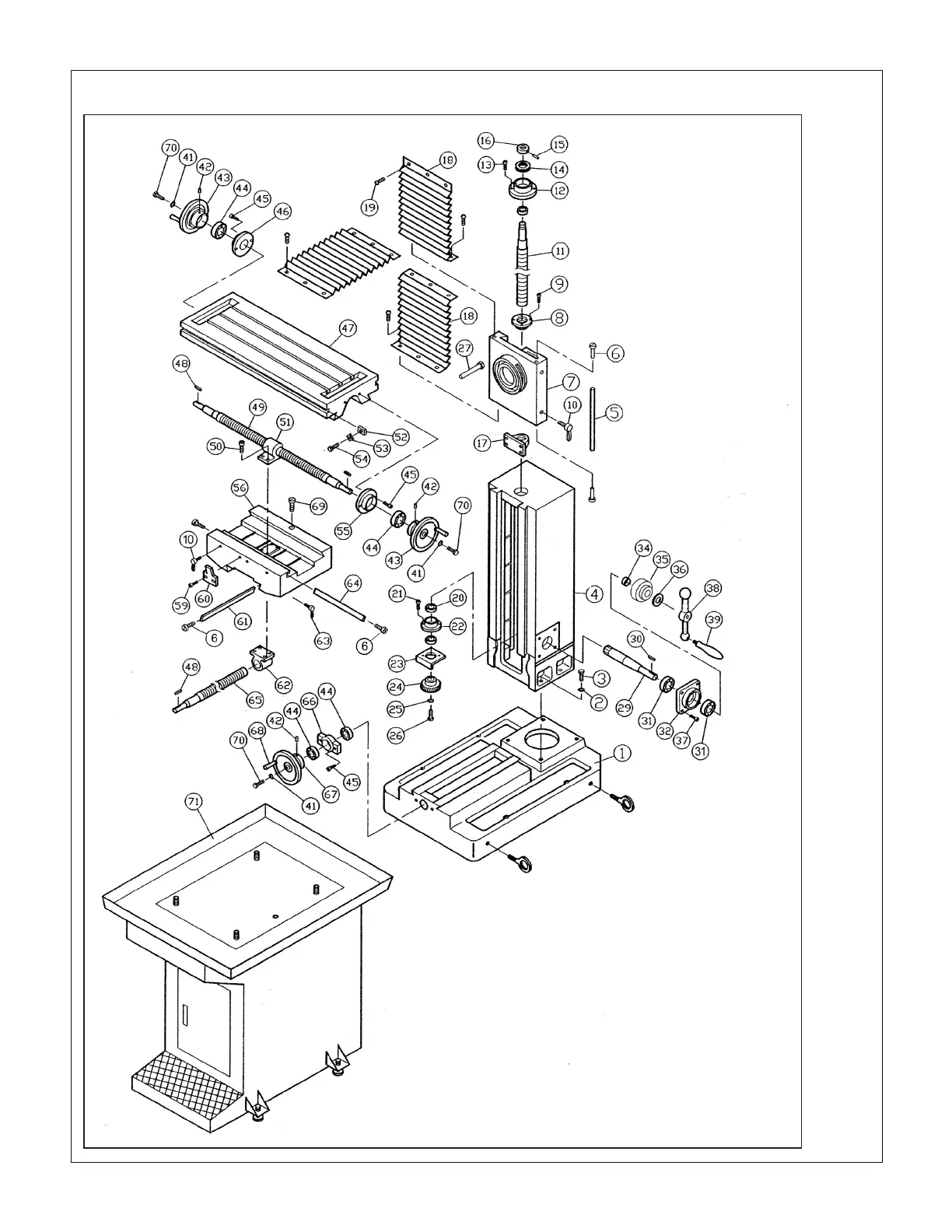

TABLE, COLUMN & BASE COMPONENTS Fig 1
