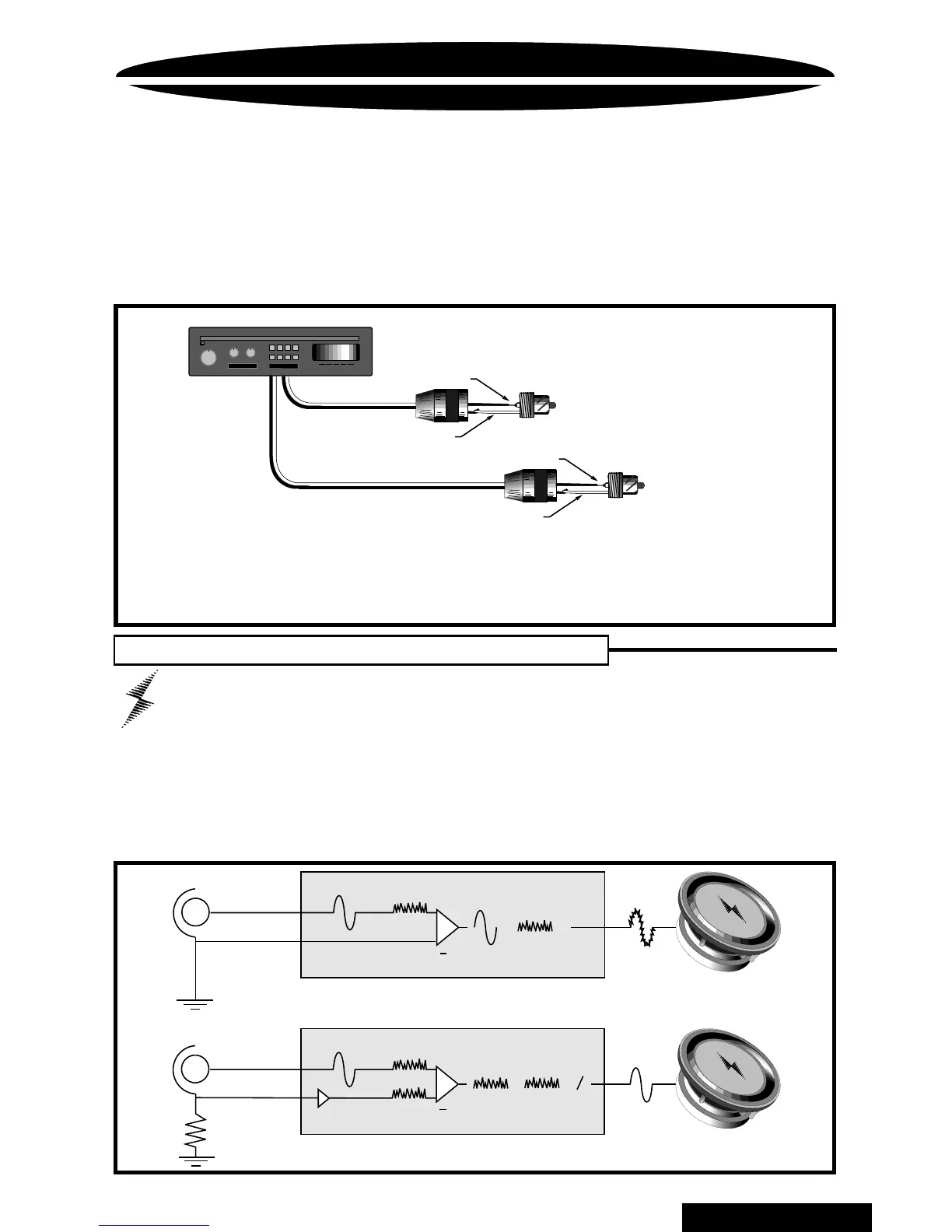

There are two sets of RCA jacks on the front end of your
amplifier. The RCA cables from your head unit go in the set
labeled INPUTS. If your head unit doesn't have RCA outputs
don't worry. Simply add a set of RCA plugs (available at your
dealer) to your front or rear set of speaker leads (see drawing
below), plug them into the input jacks, and push in the -12dB
input attenuation switch.
Balanced Differential Inputs
This circuitry reduces noise radiated into your
signal cables by up to 40dB. This is equivalent to a noise
reduction of approximately one hundred times what the noise
level would be without this circuitry. It provides all the benefits
of a true 'balanced' line without the need of any special cables
(see diagram below). This type of input works with any
conventional RCA cable.
(+) Positive
(-) Negative
LEFT input
(+) Positive
(-) Negative
RIGHT inpu
eject
VOLUME
BASS
TREBLE
RIGHT
LEFT
BALANCE
TRACK
REVERSE
FOWARD
1
2
3
4
876
5
PPI
MAR KET
ING DPT
Trk 1
SOURCE Headunit
music
noise
( - = 0 )
noise cancels
music
NO noise
(+)
noise
( )
music
noise
( + =)
music noise
music
and noise
signal and ground
(+)
( )
11
INPUTS
WARNING:
If you are using a source unit with bridged high powered (or
"floating ground") speaker outputs, a suitable high to low level adapter must be
used. If you are unsure about your head unit see your local PrecisionPower
dealer or call 1-800-62Power
